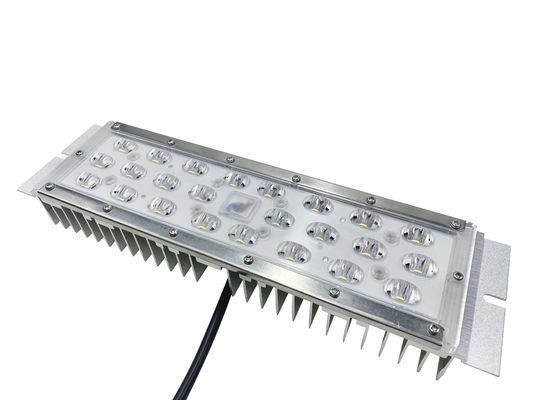

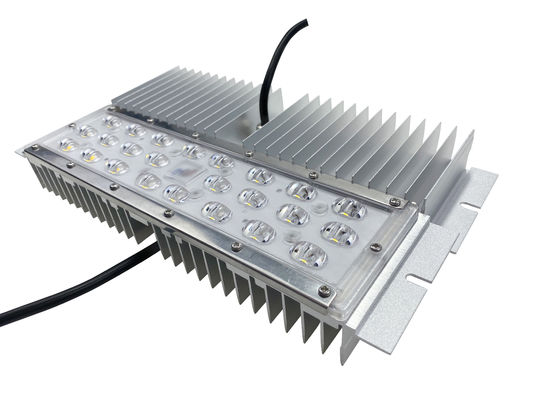

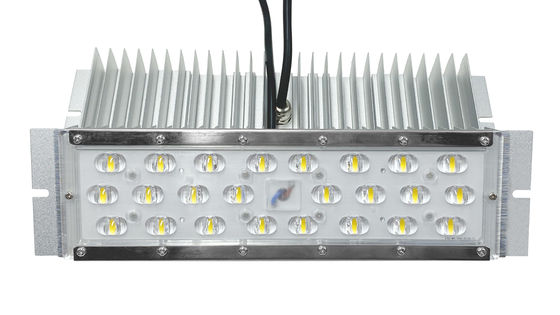

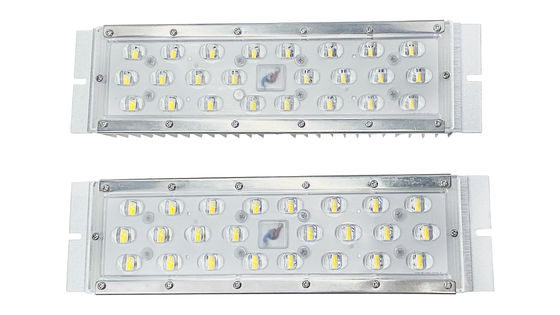

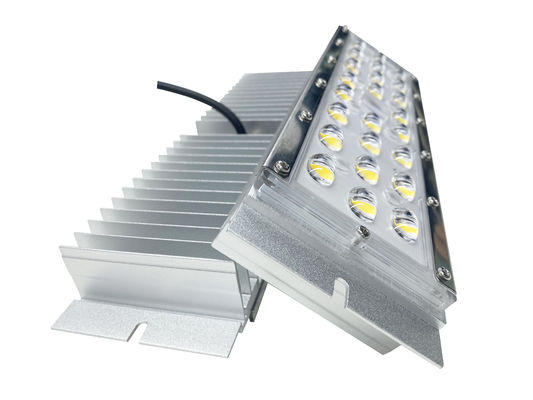

CE RoHS IP66 Luxeon 5050 SMD LED Module 50W 170LM / W for Street Light

CE RoHS IP66 Luxeon 5050 SMD LED Module 50W 170LM / W for Street Light

Specification:

	Product Characteristics
	Model No.	LY-ST53050P/WW
	Power	30W/40W/50W
	LED Chip	Luxeon 5050
	Luminous Efficiency	160-170lm/w
	IP Rating	IP65
	Beam Angle	150*70°
	LED qty	24pcs
	Voltage DC	42-45V
	CCT	2700K-6500K

Product Description:

Outlook:

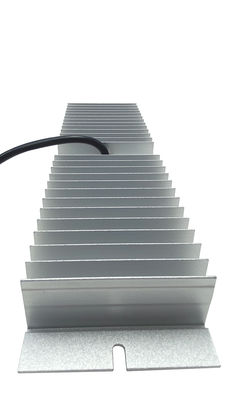

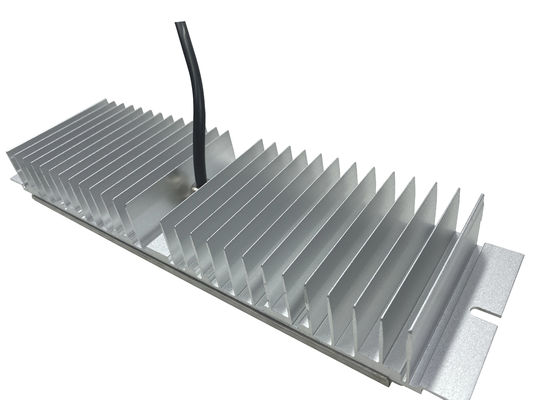

Heatsink

6063 aluminum heatsink.

Fin heat sink to ensure maximum heat transfer

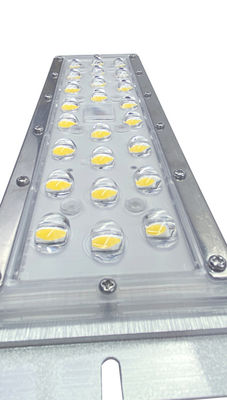

LED & Optical Assembly

Precision refractive optical lens special designed for road lighting.

Utilizes high brightness leds , 70 CRI at  5000-6000K

Modular LED Light Advantages:

• Convection heat radiation design, deduce light decay and prelong life span, CHEM module, easy replacing.High luminous efficiency
• 24PCS SMD 5050 LED inside,High efficiency.
• Adoption patent optical lens with high light transmittance up to 98%,No glare,No RF interference.
• Excellent heat dissipation design.
• Easy to assemble and costs less for replacing.
• Total Lumen 8400-8500LM,lumens efficiency is up to 150/W..
• Convection heat dissipation system ensure LED long life span.
• Several led chips available, easy selection with your goal.
• Unique aluminium heatsink greatly reduce product weight and guarantee the safety usage,
• This new heatsink significantly increase the efficiency of  thermal conduction with less material usage and more saving on energy. It is the best solution of LED street light.

Package

1 Inner Carton = 2 Set Weight:1.2KG

1 Outer Carton= 40 Set Weight:25.0KG

Inner Carton Size : 306mm X 83mm X 67mm

Outer Carton Size : 365mm X 322mm X 354mm

Remark

1. The led module adopt special techniques to keep enough light efficiency, please do not open the light engine ,otherwise there won’t have repairing guarantee.

2. When customers in the process of matching the power supply,please match with the surge protector to ensure the safety.

3. The radiator has its own design peak, please do not exceed the maximum use of current so that ensure the light efficiency and lumen.

4. All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp .

Trade terms

Payment: T/T, western Union or Paypal
Shipping: By Express(EMS, DHL, UPS etc), By Air or By Sea
Delivery time: 7-15 working days for normal orders.
Port: Shenzhen, China

Our service

1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area, ideas of design and all your private information.
