Professional 150W Exterior LED Street Lighting for Passway , High Brightness

Professional 150W Exterior LED Street Lighting for Passway , High Brightness
Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness Professional 150W Exterior LED Street Lighting for Passway , High Brightness

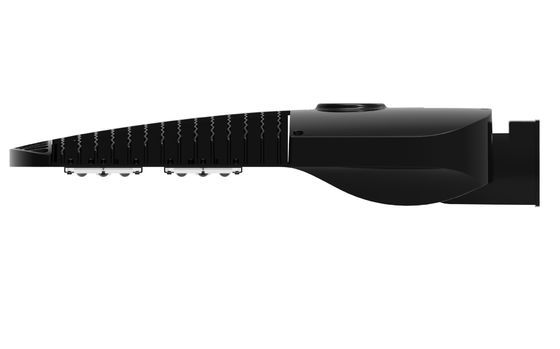

Large Image :  Professional 150W Exterior LED Street Lighting for Passway , High Brightness

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: CE RoHS
Model Number: LY-ST10150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 5-7 days for samples
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Detailed Product Description
Power: 150W LED Chip: Lumileds 5050 SMD
LED Driver: Meanwell HLG-150 IP Rating: IP65
CCT: 2700-6500K Warranty: 5 Years
Beam Angle: 150X65degree Package: 75cm×40cm×23cm (2 PCS )
GW: 9.6kg Luminous Flux: 24000lm
Dimmable: YES&NO CRI: >80
Pole Diameter: 60mm
High Light:

outdoor led street light

,

led street lamp

Professional 150W Exterior LED Street Lighting for Passway , High Brightness





Product Description:


  • LUXEON/LEYOND 5050 chip, Meanwell driver, IP65, 5 years warranty,160lm/w;
  • Power: 30w/40w/50w/60w100W/120W/150W. High quality low price than others;
  • Patented design, unique outlook, less competition;
  • Super light weight, save your frieght cost;
  • Support Photocell Sensor/Solar Systerm/0-10v dimming. Smart and more energy saving



Specification:



Model Number

LY-ST20150PW

Electrical Specifications

LED QTY

 72PCS

Total Power Consumption

150W

Operation Voltage

100-240VAC

Operating Humidity

20%~90%

Working Temperature

-20 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.88

Photometric Specifications

LED Luminous Flux

24000lm

Led Luminous Efficiency

>160LM/W

CRI

Ra ≥ 70

LED Color

2700k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

5Years

Heat Radiator

die-casting aluminum

Lens

optical PC

Fixture Dimension

642X290X120mm

Fixture Weight

8.2kgs



Packing Information

Packing Type

2unit /ctn

Packing Dimension

71*34*37cm

Packing Weight

17.2kgs





led street lighting series



Model Power Lumens LED Chip Driver Input Voltage
LY-ST20030-XX 30W 3600lm 30pcs Lumileds 3030 Meanwell HLG-40 AC95-305V
LY-ST20040-XX 40W 4800lm 30pcs Lumileds 3030 Meanwell HLG-40 AC95-305V
LY-ST20050-XX 50W 6000lm 30pcs Lumileds 3030 Meanwell HLG-60 AC95-305V
LY-ST20060-XX 60W 7200lm 30pcs Lumileds 3030 Meanwell HLG-60 AC95-305V
LY-ST20100-XX 100W 12000lm 90pcs Lumileds 3030 Meanwell HLG-100 AC95-305V
LY-ST20120-XX 120W 14400lm 90pcs Lumileds 3030 Meanwell HLG-120 AC95-305V
LY-ST20150-XX 150W 18000lm 90pcs Lumileds 3030 Meanwell HLG-150 AC95-305V
LY-ST10030-XX 30W 4800lm 30pcs Lumileds 5050 Meanwell HLG-40 AC95-305V
LY-ST10040-XX 40W 6400lm 30pcs Lumileds 5050 Meanwell HLG-40 AC95-305V
LY-ST10050-XX 50W 8000lm 30pcs Lumileds 5050 Meanwell HLG-60 AC95-305V
LY-ST10060-XX 60W 9600lm 30pcs Lumileds 5050 Meanwell HLG-60 AC95-305V
LY-ST10100-XX 100W 16000lm 72pcs Lumileds 5050 Meanwell HLG-100 AC95-305V
LY-ST10120-XX 120W 19200lm 72pcs Lumileds 5050 Meanwell HLG-120 AC95-305V
LY-ST10150-XX 150W 24000lm 72pcs Lumileds 5050 Meanwell HLG-150 AC95-305V





Features:



1) 160-170lm/w on the Luminaire,black polish shining housing,IP66 rated.
2) Independent model design, 30w/40w/50w/60w/100w/120w/150w available.
3) Lumileds 5050 LEDs inside,plus Meanwell HLG driver,5 years warranty.
4) Wide Beam Angle:150°x70
5) Modular design,Easy Replacement,good heat dissipation,Small size,light weight,competitive price.
6) Grey & Black Housing,flexible chosen.
