|LED Driver:||Meanwell/Sosen||IP Rating:||IP50|
|CCT:||2700-6500K||Beam Angle:||120 Degree|
|Material:||Aluminum+PC Optical Lens||CRI:||>70|

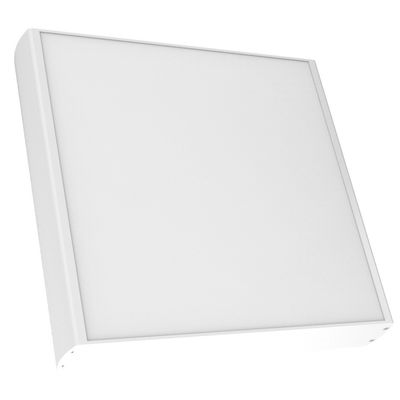

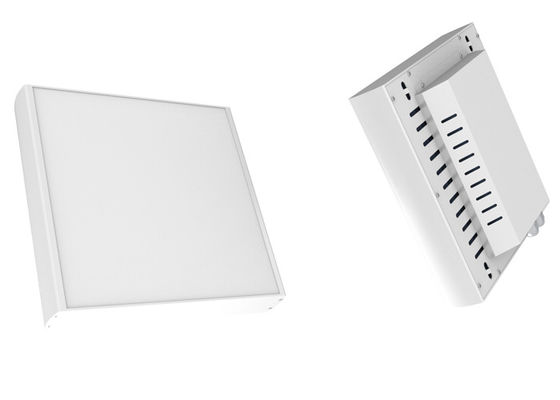

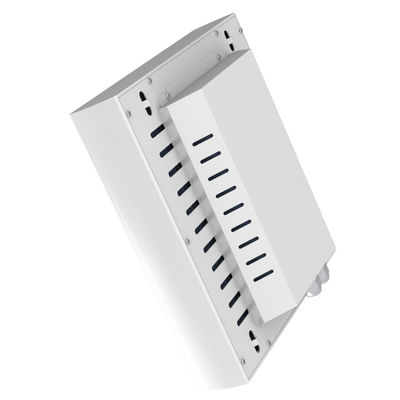

Warm White CRI>70 PC Cover LED Low Bay Lights 3030 Chips Meanwell Driver
|Model||Power||Input Voltage||Luminous Flux||LED Type||LED QTY||System Efficiency|
|LY-HB56150XX||150W||AC 100V~240V 50/60Hz||18750 lm||LUXEON 3030||200 PCS||>90%|
|Driver||Beam Angle||CRI||CCT||Meterial||Product Size||Net weight|
|Meanwell CLG 150 / ELG 240||120°||>70||PW:5000~6500K WW:2700~3200K NW:4000~4500K||Aluminum+Acrylic||330x328x100mm||5.3kg
1) Perfect mounted in high location on warehouse/parking place/workshop,etc.
2) Lumileds chips plus Meanwell driver, UGR:18, 5 years warranty.
3) 1-10V Dimmable and microwave motion sensor both available.
4) Lock catch and chain as standard equipped for installation.
Assembly and Installation
Blue : Neutral
Brown : Line
Yellow-Green : Ground
·Carton Size: 390mm×390mm×160mm
·Net weight:5.3KG Gross weight:6.4KG
Carefully read the installation instructions and ensure the mains supply is isolated before installation. Please follow the safety information overleaf before carrying out any installation. Please retain this lealet for future reference.
Carefully remove the Low Bay and chain from the packaging. Install the chain onto the eye bolts
on the back of the Low Bay light.
Mount the Low Bay light to the ceiling using a mounting hook and suitable suspension kit.
Secure the supply cable using suitable clips. Ensure that the cable is not touching the body of the Low Bay light .
Connect the cable to the mains as per the illustration below
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operation and Storage Condition
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz
3) Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 5~12m height.
