Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w

Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w
Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w

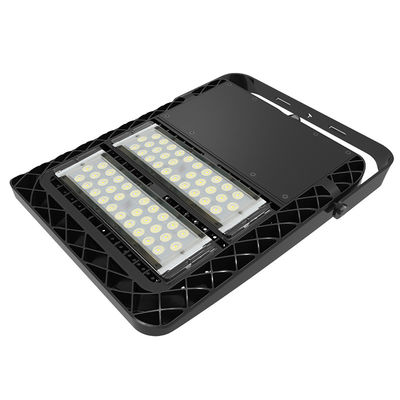

Large Image :  Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w

Product Details:

Place of Origin: GuangDong,China
Brand Name: Leyond-240W Stadium LED Flood Light
Certification: CE,ROHS
Model Number: LY-ST30240PW

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: Negotiable
Packaging Details: 67x47x32cm, 21kg, 2pc/CTN
Delivery Time: sample:3-5working days, bulk order:10-15working days after received the payment
Payment Terms: T/T, Western Union、PayPal
Supply Ability: 20000pc/month
Detailed Product Description
Power: 240W LED Chip: LUXEON 5050
Light Efficiency: 160lm/w Beam Angle: 25/60/90degree
LED Driver: Meanwell Warranty: 5 Years
IP Rating: IP65 Material: Die-cast Aluminum
High Light:

led stadium lighting

,

high power led floodlight

Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w



Features:



1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.



2. There are 25°,60°, 90° beam angle options for the Lens.



3. High luminous efficiency,Whole lamp output light effiency >160LM/W.



4. Die-cast aluminum with Good heat dissipation



5. World top class Meanwell Driver, 5 years warranty



6. IP66 waterproof design for outdoor application.



Model
LY-ST30240XX
Power
240W
Input Voltage
AC100-240V 50/60HZ
Luminous Flux
38400lm

CRI

>70
CCT
WW:2700-3000K/NW:4000-4500K/PW:5000-6500K
Chip Brand
LEYOND/LUXEON  5050
LED Driver
MEANWELL   HLG-240H/ELG-240
Beam Angle
25°/60°/90°
IP Rating
IP65
Warranty
5 years


Power Supply:



Driver brand: Meanwell HLG/CLG Series
Ac input voltagerange 90-305VAC/350VAC/480VAC,127-431VDC
Power factor >0.95
Driver Safety standards Passed UL8750,TUV EN61347-1,EN61347-2-13,PSE J61347-1,J61347-2-13,UL8750 list,UL60950-1,EN60950-1
Protection function Short circuit, overload, over voltage, over temperature
Emc standard EN55015,EN55022 class B,EN61000-3-2 class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11,EN61547
Drive IP IP65
Housing Material Aluminum

Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w 0
Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w 1
Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w 2
Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w 3
Operation and Storage Condition
· Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
· Input Voltage 100~240V AC, 50/60Hz
· Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%

Package
Inner box Size: 650mm×455mm×150mm
Outer box Size: 670mm×470mm×315mm (2 PCS)



Waterproof 240w Led Sports Field Lighting / Led Stadium Floodlights High Efficiency 160lm/w 4




Hot Selling:



led billboard light slim led floodlight stadium led flood light led module light ufo high bay light
24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light
led high bay light led flood light led low bay light led canopy light ipad led floodlight
24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light 24000lm high efficiency 150w modular flood light SMD 5050 led outdoor flood light







Assembly and Installation
·Assembly-Electricity
1) AC100-240V
· Blue : Neutral
·Brown : Line
·Yellow-Green : Ground


Quality Warranty:
• Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
