Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Good quality High Power LED Flood Light for sales
Good quality High Power LED Flood Light for sales
The other two pictures are from yesterday evening, both courts are fitted with your lights now and everybody is happy with them, expect the electricit

—— Mr.Simon Haussmann

I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

China Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66 supplier
Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66 supplier Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66 supplier

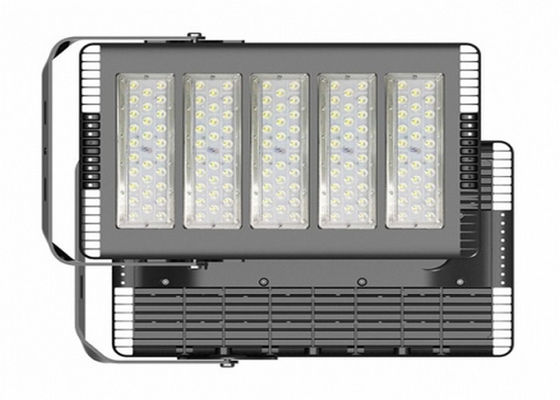

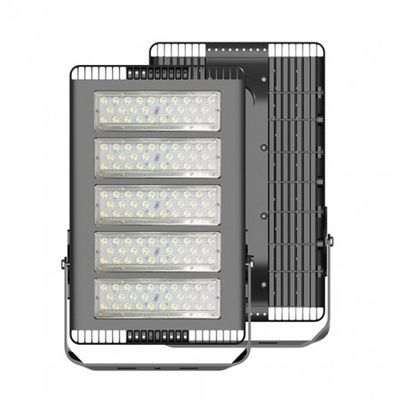

Large Image :  Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: EMC,LVD, RoHS
Model Number: LY-ST30240-XX

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: negotiable
Packaging Details: Standard Plain Carton Package
Delivery Time: 7-15 working days
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 30K/month
Contact Now
Detailed Product Description
Material: Aluminum+PC Cover Chip Brand: Luxeon 5050
Driver Brand: Meanwell Warranty: 5 Years
Luminous Efficiency: 160lm/W CRI: >80
IP Grade: IP66 Beam Angle: 25/60/90 Degree
Input Voltage: 90-260V AC

IP66 Modular Flood Light mounted in Stadium,Lumileds 5050 Chips160lm/w,5 years warranty


1. Features:

  • Patent Anti-glare PC cover, transimittance 90%.
  • Modular design, can work and replaced seperately. Lower the maintaining cost.
  • Teflon wire inside,3*1m2 cable
  • Thermal grease conductivity>3.8. good thermal function.
  • CRI 80 to meet different project requet
  • Power 240w/480w can be choose.
  • Fast delivery time 5-10 days.

2.  Technical parameter:


Model modules number Power Input Voltage Input Current Power factor Power efficiency
LY-ST30240-PW             5  240W   AC90~305V
    50/60Hz
1.86A/220VAC   >0.95           >90%
  1. Photometric Specifications:
Model modules number Power Luminous flux Luminous  efficiency CRI CCT BeamAngle
LY-ST30240PW           5 240W        38400lm       160lm/W   >80

3000K
4000K  4500K
5000K  5700K

6000K


35°
60°

90°
  1. Mechanical Specifications:
Model modules number Power    Carton Size gross weight Net Weight IP Rating Meterial
LY-ST302400PW          5 240W 540X340X67MM      12kg    10.5kg    IP66 Aluminum +PC


Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66


Hot Sales Modular LED Flood Light for Stadium Lumileds 5050 Chips 160lm/W IP66

                                           The modualr stadium light mounted at a sport center

3. Advantages:

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 25°, 60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >130LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

4. FAQ:

1. How many watt you have for high power led high bay light?
      ----  50w/60/90w/100w/120w/150w/180w/200w/250w/300w/400w/500w.

2. How is the warranty?
       ----We could offer 5 years warranty, and during our warranty:

   1).  Products returned within the warranty period must be Leyond product number & date code.
   2). Products of unknown sources or without valid marking will not be accepted.
   3). Replacement items will be sent together with customer's next order shipment.

3. How is the payment term?
         ----30% T/T in advance, 70% balance before shipment. P.S: T/T, Paypal, Wester Union are OK!
4. How is the lead/production time?
            ----7~15 days (It depends on the qty of the order)
5.   Could you accept OEM?
         ------We accept OEM. OEM box, OEM sticker
Welcome to contact us for more details.
