160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver
160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver 160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

Large Image :  160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE RoHS
Model Number: LY-ST40100-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: 90-100USD/pcs
Packaging Details: Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 6,000 pcs/month
Detailed Product Description
Item: Spiderman Led Street Light 100w LED Source: Lumileds/Briddgelux 5050
Power: 100w Luminous: 16000lm
Driver: Meanwell Driver Beam Angle: 150*70 Degree
CCT: 2700-6500K Lifetime: >50000 Hours
Control: Daylight Control, Motion Sensor IP Rated: IP66
Housing Material: Aluminum
High Light:

led roadway lighting

,

led street lamp

160lm/w die casting LED street light 100W parking lot light shoe box mount fixtures with meanwell driver


Features:




Model : LY-ST40100XX


Inptut voltage:      AC95V~240V 50/60HZ

Luminous flux:  16000lm
Chip Brand:  LUXEON 5050
Driver Brand:  Meanwell ELG-100
Beam Angle: 150*65°
Warranty: 5 years
CRI:  >70
Color Temperature: 2700-6500K

Luminous efficiency: 160LM/W


Lifespan: 50000hrs


IP Rating: IP65


Pole Diameter: 60mm

Package Size: 410*340*66mm
Net Weight: 6.3kg



Speficicaion:

1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.


2. Adopt famous Lumileds 5050 chip inside, high efficiency can up to 160 lm/w.


3. Die-casting housings, streamline heat sink with good heat dissipation


4. Meanwell HLG driver and offer 5 years warranty. Price is more competative than others on the market.


5. Short lead time, sample is 3-5 days; Bulk order is 10-15 days based on quantity. To be your firm supporter.


6. Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.

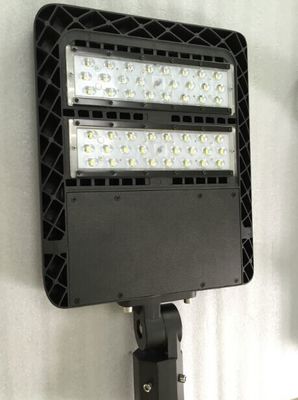

Product Picture:


160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver 0








Package:



Inner box Size: 670mmx370mmx100mm



Outer box Size: 690mmx385mmx240mm (2 PCS LED Street Light)


160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver 1









Mounting Section:





1)Slip Fitter Mount (square pole and round pole)



160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver 2





2) Trunnion





160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver 3



3) Pole Mount(square pole and round pole)



160lm/W Die Casting LED Street Lighting 100W Parking Lot Light Shoe Box Mount Fixtures With Meanwell Driver 4




Operation and Storage Condition:


• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%


• Input Voltage 90-305V AC, 50/60Hz


• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%


• Mounting Height : Suitable for 7-8M height




Our Services:


1. Factory price, large monthly output


2. 5 years warranty, high quality guarantee


3. Professional Export service, easy to communicate and save your much time


4. Timely delivery, let you win biggest markets advantage


5. Satisfied After-sales service, to be your reliable supplier


6. Any question will be get answer within 12 hours


7. R & D team, welcoem OEM and ODM order




FAQ:

Q1. Can I have a sample order for led light?



A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.




Q2. What about the lead time?



A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q3. Do you have any MOQ limit for led light order?



A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?



A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?



A: Firstly let us know your requirements or application.


Secondly We quote according to your requirements or our suggestions.


Thirdly customer confirms the samples and places deposit for formal order.


Fourthly We arrange the production.


Q6. Is it OK to print my logo on led light product?



A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?



A: Yes, we offer 5 years warranty to our products.
