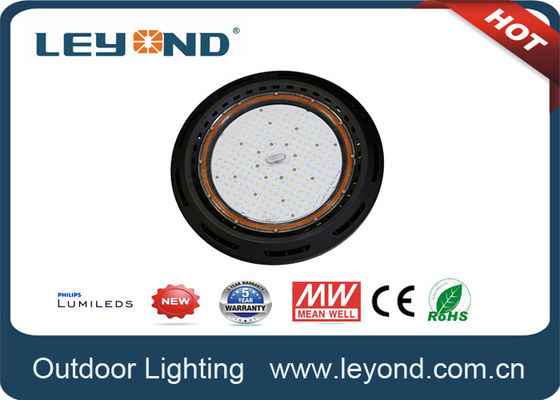

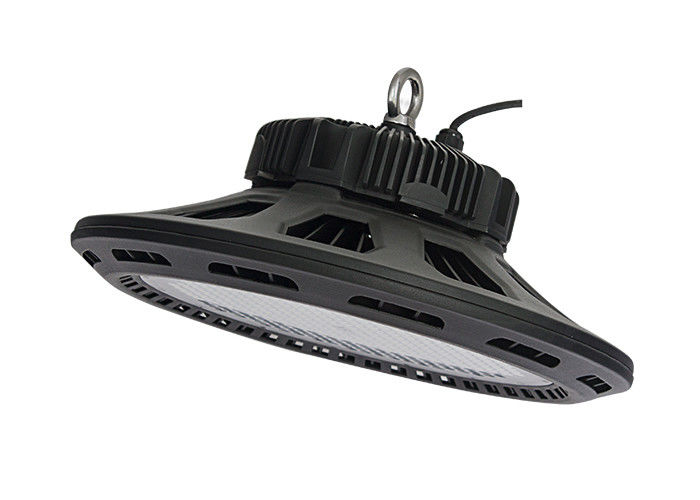

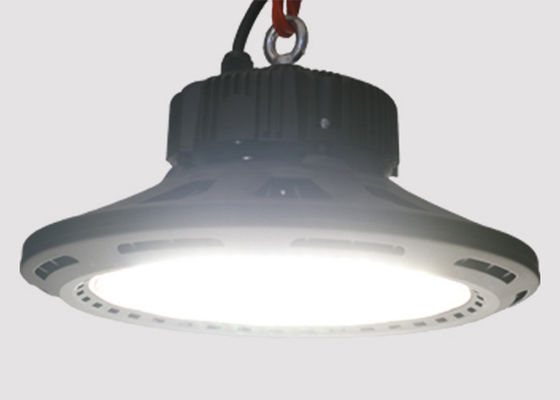

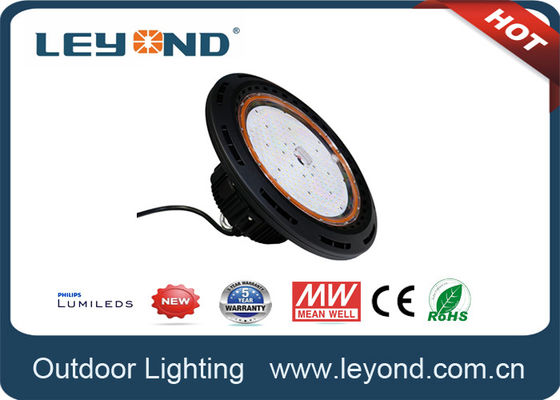

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application
Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application

Large Image :  Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE, LVD, EMC,RoHS
Model Number: LY-HB38150-XX (XX for CCT)

Payment & Shipping Terms:

Minimum Order Quantity: 2pc
Price: Negotiable
Packaging Details: Plain brown carton packing/customization available
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20,000Pcs/month
Detailed Product Description
Power: 150w (100w,200w,250w Available) Input Voltage: AC100-240V
LED Brand: Lumileds 3030 Chips Driver: Meanwell HBG Series
IP Rate: IP65 Protection Beam Angle: 60/90/120d
CRI: >80 Warranty: 5 Years
High Light:

led high bay lamps

,

high bay led lighting

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application



UFO High Bay Light 150w Features:

1) UFO design, lighter and nicer. Best for industrial lighting.(such warehouse,stadiums etc.

2) Brand Lumileds 3030 chip inside. High lumens output>120lm/w for whole lamp.

3) Top class Meanwell driver, high efficency. PF>0.95.

4) Rugged die-casting aluminium alloy body coated with black anti-corrision coating, excellent heat dissaption.

5) High brightness,luminaire 130lm/w, 100w/150w/200w/240w for application.
6) 60 /90 /120 degree beam angle for optional, light weight, easy assembly & installation.



Parameter

Part No. LY-HB38150-XX (XX for CCT)
Power 150watts
Inptut voltage AC100V~240V 50/60HZ
Lumens 18150lm
LED Source SMD3030
LED QTY 245pcs
LED Driver / MEAN WELL Brand
Beam Angle 60/90/120degree
CRI >80
Color Temperature 2700-3000K,4000-4500K,5000-5700K
Meterial Magnesium Aluminum + PC cover
Lifespan(hrs) 50,000hrs
IP Rating IP65 Protection
Product Size(mm) Φ330X194
NET Weight(KG) 3.5KG
Warranty 5 years



Pictures:

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 0

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 1

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 2

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 3

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 4

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 5

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 6

Aging Test:

100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 7Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 8Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 9

Instatllation Guide:

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 10

Application:

The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 11

Classical UFO High Bay Light 150w Lumileds 3030 chips,Meanwell Driver, industrial application 12

FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.


2. How many years warratny?
---5 years warranty, 50000 hours lifespan.


3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.

For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.


4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.


5. Can I add my Logo on the product label?
---Yes.


6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.



7. How many years are you do led lights business?

---10 years experiences since 2007.
