30-200w LED Street Lighting with / Bridgelux 3030/5050 chips

30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips
30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips

Large Image :  30-200w LED Street Lighting with / Bridgelux 3030/5050 chips

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Leyond
Certification: CE, RoHS, CB
Model Number: LY-ST10150PW

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: 79USD-125USD
Packaging Details: Foam inside, 1 pc per box, 2 boxes per carton
Delivery Time: 2-5 days for samples, 7-20 days for bulk orders
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 25000 pcs/month
Detailed Product Description
Housing Color: Black/Grey Wattages: 30W, 40W, 50W, 60W, 70W, 80W, 100W, 120W, 150W, 180W, 200W
Efficiency: 160-170 LM/W LED Chip: /Bridgelux Lumileds LUXEON 5050
Driver Brand: Meanwell/Sosen/Zhi He Size Of Product: 642*200*120mm
Warranty: 5 Years IP Rate: IP66
Lamp Body Material:: Aluminum+PC Working Temperature(℃):: -40 - +50℃
High Light:

outdoor led street light

,

led roadway lighting



Die-casting Aluminum Shell 160LM/W LED Chip SWORD Series 150W LED Street Light





Specification:


Item Number LY-ST10150PW
LED Power 150W
Input Voltage Meanwell  AC100-240V
LED Chip 5050 LEDs
LED Quantity >200pcs
Lumen 24000lm
Power Factor >0.95
Efficiency >90%
Beam Angle 150*65°
Color Temperature 2700-6500K (CCT)
Guard Level IP66
Lifespan 50,000hrs
Housing Material Aluminum Alloy
Product Dimension 642x290x120mm
Net Weight 8.8kg
Gross Weight 9.6kg







Features :



1. Absolutely unique mold,make your lighting special and fantastic.



2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the
brightness and illumination uniformity.



3. Anti-glare Lens and uniform light level to avoid any visual discomfort.



4. High quality power supply, input voltage 100-277V. The power efficiency is more than 90%,
power factor greater than 0.98.



5. Adopting 3030/5050 led light sources and LEYOND lens technology, 8% light
 efficiency higher than the same type lights in the market, higher light transmittance up to 98%.

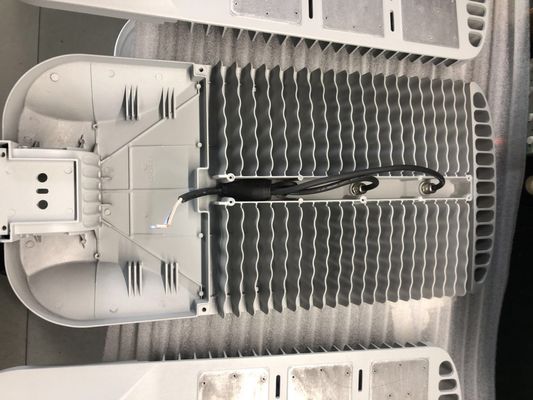

6. Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower
luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular
design, effectively reduce the following maintenance cost.





7. Durable lights with long life span up to 50000 hours; No need frequent replacements of lights
and regular maintenance.



8. Green environmental protection, no UV light and infrared radiation, no mercury pollution.



9. Nice appearance and non-fouling properties, Protection class IP66.



10. Work without strobe, fast transient response. A wide range of working voltage.











30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 0

30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 1

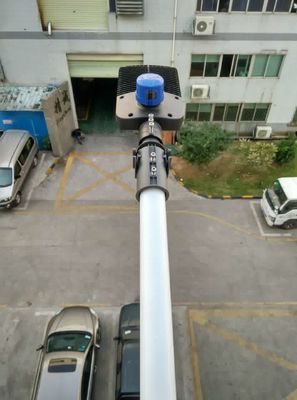

Application :



Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.



30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 2





Intensity Distribution Diagram :



30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 3

30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 4



Aging Testing :



As we know aging test is a critical insurance of the quality for led lights, so recently we just

introduced the auto aging test equipment which can make the test more accurate and effective .

More info as belowing :



Voltage testing

High,normal,low voltage testing

Temperature testing

High temperature

Lighting testing

ON and OFF testing

Moving testing

Base plate will recycle times and times

City power testing

Simulate the city power



30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 5





30-200w LED Street Lighting with  / Bridgelux 3030/5050 chips 6



Packing :

1.Inner box Size: 685mm×350mm×180mm
2.Outer box Size: 700mm×360mm×380mm (2 PCS LED Street Light)







Our services :



1.Factory price, large monthly output

2. 5years warranty, high quality guarantee

3. professional Export service, easy to communicate and save your much time

4.Timely delivery, let you win biggest markets advantage

5.Satisfied After-sales service, to be your reliable supplier

6. any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order



FAQ:



1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.



2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.



3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.



4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.



5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.



6. How long will the warranty period last?

A: We usually offer 3 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
