High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

Good quality High Power LED Flood Light for sales
Good quality High Power LED Flood Light for sales
I am very satisfied with your company in terms of quality.

—— Mr Frank Bruckner

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality. I hope that in two weeks

—— Ms.Valentina

The other two pictures are from yesterday evening, both courts are fitted with your lights now and everybody is happy with them, expect the electricit

—— Mr.Nico Haussmann

I'm Online Chat Now

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

China High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty supplier
High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty supplier High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty supplier High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty supplier High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty supplier High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty supplier

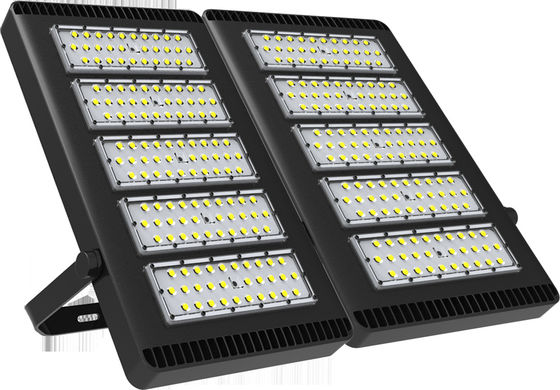

Large Image :  High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: EMC,LVD, RoHS
Model Number: LY-ST30240-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Standard Plain Carton Package
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Material: Aluminum+PC Cover Chip Brand: Luxeon 5050
Driver Brand: Meanwell/ PF: >0.95
Luminous Efficiency: 160lm/W CRI: >80
IP Grade: IP66 Beam Angle: 25/60/90 Degree
Input Voltage: 100-240V AC

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty



Led LED Stadium Light 240W:


1. Features:

  • Adoption LEYOND exclusive Lens with light transmittance up to 98%.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens,enhance
    the brightness and illumination uniformity.
  • There are 25°,60°, 90° beam angle options for the Lens.
  • High quality power supply, input voltage 100-240V. The power efficiency is more than
    90%, power factor greater than 0.98, UL compulsory certification.
  • CRI 80 to meet different project requet
  • Power 240w/480w can be choose.
  • No filament and glass frames, avoid break of the traditional lamp.without harm to the
    human body.

2. Application​:



It is applicable to playground lighting ,warehouse lighting, plaza lighting,tunnel lighting and so on.





3.  Technical parameter:


Model modules number Power Input Voltage Input Current Power factor Power efficiency
LY-ST30240-PW             5  240W   AC90~305V
    50/60Hz
1.86A/220VAC   >0.95           >90%
  1. Photometric Specifications:
Model modules number Power Luminous flux Luminous  efficiency CRI CCT BeamAngle
LY-ST30240PW           5 240W        38400lm       160lm/W   >80

3000K
4000K  4500K
5000K  5700K

6000K


25°
60°

90°
  1. Mechanical Specifications:
Model modules number Power    Carton Size Gross weight Net Weight IP Rating Meterial
LY-ST30240PW          5 240W 540x340x67MM      12kg    10.5kg    IP66 Aluminum +PC




4. Attentions:
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
If the new LED down light is found damaged, please keep the original package and
contact us.
In order to ensure the product work properly, please use the power supply within
indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant gasket or similar
materials.
1-10V dimming need to be customized

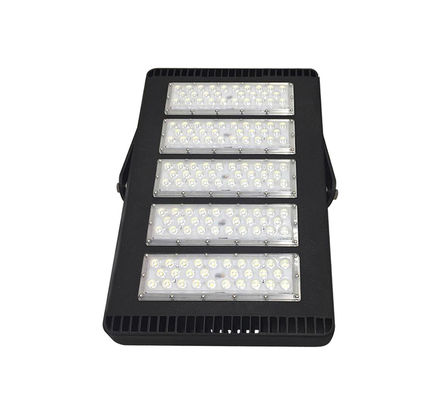

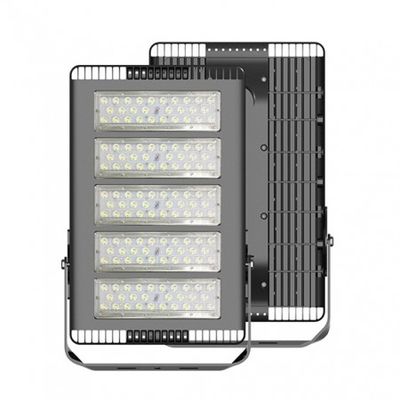

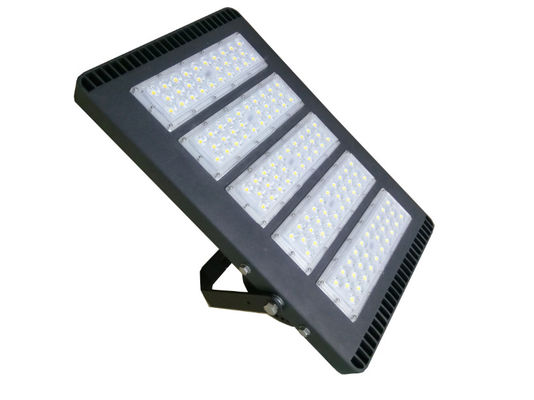

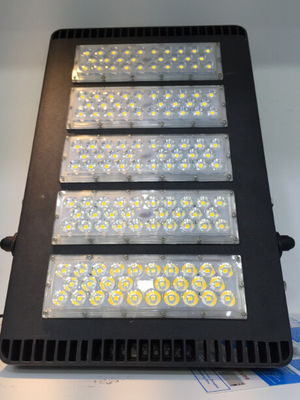

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty
High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty

High Power LED Stadium Light 240W Lumileds 5050 Chip CRI>80 5 Years Warranty
5. Advantages:

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 25°, 60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >130LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

4. FAQ:



1). How is the warranty?
       ----We could offer 5 years warranty, and during our warranty:

   1).  Products returned within the warranty period must be Leyond product number & date code.
   2). Products of unknown sources or without valid marking will not be accepted.
   3). Replacement items will be sent together with customer's next order shipment.

2).  How is the payment term?
         ----30% T/T in advance, 70% balance before shipment. P.S: T/T, Paypal, Wester Union are OK!
3).  How is the lead/production time?
            ----7~15 work days (It depends on the qty of the order)
4).   Could you accept OEM?
         ------We accept OEM. OEM box, OEM sticker
Welcome to contact us for more details.
