China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty

China China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty supplier
China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty supplier China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty supplier China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty supplier China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty supplier China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty supplier

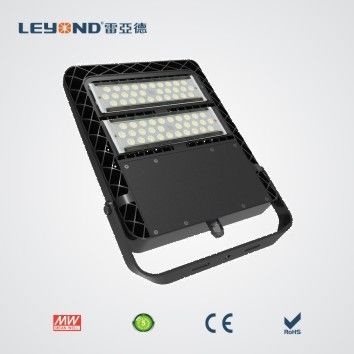

Large Image :  China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: EMC,LVD, RoHS
Model Number: LY-ST45100-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Standard Plain Carton Package
Delivery Time: 7-15 working days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Material: Aluminum+PC Cover Chip Brand: Luxeon 5050
Driver Brand: Meanwell Warranty: 5 Years
Luminous Efficiency: 160lm/W CRI: >70
IP Grade: IP66 Beam Angle: 25 / 60 / 90 Degree

Factory Price outdoor IP66 LED Stadium Floodlight Modular Design 160lm/w 5 Years Warranty


1. Specification:

  • Patent Anti-glare PC cover, transimittance 90%.
  • Modular design, can work and replaced seperately. Lower the maintaining cost.
  • Teflon wire inside,3*1m2 cable
  • Thermal grease conductivity>3.8. good thermal function.
  • CRI 80 to meet different project requet
  • Power 240w/480w can be choose.
  • Fast delivery time 5-10 days.

2.  Technical parameter:


Par NO

Parameter

LY-ST45080XX LY-ST45100XX LY-ST45120XX
Input voltage AC100V~240V 50/60HZ
System consumption(W) 80 100 120
Luminous flux(lm) 13200 16000 18960
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90° 25°,60°, 90° 25°,60°, 90°
Current 0.38A/220V 0.48A/220V 0.57A/220V
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
CRI >75
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP65
Dimmable YES&NO YES&NO YES&NO
Size(mm) 470*340*69 470*340*69 470*340*69
Net Weigh(kg) 6.4 6.4 6.4

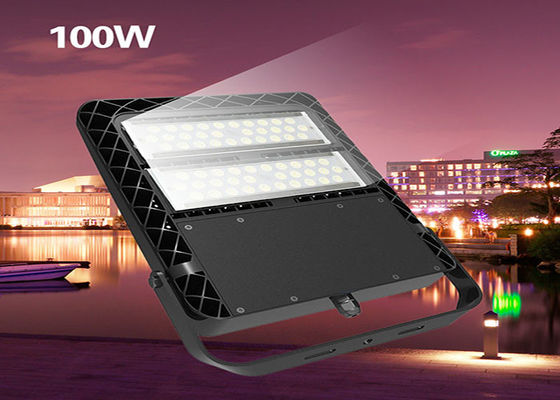

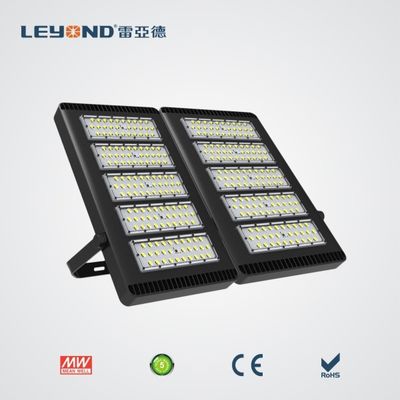

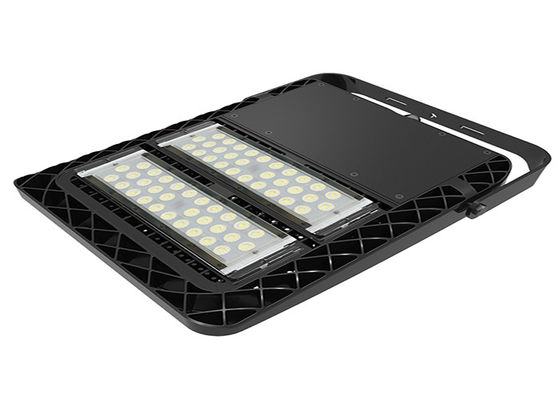

China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty

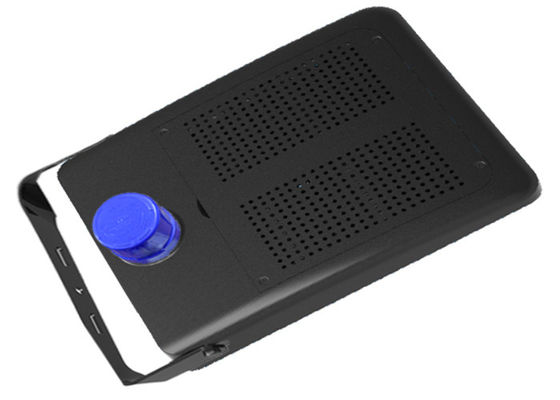

China Manufacture Outdoor LED Stadium Flood Light Modular Design 5 Years Warranty

3.Application:

It is applicable to playground lighting ,stadium lighting,plaza lighting, and so on.

• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



4. Features:

Absolutely unique mold,make your lighting special and fantastic.



Adoption LEYOND exclusive Lens with light transmittance up to 98%.



Anti-glare and uniform light level to avoid any visual discomfort.



There are 25°, 60°, 90° beam angle options for the Lens.



High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.



High luminous efficiency, Whole lamp output light efficiency >160LM/W.



Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.



Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.



Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.



Green environmental protection, no UV light and infrared radiation, no mercury pollution.



Nice appearance and non-fouling properties, Protection class IP66.



Work without strobe, fast transient response;A wide range of working voltage.
