CE ROHS certified IP66 240W Outdoor LED Flood Lights 160Lm/w Outdoor Lighting Fixture 5 Years Warranty

China CE ROHS certified IP66 240W Outdoor LED Flood Lights 160Lm/w Outdoor Lighting Fixture 5 Years Warranty supplier

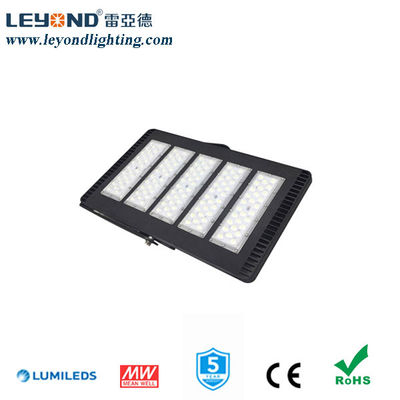

Large Image :  CE ROHS certified IP66 240W Outdoor LED Flood Lights 160Lm/w Outdoor Lighting Fixture 5 Years Warranty

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO
Model Number: LY-ST30240XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 200-250USD/pcs
Packaging Details: carton package
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
LED Product: LED Flood Light 240W Material: Aluminum/PC
Chips Brand: 5050 Driver: Meanwell
High Efficiency: 160lm/w Waterproof Rating: IP66
Warranty: 5 Years Color: Black/Grey Or Others

CE ROHS certified IP66 LED Flood light 240W with 160Lm/W high efficiency for oitdoor lighting fixture.





New stadium led flood light 240W



·Adoption LEYOND exclusive Lens with light transmittance up to 98%.

·There are 25°,60°, 90° beam angle options for the Lens.

·High luminous efficiency,Whole lamp output light effiency >160LM/W.

·High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

·For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

·Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.

·The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.





Technical parameter:



Model Power Input Voltage Luminous Flux CCT Product Size(mm) Chip Brand Beam Angle IP Rating
LY-ST30240XX 240W AC100-240V 50/60Hz 38400lm WW:2700-3000K
NW:4000-4500K
PW:5000-6500K
540X340X67

LUXEON

5050

25°/60°/90° IP66
LY-ST30480XX 480W 76800lm 540X680X67





Outlook: Distribution Curve:

CE ROHS certified IP66 240W Outdoor LED Flood Lights 160Lm/w Outdoor Lighting Fixture 5 Years Warranty CE ROHS certified IP66 240W Outdoor LED Flood Lights 160Lm/w Outdoor Lighting Fixture 5 Years Warranty





Operation and Storage Condition

· Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%

· Input Voltage 100~240V AC, 50/60Hz

· Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%



Package

Inner box Size: 650mm×455mm×150mm

Outer box Size: 670mm×470mm×315mm (2 PCS)



Assembly and Installation

· Assembly-Electricity

1) AC100-240V

·  Blue : Neutral

· Brown : Line

· Yellow-Green : Ground





Warning

· Please handle the product with care when open the package.

· Do Not Open the Light Engine

· Do Not Soak the Floodlight into Water

· Do Not Light up the System Without Grounding

· Do Not Use Dimmer

· If the new LED Flood light is found damaged, please keep the original package and contact us.

· In order to ensure the product work properly, please use the power supply within indicating voltage range.

· Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.



Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
