CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips

CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips
CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips

Large Image :  CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,EMC,LVD,RoHS
Model Number: LY-ST23100RGB

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Plain Carton/ Customization
Delivery Time: 5-15 workdays
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 20,000 pcs/month
Detailed Product Description
Power: 100w (100w,200w,200w Available) LED Chip: Bridgelux Flip Chip
Driver Brand: China Driver PF: >0.95
CCT: 2700-3000K,4000-4500K,6000-6500K Beam Angle: 20/60/90 Degree
Material: Aluminum+PC Lens Product Model: RGB Led Flood Light
High Light:

high power led floodlight

,

rgb led floodlight

CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips

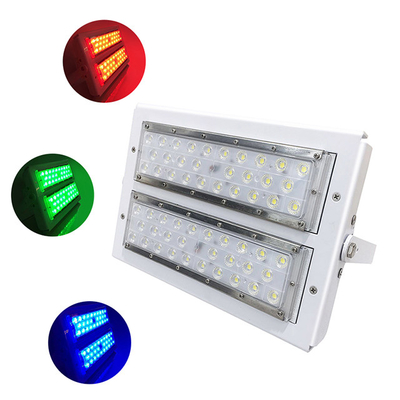

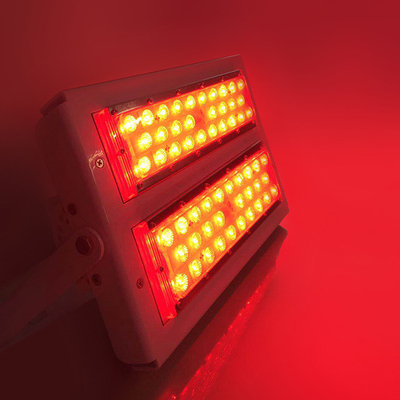

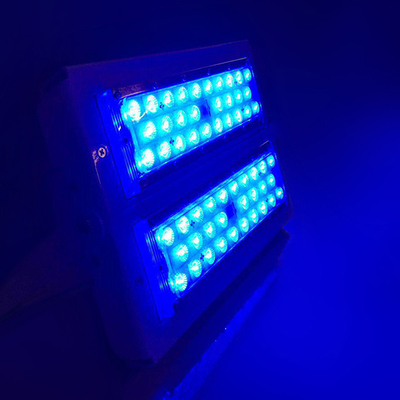

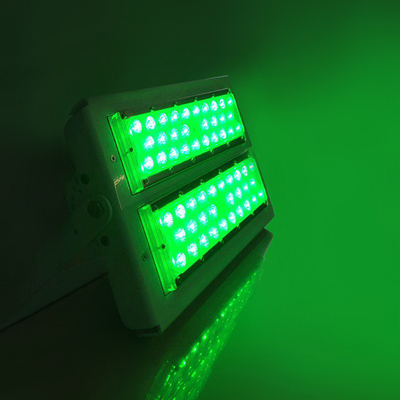

1. Outlook
CE RoHs Approved RGB 512DMX LED Flood Light  40w Bridgelux Flip Chips 0


2. Application

LED is cold light sources, a wide range of output color, RGB LED as a light source ,can be widely used in various building walls of light color decoration, and the stage, meeting rooms, display lights, ancient buildings, the Cultural Plaza and other places.


3. Features.



1) Adoption LEYOND exclusive Lens with light transmittance up to 98%.

2) Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

3) There are 25°,60°, 90° beam angle options for the Lens.

4) Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.

5) Master or Slave function, if set master, it can stead of the external controller.

6) Reliable 350mA constant current driver designed to ensure high-power LED lights for a stable job.

7) Superior ability to adapt to the environment, protection grade IP66, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.

8) more than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.

9) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



4.Technical parameter



Electrical Specifications





Model modules number Power Input Voltage Input Current Power factor

Power

efficiency

LY-ST23100RGB 1 100W

AC90~305V

50/60Hz

0.48A/220VAC >0.99/115VAC >0.95/230VAC >90%



Photometric Specifications



Emitting Color λd / CCT Typical Lumens Forward Voltage Forward Current
RED 625 nm 1350 lm 18-22 V 1150mA
GREEN 525 nm 2400 lm 30-32 V 1150mA
BLUE 460 nm 900 lm 30-32 V 1150mA
WHITE / 7500lm 18-32V 3450MA


Mechanical Specifications





Model modules number Power Carton Size gross weight Net Weight IP Rating Meterial
LY-ST23100RGB 3 100W 385X376X155MM 8.1kg 7.3kg IP66 Aluminum +PC





5.Distribution Curve
CE RoHs Approved RGB 512DMX LED Flood Light  40w Bridgelux Flip Chips 1CE RoHs Approved RGB 512DMX LED Flood Light  40w Bridgelux Flip Chips 2
CE RoHs Approved RGB 512DMX LED Flood Light  40w Bridgelux Flip Chips 3

6.Production connection diagram


CE RoHs Approved outdoor waterproof RGB 512DMX modular led flood light 100w Bridgelux Flip Chips 4



7.Operation and Storage Condition



Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%

Input Voltage 100~240V AC, 50/60Hz

Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%

Mounting Height : Suitable for 5~20m height

7.Assembly and Installation

Ø Blue : Neutral

Ø Brown : LineCE RoHs Approved RGB 512DMX LED Flood Light  40w Bridgelux Flip Chips 4

Ø Yellow-Green : Ground

8.Package

Carton Size: 385mm×376mm×155mm

Net weight:8.1KG Gross weight:7.3KG

CE RoHs Approved RGB 512DMX LED Flood Light  40w Bridgelux Flip Chips 5

9.Notes

Please handle the product with care when open the package.

Do Not Open the Light Engine

Do Not Soak the Floodlight Modular into Water

If the new LED Flood light Modular is found damaged, please keep the original package and contact us.

In order to ensure the product work properly, please use the power supply within indicating voltage range.

Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.



FAQ:

1. May I have a sample for the light please?
--- Sure,we welcome sample test.

2. How many watts does this light provide?
--- 40W 80W 120w, 150w, 200w,250w 500W 800W

3. Which shipping way do you have?
--- DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.

4. How many years warranty will you provide?
--- 3-5 years warranty.
