|CCT:||WW:2700-3200K NW:4000-4500K PW:5000-6500K||CRI:||>70|
|IP Rating:||IP65 Waterproof||Beam Angle:||60 / 90 /120 Degree|
Widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
Color : Black Material : Magnesium Aluminum + PC cover
Product Code : LY-HB38100XX
|Power||100W||LED Quantity||154 PCS|
|Input Voltage||AC100-240V 50/60HZ||Driver||MEAN WELL|
|Luminous Flux||>11200 lm||Product Size||φ260X178mm|
|CCT||WW:2700-3200K; NW:4000-4500K; PW:5000-6500K||IP Rating||IP65|
|LED Type||SMD3030||Net Weight||2.6KG|

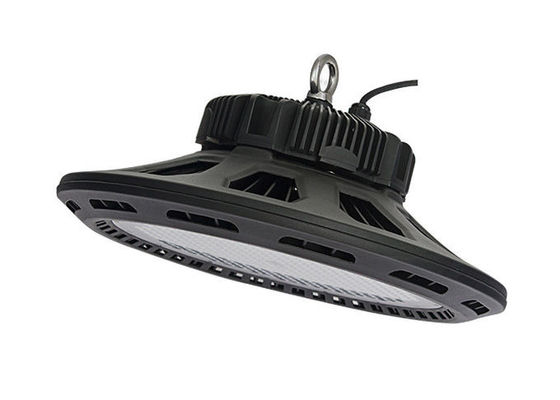

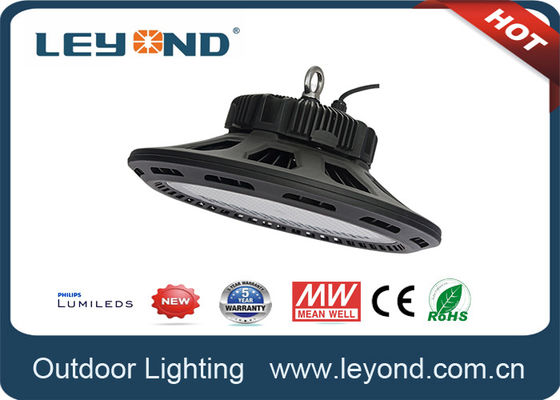

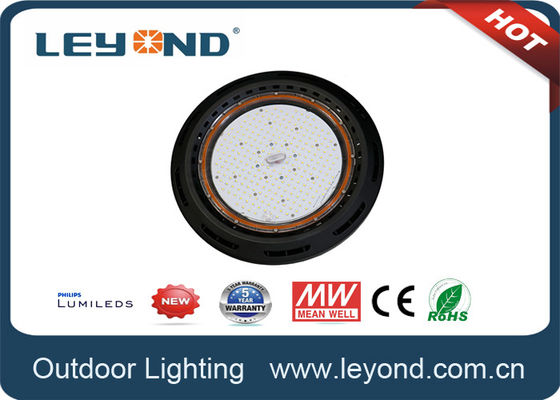

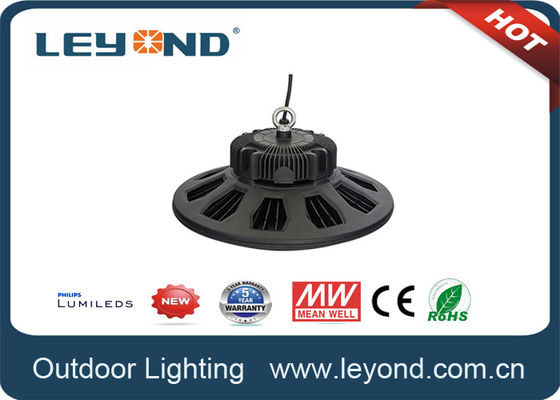

High Efficiency Competitive Price IP65 Waterproof 200W Industrial LED UFO High Bay Light
Carton Size: 360mm×360mm×200mm
Net weight : 2.6KG Gross weight : 3.7KG
• Step1. Ensure all power disconnected and turn off the power switch.
• Step2. Knowing the inside diameter of the circular ring,then choose suitable hook for the lamp.
• Step3. Fix the hook before installation and enable it to support over 3 times weight of the lamp. Connect the lamp with hook and make it safe.
• Step4. Connect the input cables of lamp to power supply mains and wrap up the cables with insulated sleeve.
• Step5. Switch on the power, the lamp will light on. Refer to the left figure.
In case of any abnormal phenomenon or problem, please switch off the power supply then contact with Genice customer service center.
The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
•Up to 80% Energy-saving compared to metal halide lamp, mercury-free and 100% recyclable, energy saving and environmental protection
• Isolated internal led driver, easy installation, safety guaranteed
• High PF value 0.9 above and THD less 15% for decrease of electricity loss
• Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years warranty, cost effective
• Power supply key components adopt world brand,No flicker, no delay, Instant on/off
• Designed for hook type, can be directly replaced is used to quick and easy
• installation to minimize retrofit and maintenance costs
• Small size, less weight and durable is the best choice for warehouses, stadiums, exhibition spaces, high ceiling lights.
• Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.
