CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66

CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66
CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66

Large Image :  CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66

Product Details:

Place of Origin: China
Brand Name: Lumileds Luxeon 5050
Certification: CE,RoHS,UL,ENEC,NOMA
Model Number: LY-ST30030XX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 205-225 USD/PCS
Packaging Details: Input size:750*257*102, Output size: 800*295*195
Payment Terms: Western Union, Paypal, T/T
Supply Ability: 50000PCS /25-30 DAYS
Detailed Product Description
Material: Die-casting Aluminum Material CCT: 2700-6500K
Solar Panel: Monocrystalline Silicon CRI: >70
Full Power: >12 Hours Intelligent Code: 3-4 Days
IP: 66 Life Span: 50000 Hours
Lumious Efficiency: >160lm/w
High Light:

outdoor led street light

,

led street lamp

All In One Solar LED Street Light 50000 Hours Life Span 30 Watts With PC Lens

Specifications:



Par NO

Parameter

LY-ST30020XX

LY- ST30030XX

Battery

18650 lithium battery 12V 20 Ah

Beam angle

150x65°

150x65°

Pole diameter

60MM

60MM

Light output

20W

30W

Luminous flux(lm)

3200

4932

Chip Brand

LUXEON 5050

LUXEON 5050

Solar panel

30W /18V monocrystalline silicon

CRI

>70

Color Temperature

Warm white:2700-3200K

Neutral white:4000-4500K

Pure white:5000-6500K

Operating time

Full power >12 hours ,Intelligent mode 3-4 days

Control Mode

Light Control + Sensor

Material

Die Casting Aluminum

Luminous efficiency(lm/w)

>160

Lifespan(hrs)

>50000

IP Rating

IP66

Installation height

4~8M

Size(mm)

750x257x102

750x257x102

Net Weigh(kg)

6.9

6.9

Package Size(mm)

800*295*155

800*295*155

Package Quantity(Pcs)

1

1

Gross Weigh(kg)

7.5

7.5

Features:



1) 20W or 30W, 18650 lithium battery 12V 20 Ah;
2) Lumileds Luxeon 5050 chips + mono-crystalline silicone solar panel 25W, with 3 years warranty;
3) Die custing Alumium housing, IP66 waterproof, CCT:2700k-6500k;
4) Beam Angle: 150x70 deg, CRI>70, 160 lm/W;
5) time control + light sensor control+ motion sensor control.

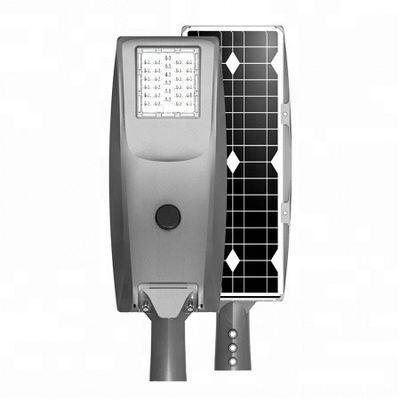

CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 0

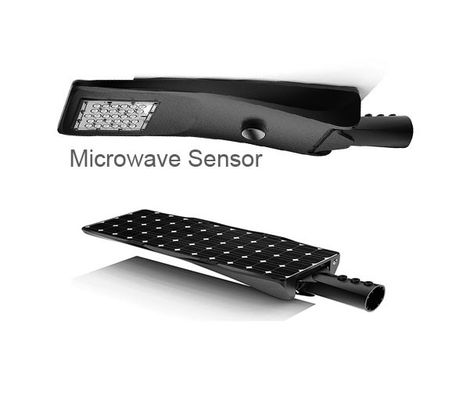

CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 1

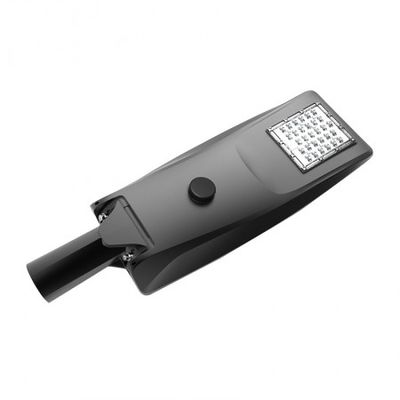

CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 2



Application:



Suitable for the street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote area lighting;farm & ranch lighting.

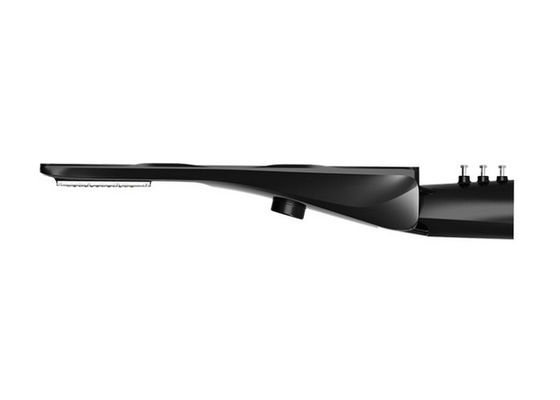

CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 3

CE RoHS approved Integrated Solar LED Street Light 50000 Hrs Life Span with Motion Sensor IP66 4

1>The intergration of design ,no cable,the installation is very convenient.

2>The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum Alloy shell.

3>It used of lithium iron phosphate battery,fight the high temperature,keep long life.

4>When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.

5>It used of alloy material as the main structure,with good rust prevention,corrosion protection.

6>The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.

7>time control + light sensor control+ motion sensor control

8>Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 50% lighting for saving power when no motion; 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).

9.Suitable for the street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote area lighting;farm & ranch lighting.
