Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

China Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66 supplier
Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66 supplier Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66 supplier Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66 supplier

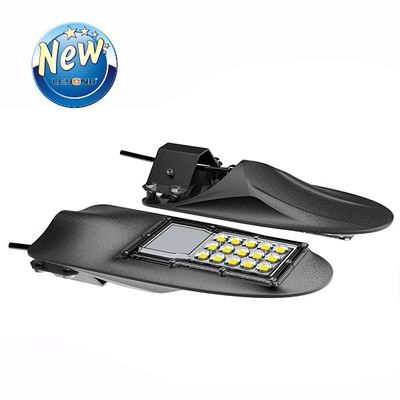

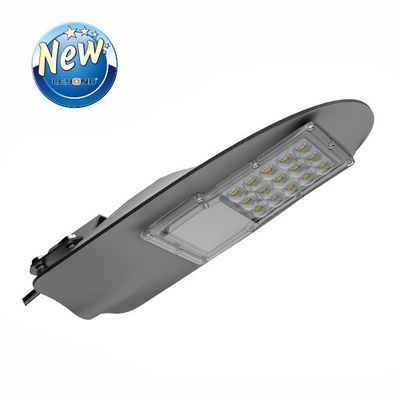

Large Image :  Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHs
Model Number: LY-ST50030XX

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: $25 (can negotiate)
Packaging Details: Package Size(mm) : 330*180*100
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
LED Light Source: Luxeon 5050 CRI (Ra>): 70
LED Power: 30W Beam Angle: 150*65 Degree
Size: 300x150x66 Mm Net Weight: 1.2 KG

Specification

LY-ST50030XX (XX for CCT)
Inptut voltage
AC100V~240V 50/60HZ
DC12-24V
Power
30W
Luminous flux
4850 lm
Chip Brand
LUXEON 5050/LEYOND 5050
Color Temperature
Warm white:2700-3200K
Neutral white:4000-4500K
Pure white:5000-6500K
Dimmable
YES&NO

Application

Suitable for the road and street, parking lot, city highway, small venues, lawn, garden and so on.

Product Description
Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

Features

1. High luminous flux,reach 150-170LM/W.Perfect Light Distribution Solution: Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.



2. No diffuse reflection effect, with high light efficiency, coupled with a unique secondary optical design, can be irradiated to a wider area, once again improve the efficiency of light has reached the purpose of energy conservation.



3. Anti-glare and uniform light level to avoid any visual discomfort.



4. Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 96%.



5. Green environmental protection, no UV light and infrared radiation, no mercury pollution.

Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

6. Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.



7. Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.



8. Green environmental protection, no UV light and infrared radiation, no mercury pollution.





Model
LY-ST50030PW
LY- ST50030WW
LY- ST50030NW
Luminous flux
4850 lm
4260 lm
4650 lm
Color
Temperature
Pure white:
5000-6500K
Warm white:
2700-3200K
Neutral white:
4000-4500K


Assembly & Instation

Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

1. AC100-240V

Blue: Neutral
Brown: Line
Yellow-Green: Ground





Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

2. DC12-24V

Red : V+
Black:V-

Warning

1. Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator ...etc
2. Do Not Open the Light Engine
3. Do Not Soak the LED Street Light into Water

4. Do Not Light up the System Without Grounding.

Operation and Storage Condition

Operation Ambient Temperature -30~+60℃, Relative Humidity 10-90%.
Input Voltage: 100-240V AC 50-60Hz
Mounting Height: Suitable for 3-8m height

Certifications
Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66

Company Information

Company Information
Hot Sale Mini LED Street Lamp outdoor Street Lighting Toolless Design 30 watt IP66



Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the wholly-owned subsidiary of LiYang Electronic(Hongkong) Limited. We are High-Tech enterprise who concentrate and specialize in developing and producing Eco-friendly high power LED Lightings.

Leyond company is located in Shenzhen, owns a 6000 m2 factory with high qualified clear workshops and 300 employees. Together with outstanding optical & technical personnels and quality engineers; equipped with advance automaticity Die Bonding & chip bonding equipments and molding machines; perfect quality-testing and safeguard measures; all of these promote Leyond to be the leader in the industry.

"Innovation is the base of development; qualified service is the foundation of existence", Leyond keeps up with marketing trend based on customers' requirements, try to supply the best products with best price & quality and humanistic service.

LEYOND is the Top 3 LED street light exporter from China,Our major products include Led Street lights, Led flood light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers' requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.

Feeling the charm of light, to find the value of the light. We carry out enterprise culture of the "To customer demand as the guide,keep the leading technology, to create maximum value for customers", and the spirit of "Humility self-discipline, perseverance, go all out" is our permanent pursuit. Leyond is striving to achieve the goal of "to be the best LED lighting supplier" and to" build Leyond brand".



FAQ

Q1. Can I have a sample order for led light?

A: Yes, sample order to test and check quality is good. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: No MOQ, 1 piece for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Send your requirements or application--- Quotation--- Samples and places deposit for formal order--- Arrange the production--- Quality Check ---Delivery

Q6. Is it OK to print my logo on led light product?

A: Yes. OEM ODM is ok.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.
