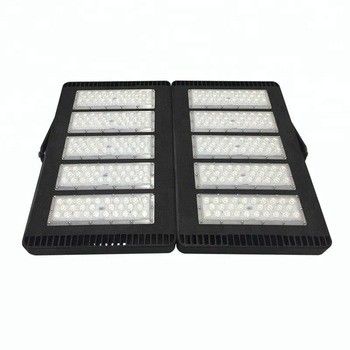

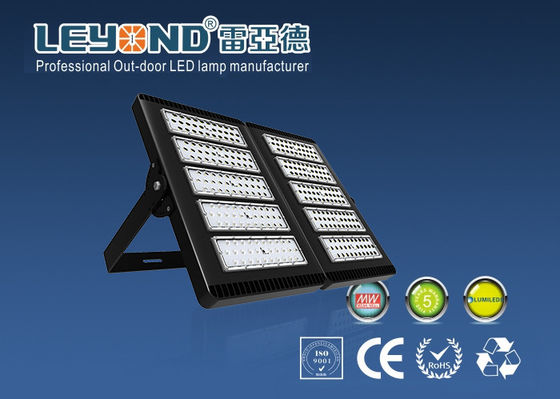

High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing

High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing
High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing

Large Image :  High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: EMC,LVD, RoHS
Model Number: LY-ST30480-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Standard Plain Carton Package
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10,000 pcs/month
Detailed Product Description
Material: Aluminum+PC Cover Chip Brand: Luxeon 5050
Driver Brand: Meanwell PF: >0.98
Luminous Efficiency: 160 Lm/W CRI: >70
IP Grade: IP66 Beam Angle: 25/60/90 Degree
Input Voltage: 100-240V AC
High Light:

led stadium lighting

,

high power led floodlight

High Power 480W Black Aluminium Housing LED Flood Light PF>0.98 IP66 Outdoor Stadium Lighting 5 Year Guarantee





Par NO

Parameter

LY-ST30400XX LY-ST30480XX
System consumption(W) 400 480
Luminous flux(lm) 66000 76800
Chip Brand LUXEON 5050
LEYOND 5050
LUXEON 5050
LEYOND 5050
Beam Angle 25°, 60°, 90° 25°, 60°, 90°
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Luminous efficiency(lm/w) >160 >160
IP Rating 66 66
Size(mm) 540*680*67 540*680*67
  Net Weigh(kg) Net Weigh(kg)



Application:



It is applicable to playground lighting ,stadium lighting,plaza lighting, and so on.

• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



Spiderman Stadium 5.jpg

High Power LED Stadium Lighting 5 Year Guarantee With Black Aluminium Housing 1
Advantages:

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 25°, 60°, 90° beam angle options for the Lens.

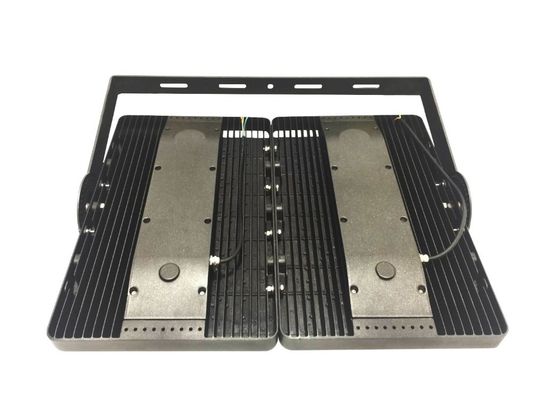

• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >130LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

FAQ:

1). How is the warranty?
       ----We could offer 5 years warranty, and during our warranty:

   1).  Products returned within the warranty period must be Leyond product number & date code.
   2). Products of unknown sources or without valid marking will not be accepted.
   3). Replacement items will be sent together with customer's next order shipment.

2).  How is the payment term?
         ----30% T/T in advance, 70% balance before shipment. P.S: T/T, Paypal, Wester Union are OK!
3).  How is the lead/production time?
            ----7~15 work days (It depends on the qty of the order)
4).   Could you accept OEM?
         ------We accept OEM. OEM box, OEM sticker
Welcome to contact us for more details.
