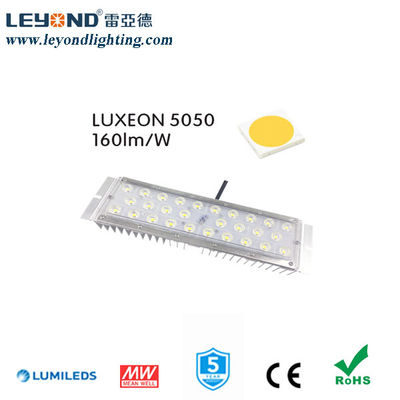

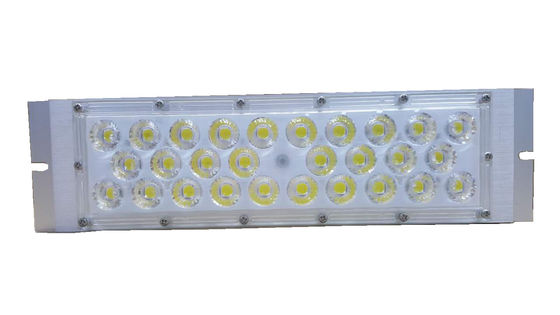

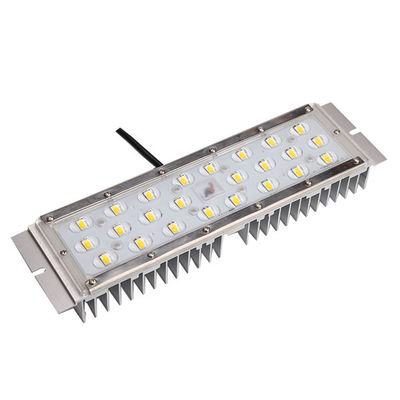

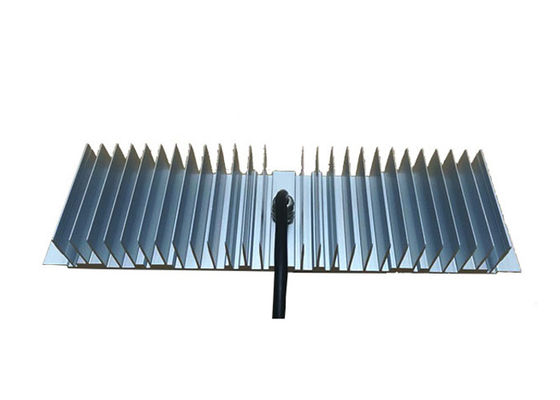

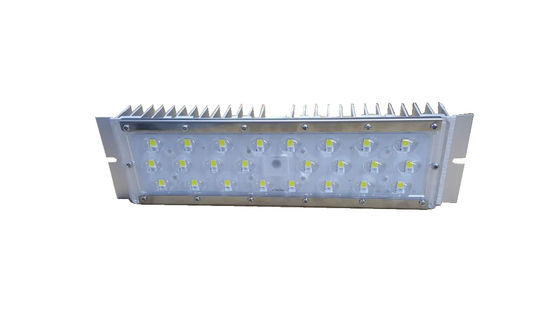

IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty

IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty
IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty

Large Image :  IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: EMC,LVD,ROHS
Model Number: LY-ST51050XX

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: Neogotiable
Packaging Details: Standard plain cartons
Delivery Time: 5-15 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50,000pcs/month
Detailed Product Description
Led Chip: Luxeon 5050 Chips Material: Aluminum+PC
IP Rating: IP66 Product Dimension: 300*78*42MM
Working Life: 50000 Hrs CCT: 3000K 4000K, 5700K, 6000K
Beam Angle: 150x65 Deg
High Light:

led lighting module

,

led modular

High Quality IP66 Waterproof 170lm/W 5050 LED SMD LED Module with 5 Year Warranty

Quick Details:

IP Rating

IP66

Product Dimension

300*78*42mm

Net weight

0.65KG

Light Body& Lampshade

Aluminum Alloy and PC

Working Life

50000 hrs

Working Temperature

-30 ~ +60

Storage Temperature

-10 ~ +85

Working Humidity

10%~90%

Beam Angle

25°/60°/90°




5050 Street Light Module

·Applicable to all types of road lighting: expressway, trunk road, main road, large public buildings or commercial center road, secondary road, branch, residential roads and sidewalks, and can also be used for general building, square, freight yard, landscape and other places of lighting.  New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.

Color:  White

Product Code: 5050 Series 150x65 degree

Brand: Leyond

CCT
Wattage
CRI(Ra)
Voltage
Current
Luminous Efficiency
Luminous Flux
2700K-3200K
30W
70
45-52 V
0.67A
163lm/W
4890lm
40W
0.89A
162lm/W
6480lm
45W
1.0A
160lm/W
7200lm

4000K-4500K
30W
0.67A
170lm/W
5100lm
40W
0.89A
168lm/W
6720lm
45W
1.0A
165lm/W
7450lm

5000K-6500K
30W
0.67A
173lm/W
5190lm
40W
0.89A
172lm/W
6880lm
45W
1.0A
170lm/W
7650lm
Product Dimension


300*78*42mm
Net weight
0.63kg
Material
Aluminum Alloy and PC
LED Type
5050
LED Qty
28 pcs
Warranty
5 years
Working Life
>50000hrs
Working Temperature
-30 ~ +60
Storage Temperature
-10 ~ +85
Working Humidity
10%~90%



Module 8.jpg







Inner Carton = 2 Set                     Weight1.2KG

 Outer Carton=40 Set                   Weight25.0KG

Inner Carton Size : 306mm x 83mm x 67mm

Outer Carton Size : 365mm x 322mm x 354mm

IP66 Waterproof LED Module 170lm/w 5050 LED SMD Luxeon 5050 Chips With 5 Year Warranty 1

  High luminous efficiency, 30W Luminous flux4285lm; Whole lamp output light effiency >170LM/W.

  Unique second-time light distribution, no light pollution, no glare, no flickering.

  Modular structure making the lamp more easier and faster to be designed, easy to do replacement and maintaining. A variety of combinations can multiply increase the brightness and illumination.

  Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.

  Impact Resistance, Shock-proof,  Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp, without harm to the human body.

  The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.

  CHEM module design adopts the professional optical design of free-curve- surface, fully uses the features that LED light in directionally to improve the utilization of LED maximumly under offered a space-saving of light efficiency, and makes shines more than 80% on the road, and avoids light pollution maximumly caused by street lights.
