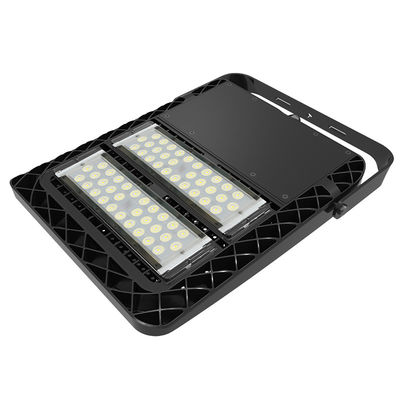

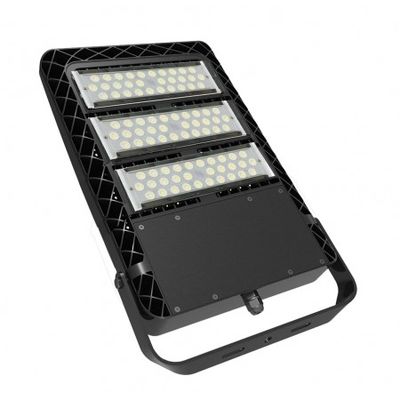

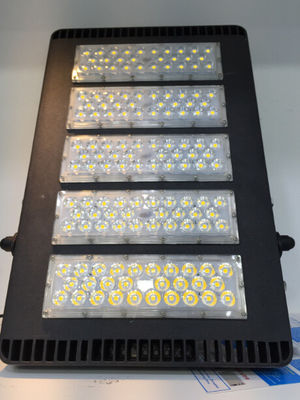

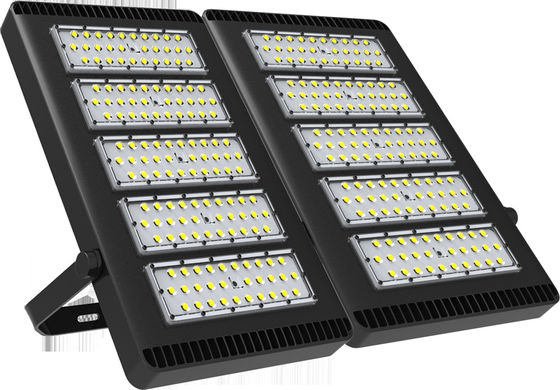

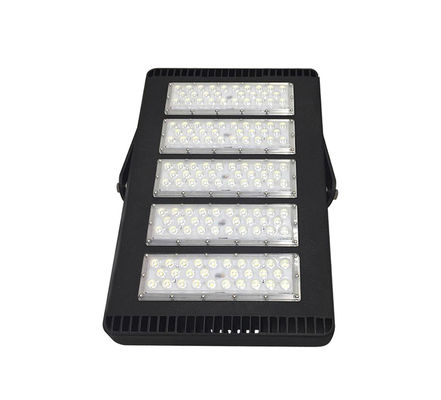

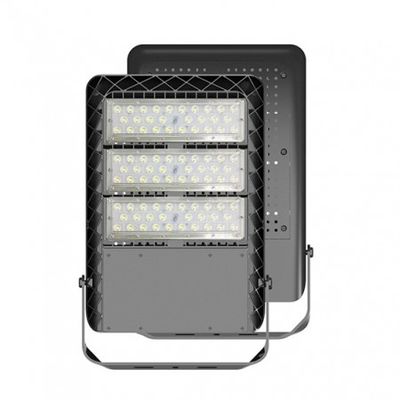

Meanwell Driver LED Stadium Light 165lm/w 50 - 1000w IK10 IP65 For Area Lighting

50-1000w high pole LED stadium Flood lights (160lm/w)



Features:

1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.

2. There are 25°,60°, 90° beam angle options for the Lens.

3. High luminous efficiency,Whole lamp output light effiency >160LM/W.

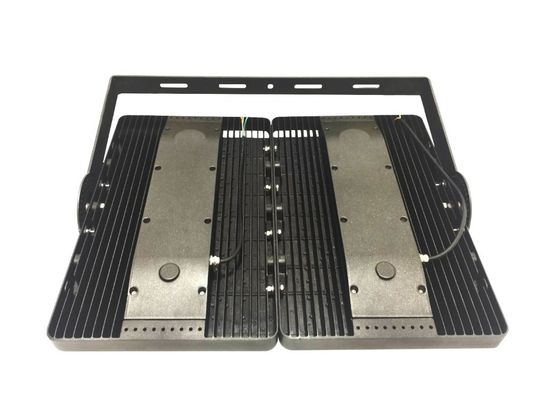

4. Die-cast aluminum with Good heat dissipation

5. World top class Meanwell Driver, 5 years warranty

6. IP66 waterproof design for outdoor application.



Technical Parameter:



Input Voltage:AC100~240V 50/60Hz

Input Current:2.32A/220V AC

Power Factor:0.98

Power Efficiency: ≥88%

Power:500W

Luminous Efficiency:160lm/W

Luminous Flux:80000lm

CRI: >70

Beam Angle: 25°/60°/90°

CCT:WW:2700-3200K NW:4000-4500K PW:5000-6500K

Operational Condition:Temperature:-30℃~60℃ Humidity:10%~90%RH

Product Size:624X458X93mm

IP Rating:IP66

Net Weight:16.8kg



Assembly and Installation
·

Assembly-Electricity

· Blue : Neutral
·Brown : Line
·Yellow-Green : Ground


Quality Warranty:

• Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
