Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection

Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection
Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection

Large Image :  Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE RoHS LVD EMC
Model Number: LY-ST60120XX

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 110USD/PCS
Packaging Details: H*W*L
Delivery Time: 5-15 Days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30000 Pcs /Month
Contact Now
Detailed Product Description
Light Source: LED,Fluorescent,Halogen Bulbs Ip Rating: IP65,IP 66
Input Voltage(v): AC100-277V Item Type: Street Lights
Working Lifetime(hour): 50000,55500 Application: Outdoor,Highway
High Light:

outdoor led street light

,

led street lamp

01. Specification



Input Voltage

AC100-305V 50/60HZ

System Consumption(w)

120

120

120

Luminous Flux(lm)

20100

18000

19275

Chip Brand

Luxeon5050/Leyond5050

Luxeon5050/Leyond5050

Luxeon5050/Leyond5050

Color Temperature

PW 5000-6500K

WW 2700-3200K

NW 4000-4500K

CRI

>70

Beam Angle

150*60 DEG

LED Driver

MEANWELL XLG-200

Luminous Efficiency(lm/w)

>160

Lifespan(hrs)

>50000

IP Rating

IP66

Dimmable

YES&NO

YES&NO

YES&NO

Size(mm)

394*220*128

394*220*128

394*220*128

Net Weight(kg)

3.6

3.6

3.6

Package Size(mm)

430*250*180

430*250*180

430*250*180



02. Feature

Perfect Light Distribution Solution :

LED street light lens is our own independent research and development of open mold products, has made major technological breakthroughs in the process.Lens achieved high-quality goals such as low light attenuation, high illumination, and good heat dissipation. > 160 LM / W, 10,000 hours light decay <8%.Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity. Anti-glare and uniform light level to avoid any visual discomfort.



Die Cast Aluminum Alloy :

aluminum alloy die-casting with high thermal conductivity. The wavy shape of the heat dissipation increases the heat dissipation area and forms good convection with the surrounding air. The operating temperature does not exceed 65 degrees, thereby ensuring the stability and long life of the lamp ; Excellent self-cleaning function, the design of the curved heat sink and drainage groove is conducive to the sliding of dust, rain and snow, and the dust on the surface is more easily carried away by rain. Absolutely unique mold,make your lighting special and fantastic.

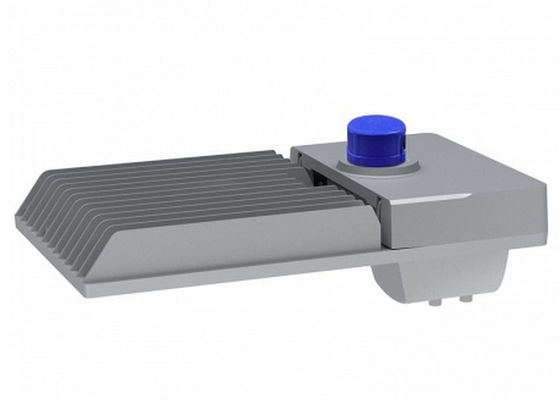

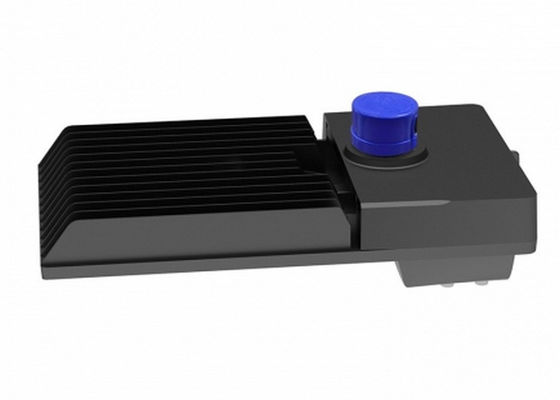

Photocell Sensor Available :

The twist-lock type photocontrols are manufactured as per ANSI C136.10 standards. They are mainly used in controlling the outdoor lighting fixtures with mating receptalces automatically. If the photo control is temporarily not to be used, the shorting cap can be used instead.Earlier turning-off in dawn for saving more energy, easy-to-maintain Twist-lock (ANSI C136.10) & Fail-On mode IP65 protection while installed (5-20 seconds time-delay switching-off for luminaires protection)





Tool Less Easy Maintainance :

The power supply is designed to be portable and easy to construct and maintain.Easy to disassemble and assemble: You can easily open and cover up the housing with your hands,don't need any additional tools.
Green environmental protection, no UV light and infrared radiation, no mercury pollution.Nice appearance and non-fouling properties, Protection class IP66. Work without strobe, fast transient response；A wide range of working voltage.

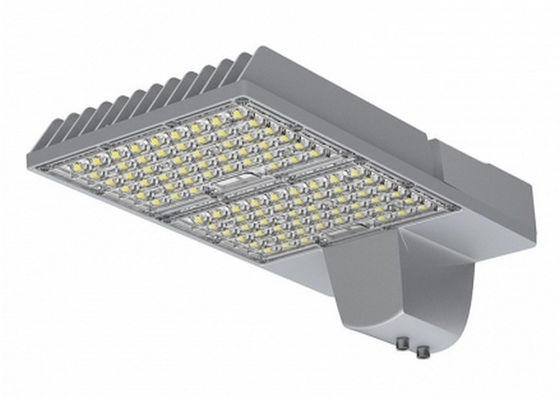

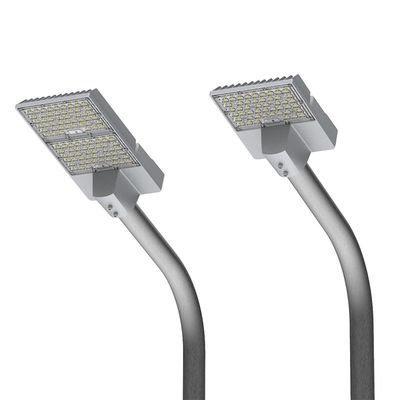

03. Product Picture



Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection 0

Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection 1Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection 2



04. Dimension



Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection 3

05. Production Pictures:

Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection 4



For More Information, Pls Feel Free To Contact Us

Good Looking Outdoor integrated Solar Power Led Garden Post Lights with MPPT Control,Motion Sensor 14

FAQ

- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

- How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
