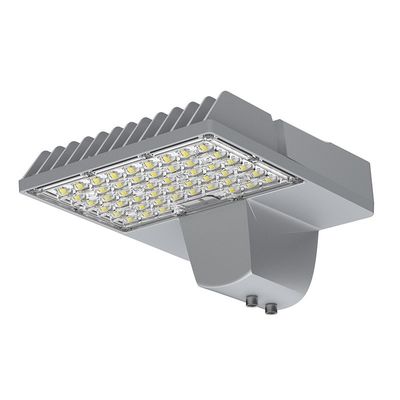

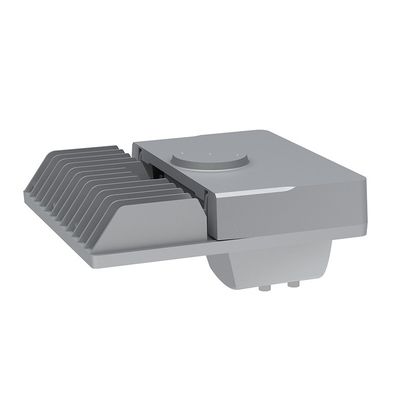

Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable

Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable
Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable

Large Image :  Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: CE RoHS,CB,ENEC, GS, SAA, NOM, UL, DLC
Model Number: LY-ST60060-XX

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Packing: inner carton+outer carton
Delivery Time: 5-7 days for samples
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 30000 pcs/month
Detailed Product Description
Power: 60w LED Chip: Lumileds 5050 SMD
LED Driver: Inventronic EUM 0-10v IP Rating: IP66
CCT: 2700-6500K Warranty: 5 Years
Beam Angle: 150X65 Package: 75cm×40cm×23cm (2 PCS )
GW: 2.8kg Luminous Flux: 9600lm
Dimmable: LORA NEMA CRI: >80
Pole Diameter: 60mm
High Light:

led roadway lighting

,

led street lamp

160lm/W 60-180w Cube series Led Street Light

Product Description:



1. Save 80% more energy compared with traditional lighting fixtures



2. Easy to install and use, secure and reliable



3. No UV or RF interference, No mercury or lead



4. Light body is made of good quality die casting aluminum, exiguity and unique design, excellent heat dissipation



5. long life span>50000hrs



6. High brightness, low consumption, green for environment



7. AC85-305V in different countries and regions.AC12/24V led driver is also available



8. Potection grade is IP65





Dimension:

Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable 0



Specification:


Model Inptut voltage Sysem consumption Luminous flux Chip Brand Beam Angle
LY-ST60080PW AC100V~240V
50/60HZ
80W 12900lm 5050 150*65°
LY-ST60080WW 12800lm
LY-ST60080NW 12850lm



Model CRI Color Temperature LED Driver Luminous efficiency Lifespan IP Rating
LY-ST60080PW >80 WW:2700-3200K
NW:4000-4500K
PW:5000-6500K
MEAN WELL
ELG-100
>160lm/W >50000h IP66
LY-ST60080WW
LY-ST60080NW





Model Dimmable Size(mm) Net Weight Package Size(mm) Gross Weight
LY-ST60080PW YES&NO 642x290x120 2.8kg 720*370*200 4.0
LY-ST60080WW
LY-ST60080NW





Aging Test:
Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable 1

Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable 2

Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable 3

























































































































installing:

Lumileds 5050 SMD Chip LED Street Lighting IP68 IK10 2700-6500K LORA NEMA Dimmable 4























































































































FAQ:

1. How many watt you have for Sword led Street light ?

---- 30w, 40w, 50w, 60w 100w 120w 150 180w

2. How is the warranty?

---- We could offer 5 years warranty, and during our warranty:

1). Products returned within the warranty period must be Leyond product number & date code.
2). Products of unknown sources or without valid marking will not be accepted.
3). Replacement items will be sent together with customer's next order shipment.

3. What's your delivery time?

---- For sample order our delivery time is 3-5 working days. For General order, for about 8 working
days.

4. What kind of payment and shippmeng do you use?
---- T/T,Westen Union,Paypal
---- Fedex,UPS,DHL,TNT,HongKong Post,EMS or other ways of shippment.


5. Would you do OEM or ODM orders?

---- Sure, OEM and ODM orders are welcome
