MPPT Controller 20W 3050lm 20Ah solar led street lamp

MPPT Controller 20W 3050lm 20Ah solar led street lamp
MPPT Controller 20W 3050lm 20Ah solar led street lamp MPPT Controller 20W 3050lm 20Ah solar led street lamp MPPT Controller 20W 3050lm 20Ah solar led street lamp MPPT Controller 20W 3050lm 20Ah solar led street lamp

Large Image :  MPPT Controller 20W 3050lm 20Ah solar led street lamp

Product Details:

Place of Origin: Shenzhen
Brand Name: LEYOND
Certification: CE/ROHS/LVD/EMC ISO9001:2015
Model Number: LY-ST30020-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: USD120-USD180/PC
Packaging Details: KK cartoon + PE foam
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000/Month
Detailed Product Description
Product Name: Solar LED Street Light Power: 20w
Lumen: 160lm/w Solar Panel: Mono-crystalline 30w
Battery: Lithium Battery 12V 20Ah LED Brand: Lumileds Luxeon 5050
Body Color: Black/Grey/Customized Charging Time: 6-8 Hours
Operating Time: Full Power>12 Hours Working Temp: -25 - 50
High Light:

20Ah Solar Led Street Lamp

,

3050lm Solar Led Street Lamp

,

20W Led Solar Garden Light

IP66 Outdoor Lighting Solar LED Street Lights 20W 30W MPPT cotroller Light sensor



2. Specifications

Par NO

Parameter

LY-ST30020PW LY- ST30020NW LY- ST30020WW
Battery 18650 lithium battery 12V 20 Ah / 30 Ah
Beam angle 150x70° 150x70° 150x70°
Pole diameter 60MM 60MM 60MM
Light output 20W 20W 20W
Luminous flux(lm) 3200 3050 2900
Chip Brand LUXEON 5050 LUXEON 5050 LUXEON 5050
Solar panel 20W /18V monocrystalline silicon
CRI >70
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Operating time Full power >12 hours ,Intelligent mode 3-4 days
Control Mode Light Control + Sensor
Material Die Casting Aluminum
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Installation height 4~8M
Size(mm) 750x257x102 750x257x102 750x257x102
Net Weigh(kg) 6.9 6.9 6.9
Package Size(mm) 800*295*155 800*295*155 800*295*155
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 7.5 7.5 7.5

3. Applications

Suitable for the street lighting; sidewalk lighting;roadway lighting;

fence lighting; pathway lighting; campus lighting; park lighting; garden lighting; ramp lighting;

boat dock lighting; remote area lighting; farm & ranch lighting.

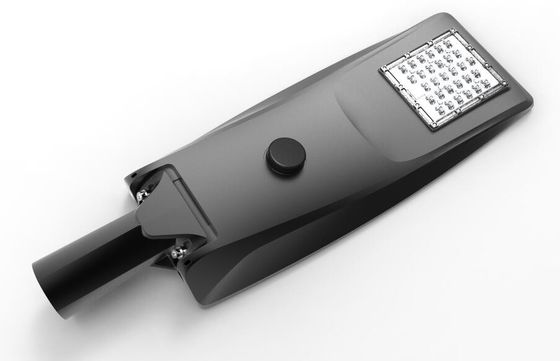

MPPT Controller 20W 3050lm 20Ah solar led street lamp 0





Outlook

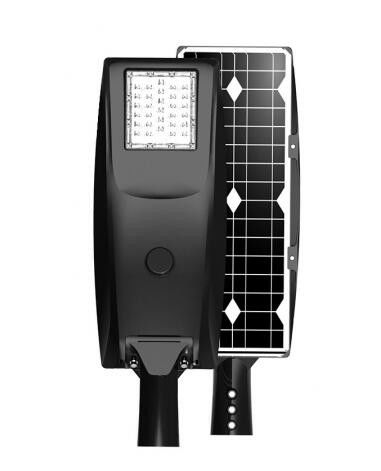

MPPT Controller 20W 3050lm 20Ah solar led street lamp 1

MPPT Controller 20W 3050lm 20Ah solar led street lamp 2

4. Features

1>The intergration of design ,no cable,the installation is very convenient.

2>The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum Alloy shell.

3>It used of lithium iron phosphate battery,fight the high temperature,keep long life.

4>When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.

5>It used of alloy material as the main structure,with good rust prevention,corrosion protection.

6>The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.

7>time control + light sensor control+ motion sensor control

8>Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 50% lighting for saving power when no motion; 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).

5. Pictures

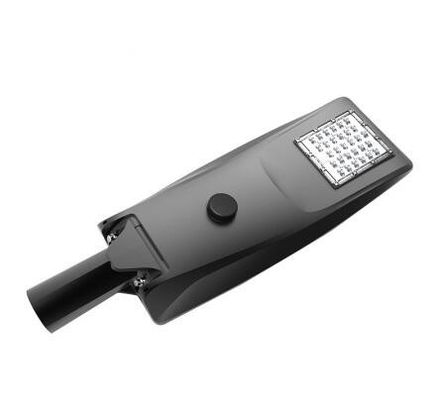

MPPT Controller 20W 3050lm 20Ah solar led street lamp 3

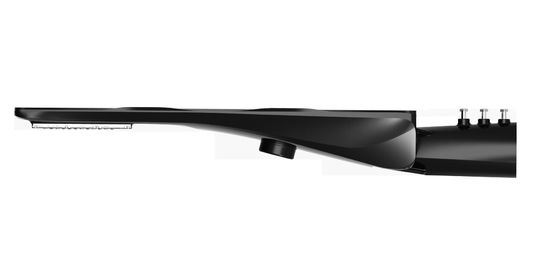

MPPT Controller 20W 3050lm 20Ah solar led street lamp 4

MPPT Controller 20W 3050lm 20Ah solar led street lamp 5

6. Smart Mold

MPPT Controller 20W 3050lm 20Ah solar led street lamp 6

7. Operation and Storage Condition

  • Operation Ambient Temperature -15 to +50°C, Relative Humidity 20~90%
  • Storage Ambient Temperature -15 to +60°C, Relative Humidity 5~95%
  • Mounting Height : Suitable for 4~8m height

8. Package


Inner box Size: 800mm×295mm×155mm
Outer box Size: 820mm×310mm×345mm  (2 PCS LED Street Light)
MPPT Controller 20W 3050lm 20Ah solar led street lamp 7

9. FAQ



1. How does the light work ?



During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.



2. How many hours can the light work ?



Normally, after fully charged, the light can work ≥ 15h ( 100% power with Microwave Sensor ). It is 100% power working when human being detected, and 30% power default setting when no human being detected.



3. How many rainy days can the light work ?



The light can work for 3 ~ 5 rainy days.



4. Is the battery replaceable ?



Yes. The battery inside is easy to replace. If the battery broken during the warranty period, we will offer you free replacement.



5. Can we buy samples ?



Yes. we welcome sample order to test and check quality. We will recommend you the suitable models according to your areas.



6. Do you have any MOQ limit for solar lighting product order ?



No, even only buy 1 pcs as a sample for test is also available.



7. What about the lead time ?



Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for order quantity.



8. Is it OK to print our company logo on package ?



Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



9. What's your warranty ?



We provide 5 years warranty for the whole product, replace any damaged parts or whole product free of charge during the warranty period. but the product damage caused by force majeure is excepted.



10. Warning

  • Do Not Open the Light Engine
  • Do Not Soak the LED Street Light into Water
  • When open the package please assure that the light is perfect without any damage. If any damage is found, do not install the product.
