Product Details:
Payment & Shipping Terms:
|
| Product Name: | King LED Streetlight | Power: | 80w |
|---|---|---|---|
| Lumen: | 150lm/w | Driver: | Meanwell Or Customized |
| LED Brand: | Lumileds Luxeon 5050 | Beam Angle: | 160*85 |
| Material: | Aluminum+Tempered Glass + PMMA | Working Temperature(℃): | -35 - 50 |
| Application: | Square, Garden, Sports Stadiums, Building, Out Wall | Warranty: | 5 Years |
| High Light: | 150lm/W Aluminium LED Road Lighting,12000lm Aluminium LED Road Lighting,PMMA Dimmable Led Street Lights |
||

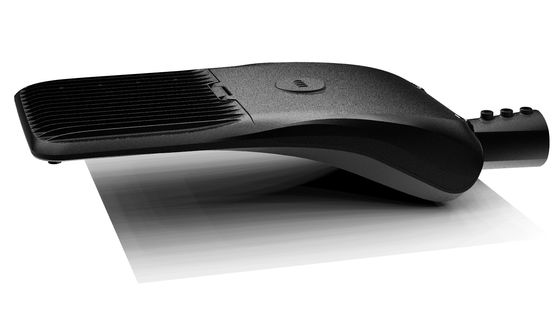

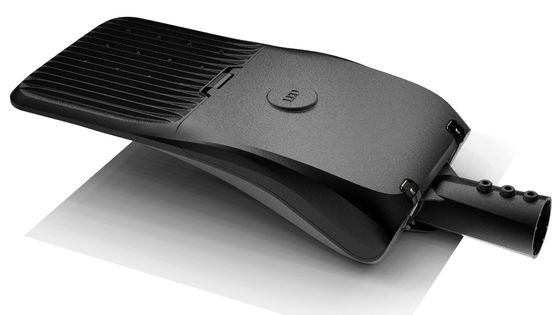

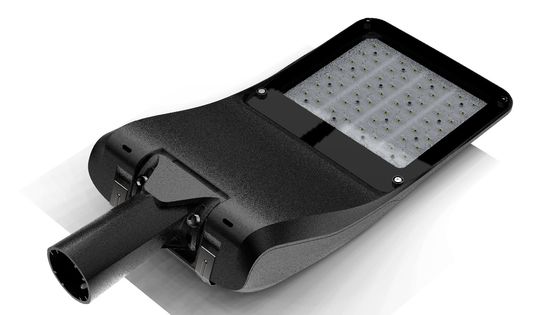

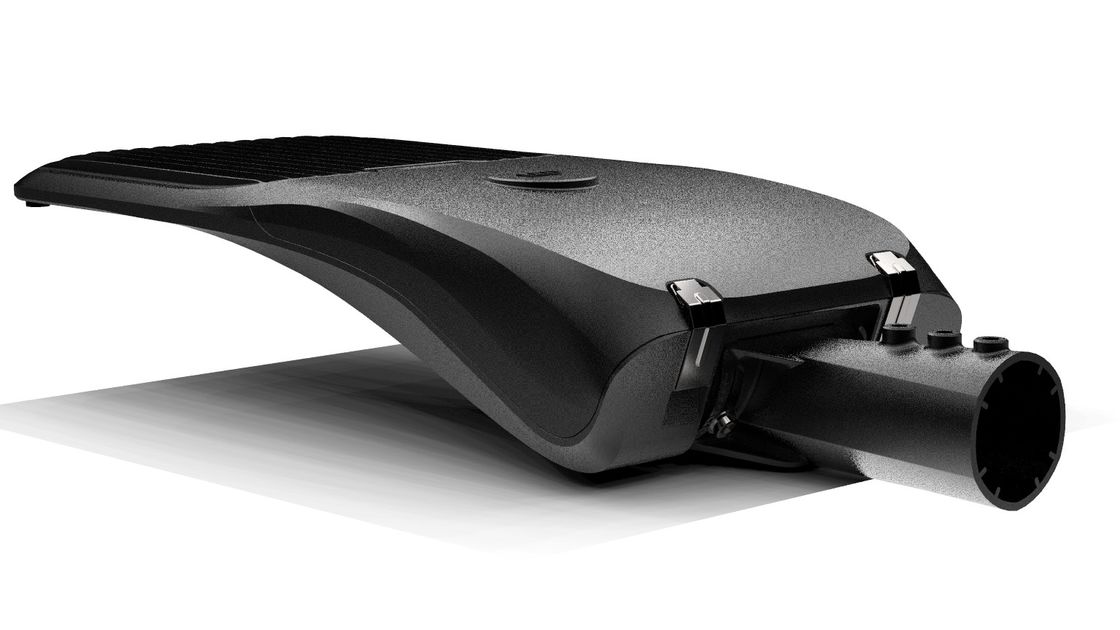

LED Street Light Outdoor light 80W Aluminium housing LED Street Light Road Lighting
Features
• Absolutely unique mold,make your lighting special and fantastic.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual discomfort.
• high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
•Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 96%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.
1. Specifications
|
Par NO Parameter |
LY-ST50080PW | LY- ST50080WW | LY- ST50080NW |
| Inptut voltage | AC90V～305V 50/60HZ | ||
| Sysem consumption(W) | 80 | 80 | 80 |
| Luminous flux(lm) | 12000 | 11850 | 11900 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Beam Angle | 160*85 DEG | 160*85 DEG | 160*85 DEG |
| CRI | ＞80 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver |
MEAN WELL HLG-100H / ELG-100 |
||
| Luminous efficiency(lm/w) | ＞150 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 619x240x139 | 619x240x139 | 619x240x139 |
| Net Weigh(kg) | 5.9 | 5.9 | 5.9 |
| Package Size(mm) | 722*300*149 | 722*300*149 |
722*300*149 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 7.1 | 7.1 | 7.1 |
3. Applications
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,
residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
Outlook
5. Pictures
6. Operation and Storage Condition
7. Package
Inner box Size: 765mm×335mm×200mm
Outer box Size: 780mm×350mm×435mm (2 PCS LED Street Light)
