Product Details:
Payment & Shipping Terms:
|
| Power: | 150w | Lumen: | 160lm/w |
|---|---|---|---|
| Input Voltage: | 90-305V | CRI: | 80 |
| Working Temp: | -25 - +50 °C | Application: | Garden, Garden Square Park, Street |
| CCT: | 2700-6500K | Light Source: | Luxeon 5050 |
| Warranty(year): | 5 Years | Lamp Body Material: | Aluminum+PC |
| High Light: | 60Hz 150w Street Light,60Hz 150w Led Street Light,305V 150w Street Light |
||

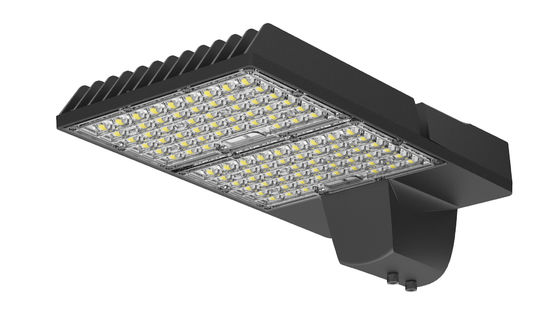

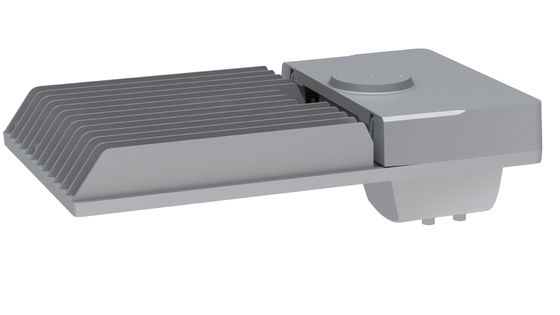

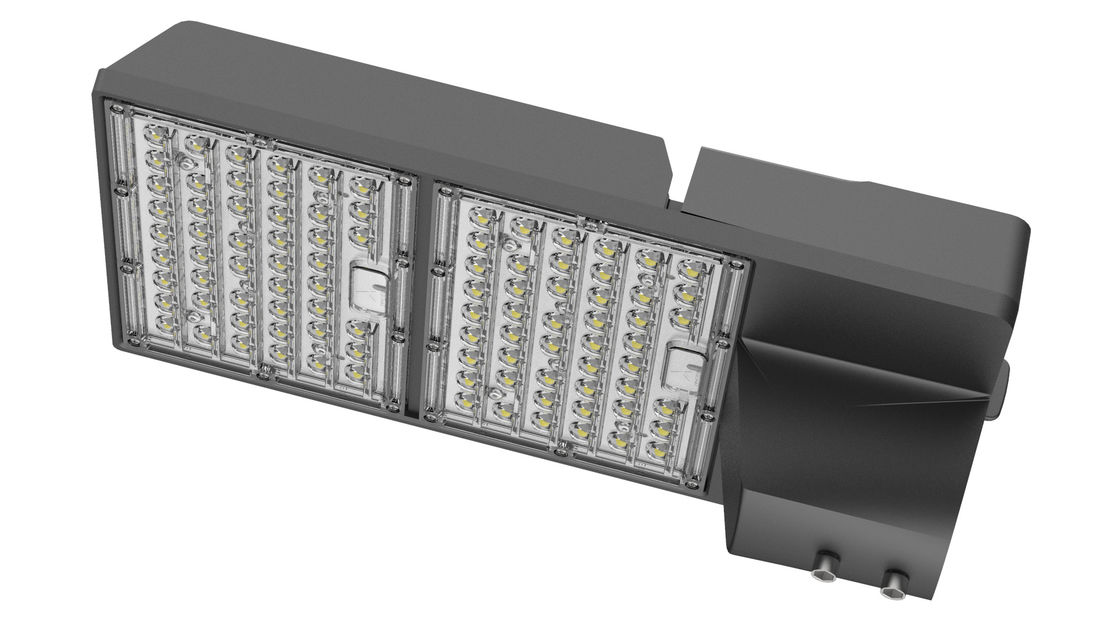

Pure White Input 305V 60Hz 150w Street Light IP66 Tpye Ⅱ Beam Angle
160lm W Pure White LED Street Light 150w IP66 Tpye Ⅱ Beam Angle Long Lifetime
1. Specification of Leyond Galaxy LED Street light 150W
|
Par NO Parameter |
LY-ST60150PW | LY- ST60150WW | LY- ST60150NW |
| Inptut voltage | AC100V～305V 50/60HZ | ||
| Sysem consumption(W) | 150 | 150 | 150 |
| Luminous flux(lm) | 25125 | 22500 | 24094 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 | ||
| Beam Angle | 150*60 DEG | ||
| LED Driver |
INVENTRONICS EUM-150 |
||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 394x220x128 | 394x220x128 | 394x220x128 |
| Net Weigh(kg) | 3.6 | 3.6 | 3.6 |
| Package Size(mm) | 430*250*180 | 430*250*180 |
430*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 4.7 | 4.7 | 4.7 |
2. Features of Leyond Galaxy LED Street light 150W
• Absolutely unique mold,make your lighting special and fantastic.
• The appearance of body: aluminum alloy die-casting
• High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.

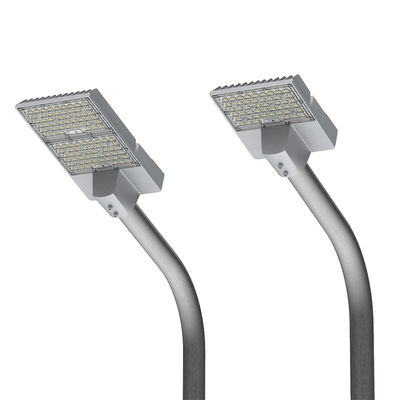

3. Application of Leyond Galaxy LED Street light 150W
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
4. Distribution Curve
5. Operation and Storage Condition
