Product Details:
Payment & Shipping Terms:
|
| Power: | 180w | Lumen: | 160lm/w |
|---|---|---|---|
| Input Voltage: | 100-305V | CRI: | 80 |
| Working Temp: | -25 - +50 °C | Application: | Garden, Garden Square Park, Street |
| CCT: | 2700-6500K | Light Source: | Luxeon 5050 |
| Warranty(year): | 5 Years | Lamp Body Material: | Aluminum+PC |
| High Light: | 180w LED Street Lighting,100V LED Street Lighting,180w LED Street Light |
||
160lm/W Pure White 180w LED Street Lighting Tpye Ⅱ Beam Angle
160lm W Pure White 180w LED Street Light IP66 Waterproof Fin Cooling Tpye Ⅱ Beam Angle
1. Specification of Leyond Galaxy LED Street light 180W
|
Par NO Parameter |
LY-ST60180PW | LY- ST60180WW | LY- ST60180NW |
| Inptut voltage | AC100V～305V 50/60HZ | ||
| Sysem consumption(W) | 180 | 180 | 180 |
| Luminous flux(lm) | 30250 | 27000 | 29000 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 | ||
| Beam Angle | 150*60 DEG | ||
| LED Driver |
INVENTRONICS EUM--200 |
||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 394x220x128 | 394x220x128 | 394x220x128 |
| Net Weigh(kg) | 3.6 | 3.6 | 3.6 |
| Package Size(mm) | 430*250*180 | 430*250*180 |
430*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 4.7 | 4.7 | 4.7 |
2. Features of Leyond Galaxy LED Street light 180W
• Absolutely unique mold,make your lighting special and fantastic.
• The appearance of body: aluminum alloy die-casting
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual discomfort.
• Adopting LUXEON 5050 led light sources and LEYOND lens technology, higher light transmittance up to 93%.
• The power supply is designed to be portable and easy to construct and maintain.Easy to disassemble and assemble: You can easily open and cover up the housing with your hands,don't need any additional tools.
• Dust and snow proof: Adopt smooth die-cast aluminum housing,successfully prevent the dust and snow from acumulating on the housing,thus better heat dissipation and longer life span.
• High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.
3. Application of Leyond Galaxy LED Street light 180W
Suitable for the highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
4. Operation and Storage Condition

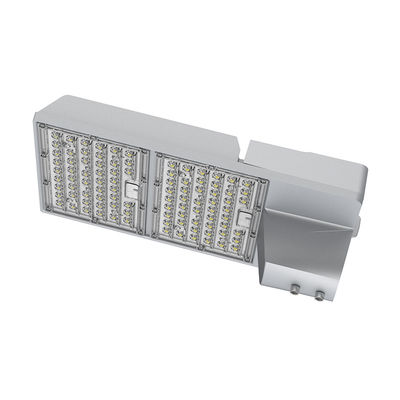

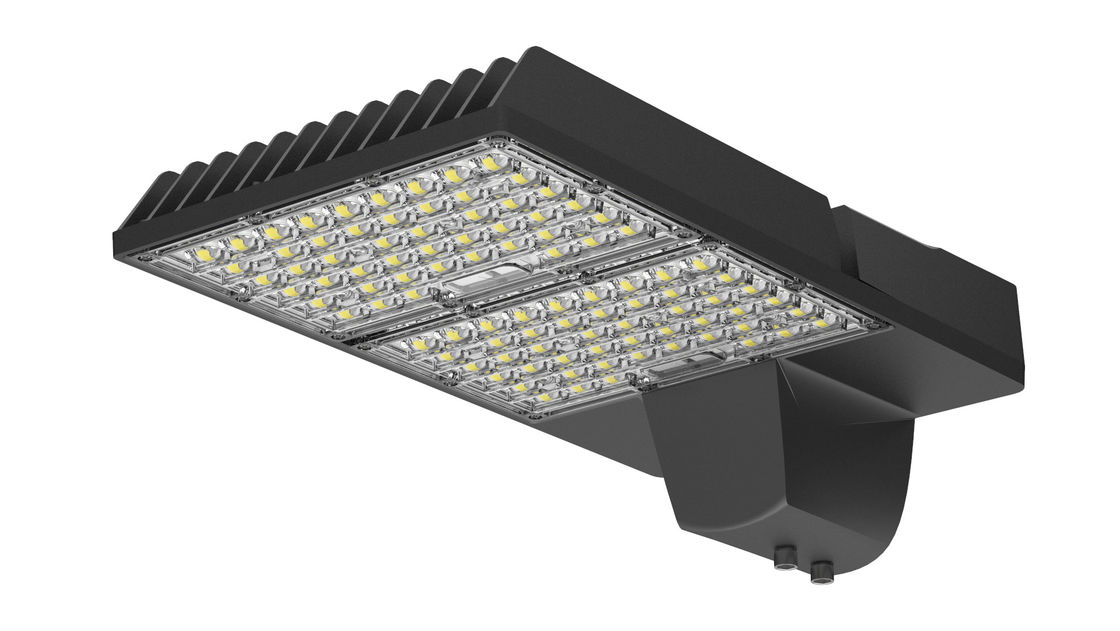

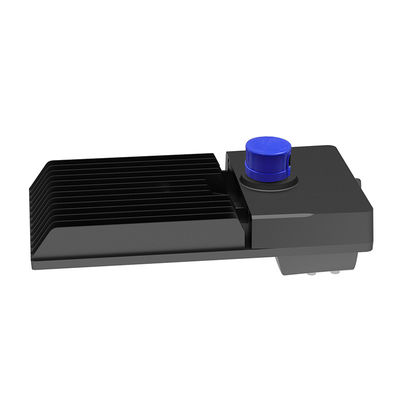

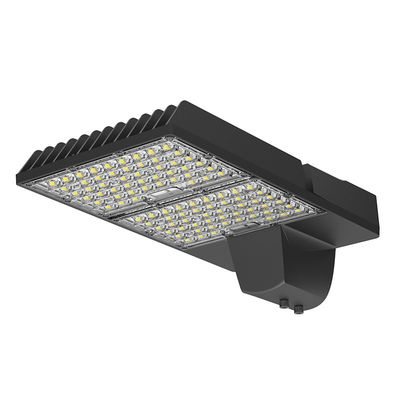

6. Outlook of Leyond Galaxy LED Street light 180W
