Product Details:
Payment & Shipping Terms:
|
Type: | LED Canopy Light | Lumen: | 160LM/W |
---|---|---|---|
Light Source: | Luxeon SMD5050 | Driver: | Meanwell |
Application: | Gas Station,Gas Station .Parking Garage . Warehouse,Petroleum Stations/Parking Garages/Corridors/Low-medium,petrol Station,warehouse Lighting | Material: | Pure Aluminum + PC |
Beam Angle: | 90° | Lamp Power(w): | 150W |
Size: | 400*312*98mm | Warranty: | 5 Years |
High Light: | 24000lm LED Canopy Lights,85 DEG LED Canopy Lights,24000lm Outdoor Canopy Lights |

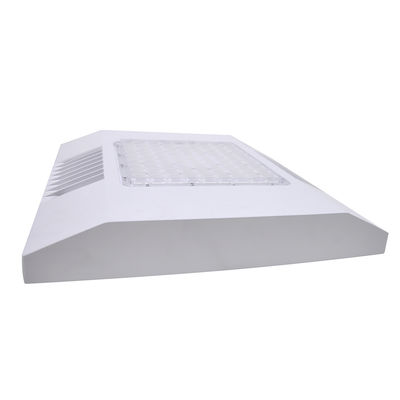

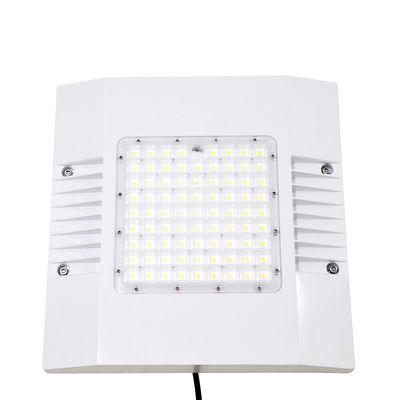

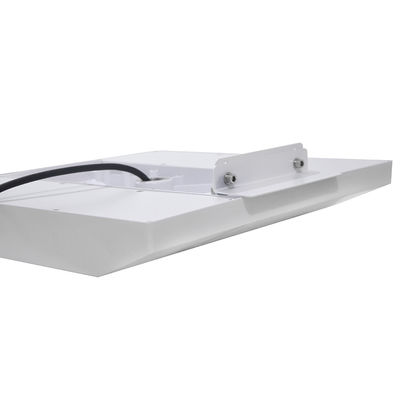

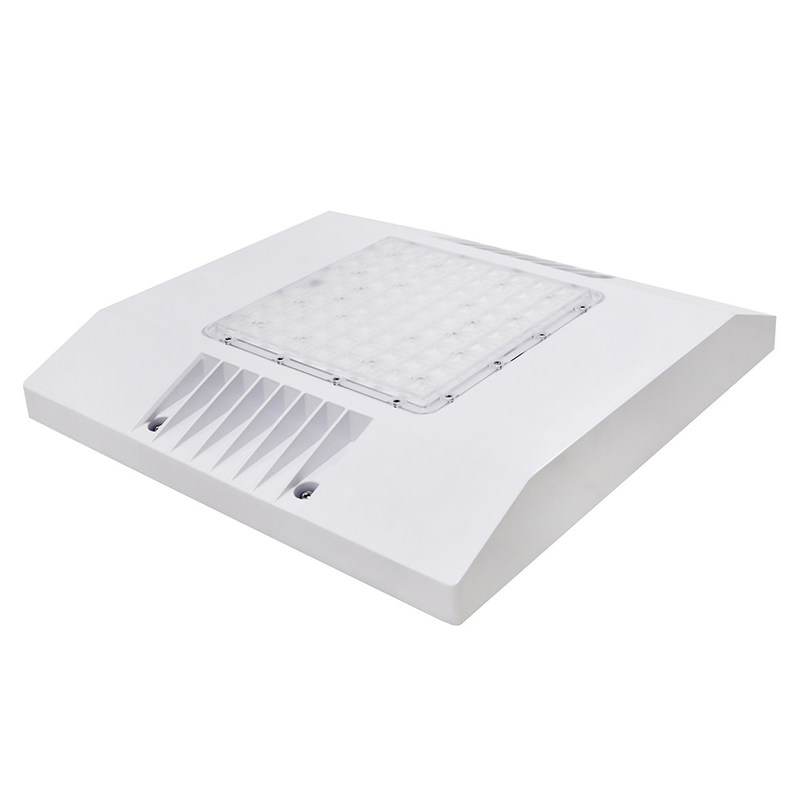

Outdoor 85 DEG 24000lm LED Canopy Lights Die Casting Aluminium
Die Casting Aluminium LED Canopy Lights 24000lm IP66 Outdoor LED Canopy Lights
Specification
|
Outlook
Features
• Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 95°beam angle for your optional, optimized light distribution design solution.
• High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without fading and corrosion.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Application
Gas Station | Office |Factory | Warehouse | Shopping Mall | Gymnasium | Plant Area | Petrol Station Conference Centers |Shopping Mall | Garage| Workshop Station
Installationn Instruction
Operation and Storage Condition
Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
Mounting Height : Suitable for 6~18m height
Package
Inner box Size: 430mm×430mm×100mm
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the light into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
In order to ensure the product work properly, please use the power supply within indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant gasket or similar materials
