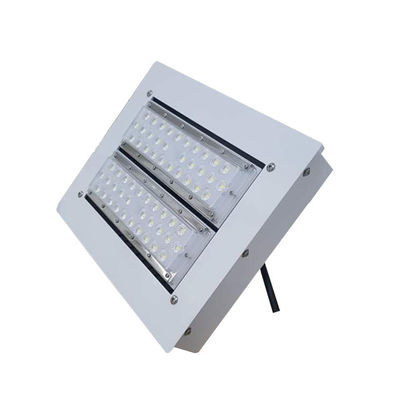

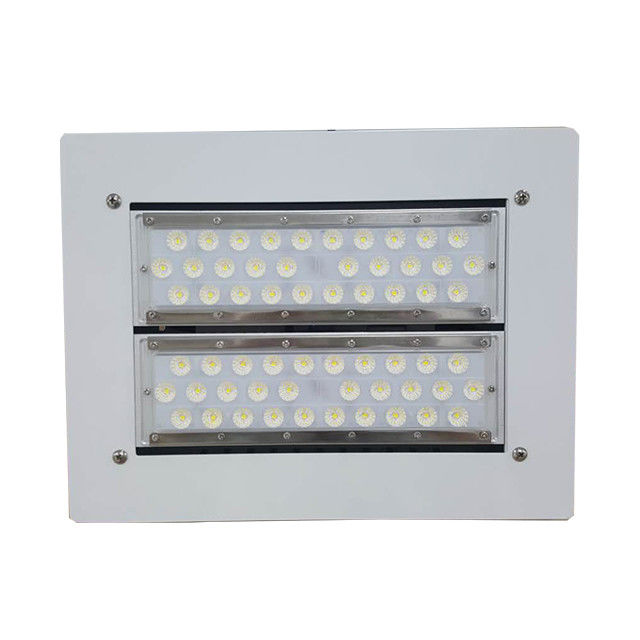

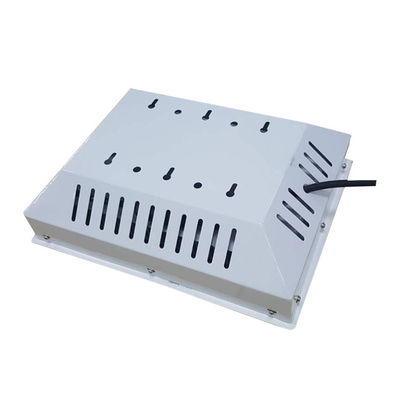

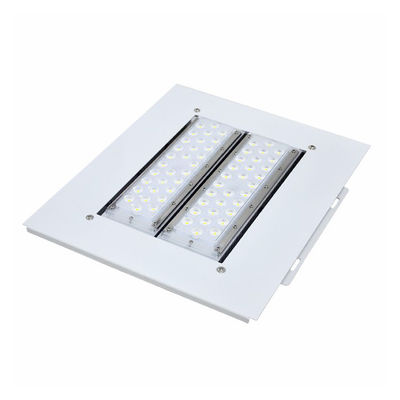

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular
IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular

Large Image :  IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular

Product Details:

Place of Origin: Shenzhen
Brand Name: LEYOND
Certification: CE/ROHS/LVD/EMC ISO9001:2015
Model Number: LY-YL15120-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: KK cartoon + PE foam
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000/Month
Detailed Product Description
Type: LED Canopy Light Input Voltage(v): 100-240VAC
Light Source: Luxeon SMD5050 Cri (ra>): 80
Application: Gas Station .Parking Garage . Warehouse,Petroleum Stations/Parking Garages/Corridors/Low-medium,petrol Station,warehouse Lighting Material: Pure Aluminum + PC
Beam Angle: 90° Lamp Power(w): 120W
Working Temperature(℃): -35 - 60 Warranty: 5 Years
High Light:

120W LED Canopy Lights

,

IP66 LED Canopy Lights

,

120W LED Gas Station Light

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular



IP66 Aluminium Modular LED Canopy Lights 120W LED Gas Station Light 160lm/w





Specification

Power Luminous Flux CCT CRI Beam Angle Net Weight
120W >16000lm 2700~6500K >80 25°/36°/60°/90° 6.5kg

Features

  • Using 5050 led chip to ensure high lumen and long life.
  • The shell with the anodic oxidation treatment, strong corrosion resistance.
  • Adoption LEYOND exclusive Lens with light transmittance up to 98%.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • There are 25°,60°, 90° beam angle options for the Lens.
  • Scientifically-designed heat dissipater with much better cooling effect.
  • High luminous efficiency, Whole lamp output light effiency >160LM/W.
  • High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, CE/EMC/LVD/ROHS compulsory certification.
  • For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED light, even the voltagefluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
  • Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
  • The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



Outlook

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 0

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 1





Application

Gas Station | Office |Factory | Warehouse | Shopping Mall | Gymnasium | Plant Area | Petrol Station Conference Centers |Shopping Mall | Garage| Workshop Station

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 2

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 3



Distribution Curve

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 4

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 5



Installationn Instruction

IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 6



Operation and Storage Condition

  • Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
  • Input Voltage 100~240V AC, 50/60Hz
  • Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%
  • Mounting Height : Suitable for 6~15m height



Package

Carton Size: 380X370X140 MM

Net weight:6.0KG Gross weight:6.8KG
IP66 Gas Station 16000lm 120W LED Canopy Lights Aluminium Modular 7
Warning
  • Please handle the product with care when open the package.
  • Do Not Open the Light Engine
  • Do Not Soak the light into Water
  • Do Not Light up the System Without Grounding
  • Do Not Use Dimmer
  • In order to ensure the product work properly, please use the power supply within indicating voltage range.
  • Whatever the case, lamps can not be covered by heat resistant gasket or similar materials
