Product Details:
Payment & Shipping Terms:
|
| Product Name: | Solar LED Street Light | Power: | 20w 30w 40w 50w |
|---|---|---|---|
| Lumen: | 160lm/w | Solar Panel: | Mono-crystalline 30w |
| Battery: | Lithium Battery 12V 30Ah | LED Brand: | Lumileds Luxeon 5050 |
| Body Color: | Black/Grey/Customized | Charging Time: | 6-8 Hours |
| Operating Time: | Full Power>12 Hours | Working Temp: | -25 - 50 |
| High Light: | IP66 Waterproof Solar Street Lights,50w Waterproof Solar Street Lights,IP66 Solar Panel Street Light |
||

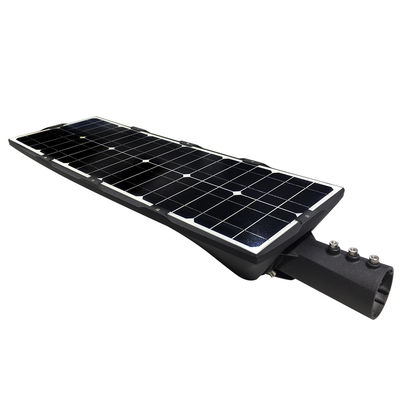

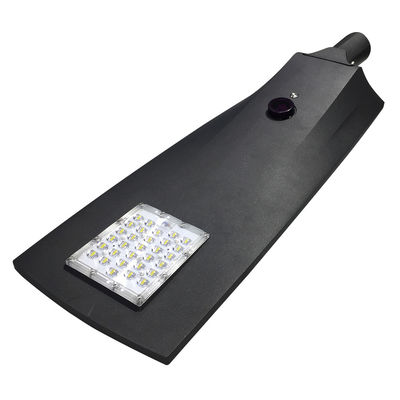

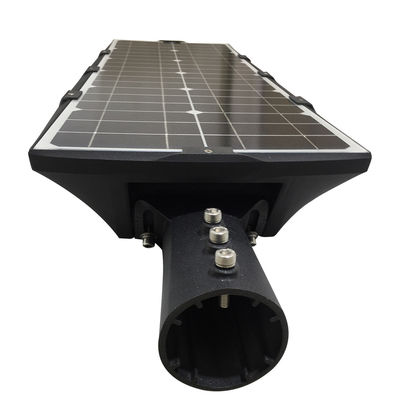

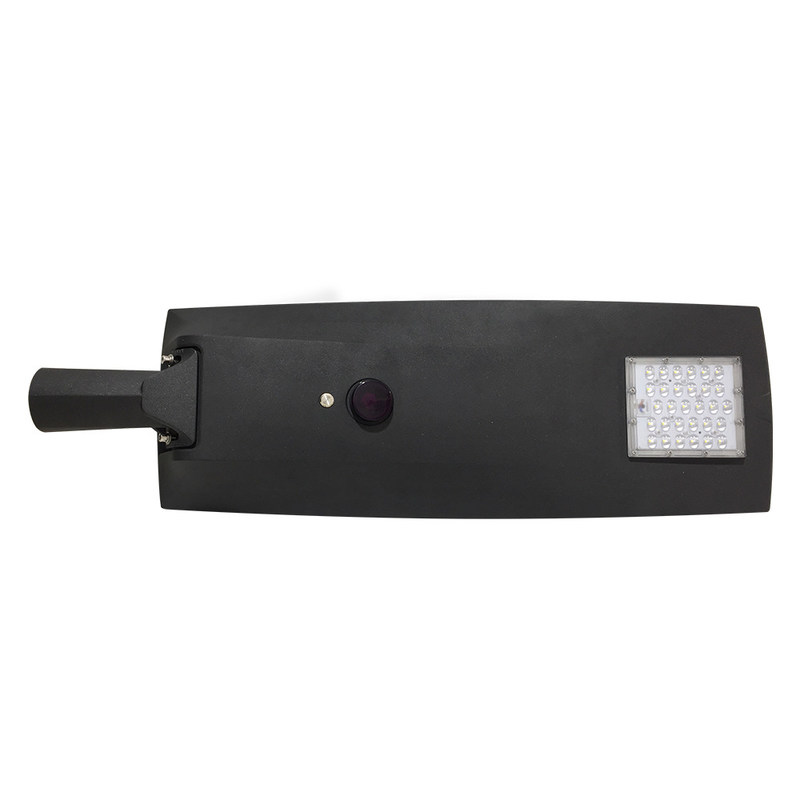

Mono Panel IP66 Waterproof Solar Street Lights 20w 30w 40w 50w
Mono Solar Panel 20w 30w 40w 50w Ip66 Waterproof Solar Led Street Lights
Specifications
|
Par NO Parameter |
LY-ST30030PW | LY- ST30030NW | LY- ST30030WW |
| Battery | 18650 lithium battery 12V 20 Ah / 30Ah | ||
| Beam angle | 150x70° | 150x70° | 150x70° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 30W | 30W | 30W |
| Luminous flux(lm) | 4800 | 4650 | 4500 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Solar panel | 30W /18V monocrystalline silicon | ||
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days | ||
| Control Mode | Light Control + Sensor | ||
| Material | Die Casting Aluminum | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Installation height | 4~8M | ||
| Size(mm) | 750x257x102 | 750x257x102 | 750x257x102 |
| Net Weigh(kg) | 6.9 | 6.9 | 6.9 |
| Package Size(mm) | 800*295*155 | 800*295*155 | 800*295*155 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 7.5 | 7.5 | 7.5 |
Applications
Suitable for the street lighting; sidewalk lighting;roadway lighting;
fence lighting; pathway lighting; campus lighting; park lighting; garden lighting; ramp lighting;
boat dock lighting; remote area lighting; farm & ranch lighting.
Features
1> The intergration of design ,no cable,the installation is very convenient.
2> The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum Alloy shell.
3> It used of lithium iron phosphate battery,fight the high temperature,keep long life.
4> When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
5> It used of alloy material as the main structure,with good rust prevention,corrosion protection.
6> The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.
7> time control + light sensor control+ motion sensor control
8> Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 50% lighting for saving power when no motion; 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).
Outlook
5. Pictures
Smart Mold
Operation and Storage Condition
Package
1. How does the light work ?
During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.
2. How many hours can the light work ?
Normally, after fully charged, the light can work ≥ 15h ( 100% power with Microwave Sensor ). It is 100% power working when human being detected, and 30% power default setting when no human being detected.
3. How many rainy days can the light work ?
The light can work for 3 ~ 5 rainy days.
4. Is the battery replaceable ?
Yes. The battery inside is easy to replace. If the battery broken during the warranty period, we will offer you free replacement.
5. Can we buy samples ?
Yes. we welcome sample order to test and check quality. We will recommend you the suitable models according to your areas.
6. Do you have any MOQ limit for solar lighting product order ?
No, even only buy 1 pcs as a sample for test is also available.
7. What about the lead time ?
Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for order quantity.
8. Is it OK to print our company logo on package ?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. What's your warranty ?
We provide 5 years warranty for the whole product, replace any damaged parts or whole product free of charge during the warranty period. but the product damage caused by force majeure is excepted.
