Product Details:
Payment & Shipping Terms:
|
| Power: | 40w | LED Chip: | Lumileds 5050 |
|---|---|---|---|
| Battery: | Phosphate Lithium Battery 12V 40 Ah | IP Rating: | IP66 |
| Material: | Die-casting Aluminum | Warranty: | 3 Years |
| Beam Angle: | 150x65 Degree | Lamp Body: | Black / Gray |
| Housing Colour: | Classic Black / Dark Gray | Solar Panel: | Mono-crystalline Silicon |
| Sensor Type: | Microwave Motion Sensor | Efficiency: | 160lm/w |
| Lead Time: | 7-10 Days | ||
| High Light: | SAA Solar LED Street Light,IP66 40W Solar LED Street Light,SAA Solar Panel Street Light |
||

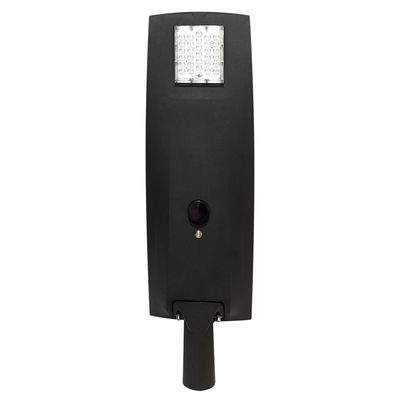

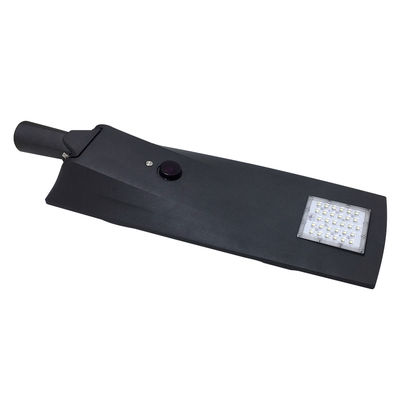

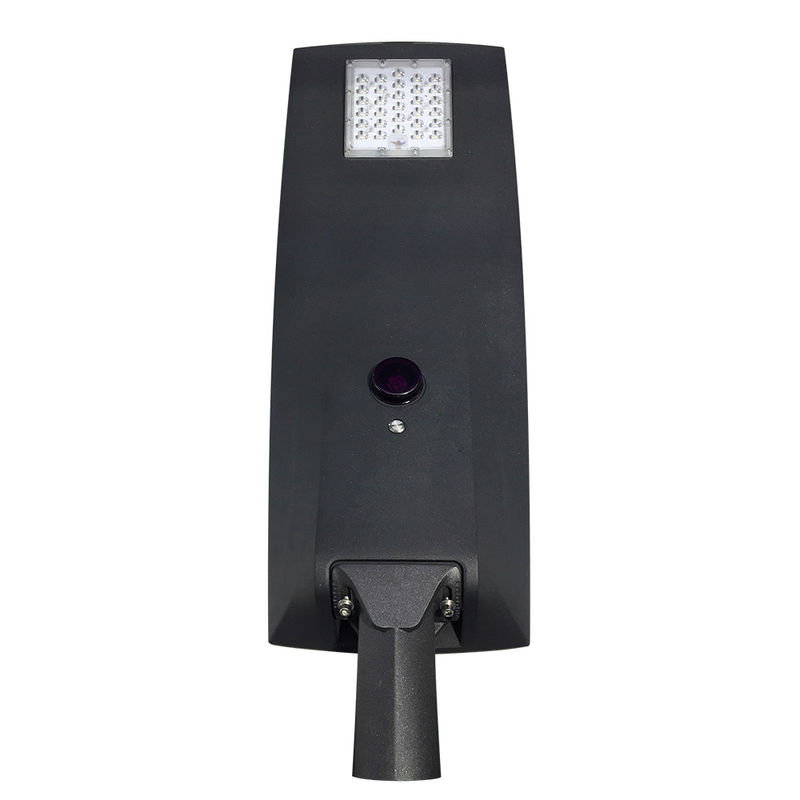

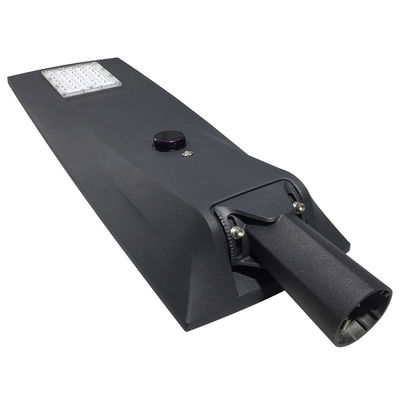

40W IP66 ROHS SAA Solar LED Street Light Beam Angle 150*65 Degree
Ip66 Waterproof 12v 40ah Lithium Battery 40w Beam Angle 150*65 Degree Solar Led Street Light
Features:
1> The intergration of design, no cable, the installation is very convenient.
2> The Mono-crystalline solar panel, LED lights, lithium battery, intelligent controller integrated Aluminum Alloy shell.
3> It used of 18650 lithium battery (lithium iron phosphate battery),fight the high temperature,keep long life.
4> When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
5> It used of alloy material as the main structure,with good rust prevention,corrosion protection.
6> The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.
7> time control + light sensor control+ motion sensor control
8> Motion and light sensor built in:solar street light goes on at dusk at 20% brightness(Brightness adjustable). Can go from 20% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 20% lighting for saving power when no motion(Brightness adjustable); 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).
Specification:
|
Par NO Parameter |
LY-ST30040PW |
LY- ST30040WW |
LY- ST30040NW |
|
Battery |
18650 lithium battery 12V 50 Ah |
||
|
Beam angle |
150x65° |
150x65° |
150x65° |
|
Pole diameter |
60MM |
60MM |
60MM |
|
Light output |
40W |
40W |
40W |
|
Luminous flux(lm) |
8120 |
7925 |
8000 |
|
Color Temperature |
Pure white:5000K |
Warm white: 3000K |
Neutral white:4000K |
|
Solar panel |
50W /18V Sunpower Brand mono crystalline silicon panel |
||
|
CRI |
＞70 |
||
|
Chip Brand |
Lumileds Luxeon 5050 |
||
|
Operating time |
Full power >24 hours ,Intelligent mode 6-8 days |
||
|
Control Mode |
Day Light Control + Sensor |
||
|
Material |
Die Casting Aluminum |
||
|
Luminous efficiency(lm/w) |
＞160 |
||
|
Lifespan(hrs) |
＞50000 |
||
|
IP Rating |
IP66 |
||
|
Installation height |
4~8M |
||
|
Size(mm) |
945x298x127 |
945x298x127 |
945x298x127 |
|
Net Weigh(kg) |
11 |
11 |
11 |
|
Package Size(mm) |
1000*340*180 |
1000*340*180 |
1000*340*180 |
|
Package Quantity(Pcs) |
1 |
1 |
1 |
|
Gross Weigh(kg) |
12.1 |
12.1 |
12.1 |
Distribution Curve
Operation & Storage:
- Option ambient temperature: -30-60 degree Celsius.
- Storage ambient temperature: -20-60 degree Celsius
- Recommended installation height: 4-8 meters
Package Diagram:
