Product Details:
Payment & Shipping Terms:
|
Light Source: | LED | Ip Rating: | IP 66 |
---|---|---|---|
Input Voltage(v): | AC100-277V | Cri (ra>): | 80 |
Item Type: | Street Lights | Working Lifetime(hour): | 50000 |
Warranty(year): | 5 | Lamp Luminous Flux(lm): | 6000, 7500, 9000 |
Working Temperature(℃): | -30 - 60 | Application: | ROAD,outdoor,Highway,Garden,courtyard |
Product Name: | Petrel LED Street Lights | Lamp Luminous Efficiency(lm/w): | 150 |
Beam Angle(°): | TYPE III 150*80 | Lamp Body Material: | Die Cast Aluminum+PC |
Color Temperature(cct): | 2700K-6500K | Power: | 20W,30W,40W,50W,60W |
Light Body Color: | Black/Grey | Dimmable: | 1-10V/DALI |
IP Rating / IK: | IP66 / IK10 | Chip Brand: | Luxeon 3030 |
LED Driver: | MEAN WELL / INVENTRONICS | ||
High Light: | 40W LED Street Lights,40W Commercial Outdoor LED Lighting,40W Urban Street Light |

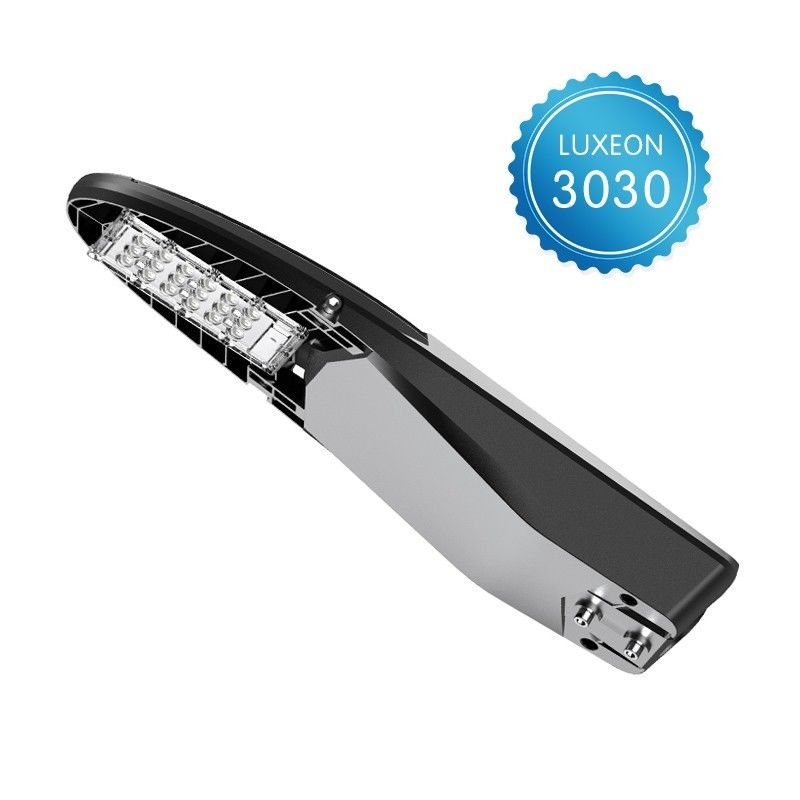

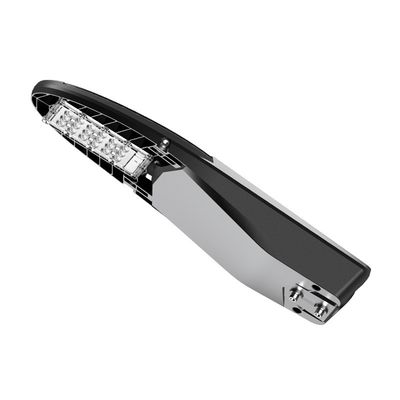

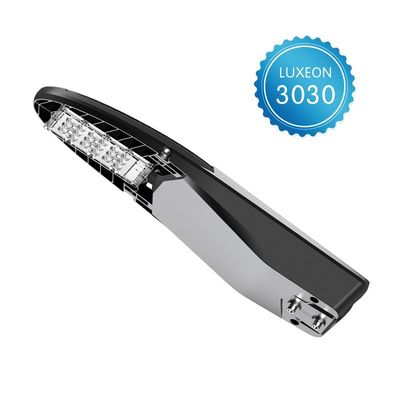

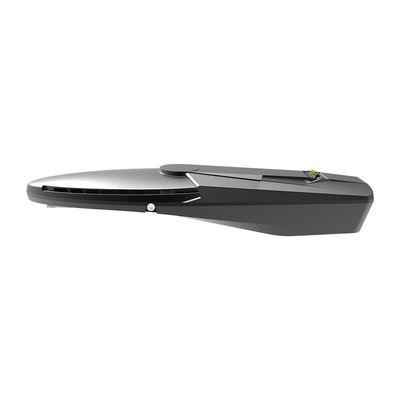

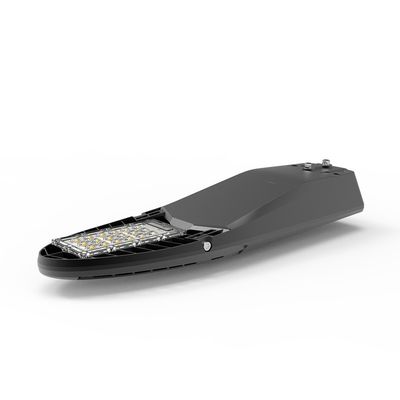

40W 50W 60W Luxeon 3030 New Petrel LED Street Lights 150LM/W
Product Specification
Part NO. Parameter |
LY-ST80020XX | LY-ST80030XX | LY-ST80040XX | LY-ST80050XX | LY-ST80060XX |
Power | 20W | 30W | 40W | 50W | 60W |
Luminous flux(lm) | 3000 | 4500 | 6000 | 7500 | 9000 |
Input Voltage | AC100~240V 50/60HZ | ||||
Beam angle | 153*80° | ||||
Pole Diameter | 60mm | ||||
Chip Brand | Luxeon 3030 | ||||
Driver | Meanwell/Inventronics | ||||
CRI | >75 | ||||
Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | ||||
Lifespan(hrs) | >50000 | ||||
Luminous efficiency(lm/w) | >150 | ||||
Material | Die Cast Aluminum | ||||
IP Rating/IK | IP66/IK10 |
Product Features
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
• Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,
high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.
