Product Details:
Payment & Shipping Terms:
|
| LED Street Light: | 40W | LED Chips: | Lumileds Luxeon 5050 |
|---|---|---|---|
| LED Driver: | Inventronics Driver | Whole Lamp Efficiency: | >160Lm/W |
| CRI: | >70 | Material: | PC Cover+Aluminum Housing |
| High Light: | 40W LED Street Light,70CRI 40W LED Street Light,Luxeon 5050 Decorative Street Lights |
||

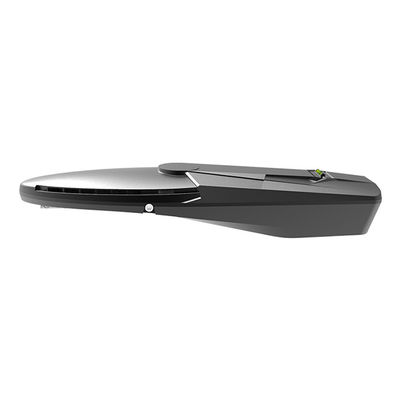

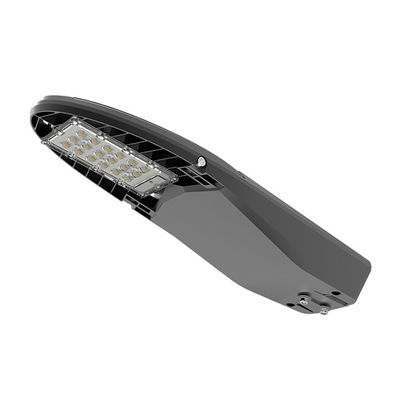

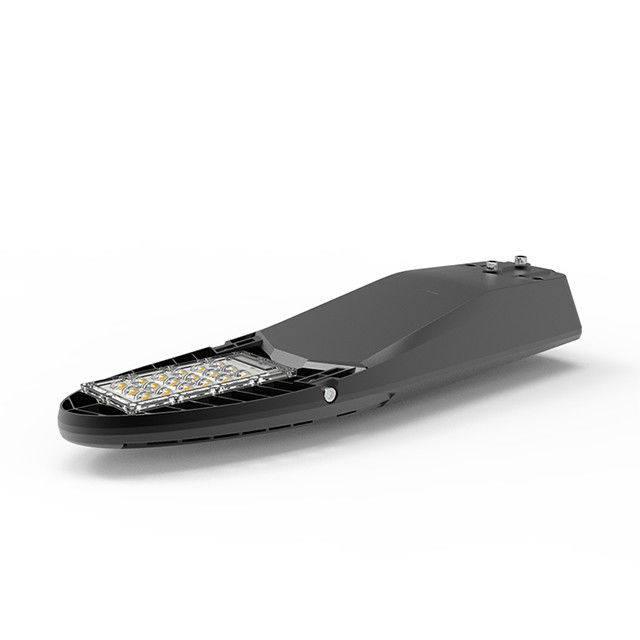

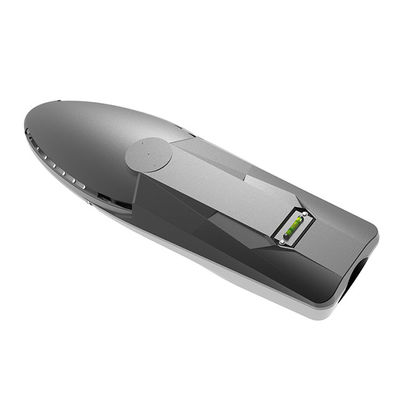

Luxeon 5050 40W LED Street Light Die Custing Aluminum Housing
40W led street lighting with high efficiency for roadway lighting fixture.
1. Ouitlook:
2. Application:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
3. Features:
1) The shell adopts die-casting integral molding, which has higher safety and longer life.
2) The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3) The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4) Using Lumileds Luxeon 3030 lamp beads, the luminous efficiency is as high as 150lm/w.
5) The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6) The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
7) Waterproof and dustproof grade: IP66, protection grade IK10;
8) The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.
4. Specification:
|
Par NO Parameter |
LY-ST81020XX |
LY-ST81030XX |
LY-ST81040XX |
LY-ST81050XX |
LY-ST81060XX |
|
Input voltage |
AC100V～277V 50/60HZ / DC12-24V |
||||
|
POWER(W) |
20W |
30W |
40W |
50W |
60W |
|
Luminous flux(lm) |
3000 |
4440 |
5800 |
7150 |
8400 |
|
Chip Brand |
LUXEON 5050 |
||||
|
LED Quantity (pcs) |
18 |
||||
|
Beam Angle |
TYPE III 150*80 |
||||
|
CRI |
70/80 |
||||
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
||||
|
Luminous efficiency(lm/w) |
＞160 |
＞158 |
＞155 |
＞153 |
＞150 |
|
LED Driver |
MEAN WELL / INVENTRONICS |
||||
|
Lifespan(h) |
＞50000 |
||||
|
IP Rating / IK |
IP66 / IK10 |
||||
|
Material |
ADC 12 |
||||
|
Dimmable |
1-10V/DALI |
||||
|
Light body color |
Black/Grey |
||||
|
working environment |
Temperature -20 to +45°C, Relative Humidity 20~90% |
||||
|
Storage environment |
Temperature -20 to +60°C, Relative Humidity 5~95% |
||||
|
Size(mm) |
L580*W180*H106mm (L22.83*W7.09*H4.17Inch) |
||||
|
Net Weigh(kg) |
2.5kg |
||||
|
Package Size(mm) |
L614*W222*H162mm (L24.17*W8.74*H6.38inch) |
||||
|
Package Quantity(Pcs) |
1 |
||||
|
Gross Weigh(kg) |
3.3 |
||||
|
4-8 |
|||||
5. Package:
|
Name |
Size |
Quantity |
N.G |
G.W |
|
Inner box |
L614.0*W222.0*H162.0mm L24.17*W8.74*H6.38inch |
1pcs |
2.5kg |
3.3kg |
|
Outer box |
L632.0*W456.0*H348.0mm L24.88*W17.95*H13.70inch |
4pcs |
10.0kg |
14.2kg |
6. Projects:
