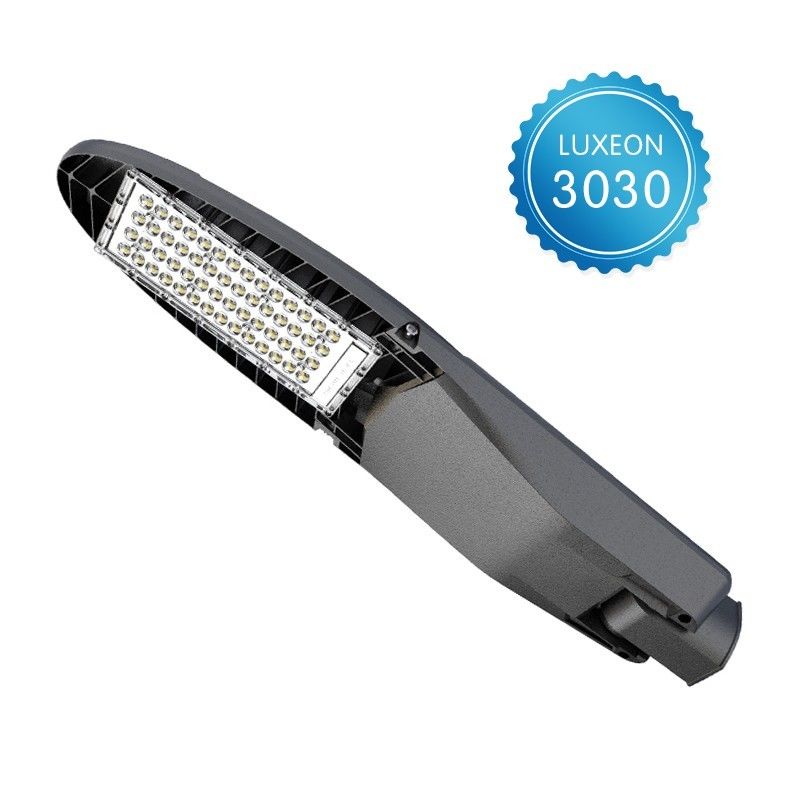

Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030

Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030
Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030 Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030 Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030 Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030

Large Image :  Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030

Product Details:

Place of Origin: Shenzhen, CHina
Brand Name: Leyond
Certification: CE, ROHS, EMEC
Model Number: LY-ST81120XX;LY-ST81150XX;LY-ST81180XX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs/week
Detailed Product Description
Product Name: New Petrel LED Street Lights Power: 120W,130W, 140W, 150W, 160W, 170W, 180W
Ip Rating: IP66 Input Voltage(v): AC100-277V
Light Source: LED Cri (ra>): 80
Item Type: Street Lights Working Lifetime(hour): 50000
Warranty(year): 5 Lamp Luminous Flux(lm): 18000-27000
Working Temperature(℃): -30 - 60 Application: ROAD,outdoor,Highway,Garden,courtyard
Lamp Luminous Efficiency(lm/w): 150 Beam Angle(°): T3, 150*80
Lamp Body Material: Aluminum+PC Color Temperature(cct): 2700K-6500K
Driver Brand: Meanwell/Iventronics Driver LED Chips: Luxeon 3030
High Light:

Luxeon 3030 LED Street Lighting

,

IP66 LED Street Lighting

,

IP66 LED Shoebox Light

Outdoor Parking Lot LED Street Lighting 120W 150W 180W Luxeon 3030



Outdoor Area Parking Lot LED Shoebox Light 120W 150W 180W



Product Specification

Part NO.

Parameter

LY-ST80120XX LY-ST80130XX LY-ST80140XX LY-ST80150XX LY-ST80160XX LY-ST80170XX LY-ST80180XX
Power 120W 130W 140W 150W 160W 170W 180W
Luminous flux(lm) 18000 19500 21000 22500 24000 25500 27000
Input Voltage AC100~240V 50/60HZ
Beam angle 153*80°
Pole Diameter 60mm
Chip Brand Luxeon 3030
Driver Meanwell/Inventronics
CRI >75
Color Temperature Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >150
Material Die Cast Aluminum
IP Rating/IK IP66/IK10



Product Features

High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.

Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.

Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.

Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,

high temperature, which fully ensure long life span and high stability of the products.

Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

Green environmental protection, no UV light and infrared radiation, no mercury pollution.

Nice appearance and non-fouling properties, Protection class IP66.
Work without strobe, fast transient response; A wide range of working voltage.
2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the
death rate of the leds.





FAQ



1. Are you factory direct?



As a professional led lighting manufacturer, established in 2013, specilize in led panel light, led corn light,led flood light . Our products are mainly exported to Europe, South America, and some other countries and areas.



2. Do you have a special price and service for wholesale?



Leyond Lighting is keeping search a long term business cooperation with our clients, as a professional led lighting manufacturer, we fully support and assist on service, to offer you the most competitive price with high quality product is our responsible.



3. What payment methods can I use? And how secure is my payment?



We accept your payment through Bank Transfer,Western Union, LC,etc



4. How long does it take for my order to be shipped? And how long can I receive it?



Generally, your order will be shipped within 7 working days after your payment received by us. We devotes to be a fastest delivery led lights supplier.



5. How about the warranty?



We offer 2/3/5 years warranty. All products are gone through strict test by our experienced QC before shipment. During in warranty time, if any quality problem, we will be fully responsible for it.
