Item Type: | Street Lights | Power: | 100W |
---|---|---|---|
Lamp Luminous Efficiency(lm/w): | 160LM/W | Beam Angle(°): | 150*85 |
Lamp Body Material: | Aluminum+PC | PCB: | Aluminum 2MM |
Led Light Source: | Luxeon SMD5050 | Application: | ROAD, Outdoor, Highway, Garden, Courtyard |
Warranty: | 5 Years | Certificate: | CE ROHS ENEC |
High Light: | IP66 100W LED Street Lighting,10KV SPD LED Street Lighting,IP66 Led Street Light 100w |

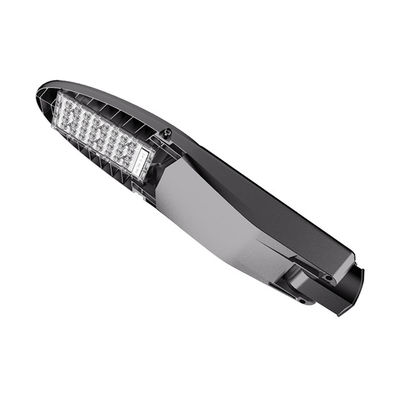

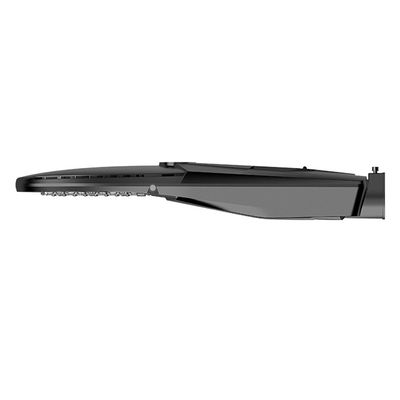

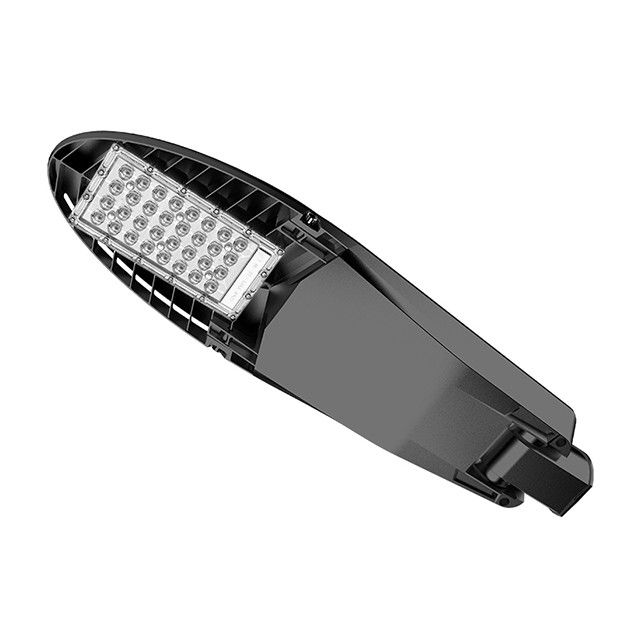

Petrel IP66 100W LED Street Lighting For Tollless Maintainence
Leyond newest design IP66 Petrel LED Street Lights 100W Tollless maintainence 10KV SPD Spirit Level available
Specification
Par NO Parameter |
LY-ST81080XX | LY-ST81090XX | LY-ST81100XX | LY-ST81120XX |
Input voltage | AC100V~277V 50/60HZ / DC12-24V | |||
POWER(W) | 80W | 90W | 100W | 120W |
Luminous flux(lm) | 12800 | 13950 | 15000 | 16800 |
Chip Brand | LUXEON 5050 | |||
LED Quantity (pcs) | 32 | |||
Beam Angle | TYPE III 150*80 | |||
CRI | 70/80 | |||
Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | |||
Luminous efficiency(lm/w) | >160 | >155 | >150 | >140 |
LED Driver | MEAN WELL / INVENTRONICS | |||
Lifespan(h) | >50000 | |||
IP Rating / IK | IP66 / IK10 | |||
Material | ADC 12 | |||
Dimmable | 1-10V/DALI | |||
Light body color | Black/Grey | |||
working environment | Temperature -20 to +45°C, Relative Humidity 20~90% | |||
Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% | |||
Size(mm) | L703*W200*H109mm (L27.68*W7.88*H4.29Inch) | |||
Net Weigh(kg) | 4.4 | |||
Package Size(mm) | L743*W242*H154mm (L29.25*W9.53*H6.06inch) | |||
Package Quantity(Pcs) | 1 | |||
Gross Weigh(kg) | 5.2 | |||
Installation height(m) | 6-1 |
Application
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk,
residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
5. Features
1. The shell adopts die-casting integral molding, which has higher safety and longer life.
2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4. Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6. The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;
8. The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.
6. Distribution Curve
7. Package
Inner box L743*W242*H154mm 1pcs 4.2kg 4.9kg
Outer box L760*W254*H332mm 2pcs 8.4kg 10.3kg
8. Notes
This product provides a 5-year warranty period from the date of purchase.
During the warranty period, if the product fails under normal use, the company will
provide free maintenance services. During the warranty period, please strictly abide
by the product usage specifications:
1. Before use, please read the installation manual in detail for correct installation;
2. Please check carefully before use. If any abnormal phenomenon is found
during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will be deemed to
automatically give up warranty.
