Product Details:
Payment & Shipping Terms:
|
| Beam Angle: | 150*80 Degree | Product Name: | LED Street Light |
|---|---|---|---|
| Warranty: | 5 Years | High Efficiency: | 160lm/w |
| Power: | 180W | Chip Brand: | 5050 |
| Driver: | Meanwell | ||
| High Light: | 180w IP66 LED Street Light,IP66 LED Street Light,IP66 led road lighting |
||
Outdoor 180w IP66 LED Street Light CB ENEC CE RHOS Certification
CB ENEC CE RHOS Certification Outdoor IP66 180w Petrel Led Street Light
Features
Specification:
|
Par NO Parameter |
LY-ST81120XX | LY-ST81150XX | LY-ST81180XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V | ||
| POWER(W) | 120W | 150W | 180W |
| Luminous flux(lm) | 19200 | 23250 | 27000 |
| Chip Brand | LUXEON 5050 | ||
| LED Quantity (pcs) | 54 | ||
| Beam Angle | TYPE III 150*80 | ||
| CRI | 70/80 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| Luminous efficiency(lm/w) | ＞160 | >155 | >150 |
| LED Driver | MEAN WELL / INVENTRONICS | ||
| Lifespan(h) | ＞50000 | ||
| IP Rating / IK | IP66 / IK10 | ||
| Material | ADC 12 | ||
| Dimmable | 1-10V/DALI | ||
| Light body color | Black/Grey | ||
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% | ||
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% | ||
| Size(mm) | L806*W200*H109mm (L31.73*W7.88*H4.29Inch) | ||
| Net Weigh(kg) | 4.8 | ||
| Package Size(mm) | L847*W242*H154mm (L33.35*W9.53*H6.06inch) | ||
| Package Quantity(Pcs) | 1 | ||
| Gross Weigh(kg) | 5.6 | ||
| Installation height(m) | 8-12 | ||
Distribution Curve (180W)

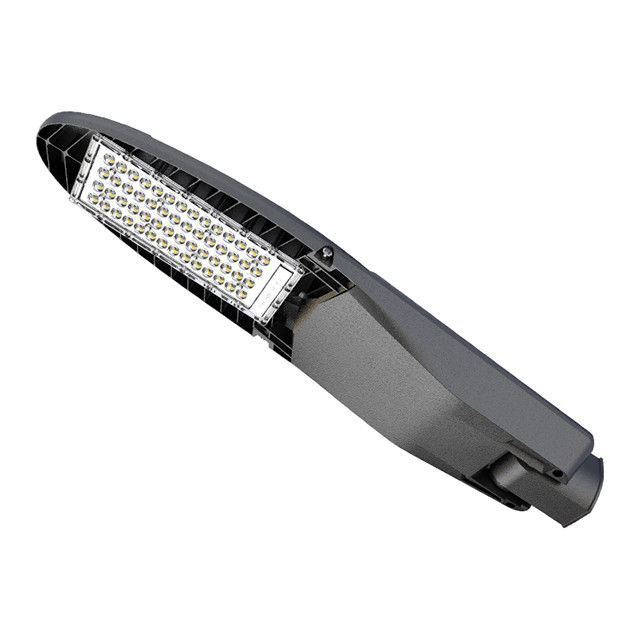

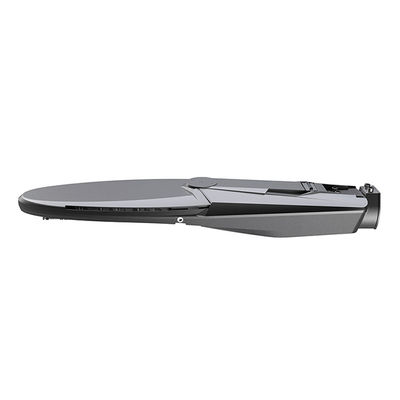

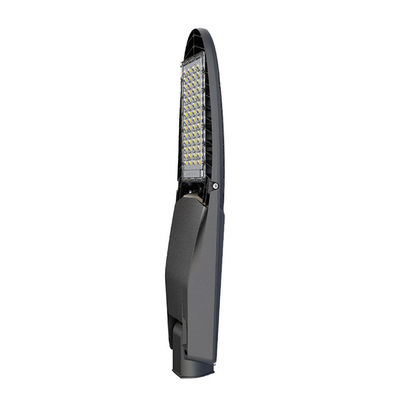

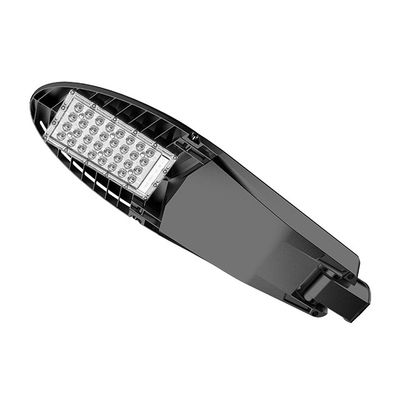

Outlook:
Package:
| Name | Size | Quantity | N.G | G.W |
| Inner box |
L847*W242*H154mm (L33.35*W9.53*H6.06inch) |
1pcs | 4.8kg | 5.6kg |
| Outer box |
L865*W254*H332mm L34.06*W10.0*H13.07inch |
2pcs | 9.6kg | 11.9kg |
Certification:
Related Production:
Testing Machine
Exhibition
Notes:
This product provides a 5-year warranty period from the date of purchase. During the warranty period, if the product fails under normal use, the company will provide free maintenance services. During the warranty period, please strictly abide by the product usage specifications:
1. Before use, please read the installation manual in detail for correct installation;
2. Please check carefully before use. If any abnormal phenomenon is found during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will be deemed to automatically give up warranty
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy light, LED module, (Solar)LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.
6. How to deliver the goods?
A: Small order ship by DHL,FEDEX,UPS,TNT.etc International express,big order by sea.
