Product Details:
Payment & Shipping Terms:
|
Beam Angle: | 150*80 Degree | Product Name: | LED Street Light |
---|---|---|---|
Warranty: | 5 Years | High Efficiency: | 160lm/w |
Power: | 150W | Chip Brand: | 5050 |
Driver: | Meanwell | ||
High Light: | 160lm/W LED Street Lighting,IK10 LED Street Lighting,IP66 Commercial Outdoor Led Lighting |
IP66 IK10 150W 160lm/W LED Street Lighting Commercial Outdoor Use
IP66 5 Years Warranty Outdoor Road Lamp IK10 150W Petrel Led Street Light
Features
Specification:
Par NO Parameter |
LY-ST81120XX | LY-ST81150XX | LY-ST81180XX |
Input voltage | AC100V~277V 50/60HZ / DC12-24V | ||
POWER(W) | 120W | 150W | 180W |
Luminous flux(lm) | 19200 | 23250 | 27000 |
Chip Brand | LUXEON 5050 | ||
LED Quantity (pcs) | 54 | ||
Beam Angle | TYPE III 150*80 | ||
CRI | 70/80 | ||
Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
Luminous efficiency(lm/w) | >160 | >155 | >150 |
LED Driver | MEAN WELL / INVENTRONICS | ||
Lifespan(h) | >50000 | ||
IP Rating / IK | IP66 / IK10 | ||
Material | ADC 12 | ||
Dimmable | 1-10V/DALI | ||
Light body color | Black/Grey | ||
working environment | Temperature -20 to +45°C, Relative Humidity 20~90% | ||
Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% | ||
Size(mm) | L806*W200*H109mm (L31.73*W7.88*H4.29Inch) | ||
Net Weigh(kg) | 4.8 | ||
Package Size(mm) | L847*W242*H154mm (L33.35*W9.53*H6.06inch) | ||
Package Quantity(Pcs) | 1 | ||
Gross Weigh(kg) | 5.6 | ||
Installation height(m) | 8-12 |
Distribution Curve (180W)

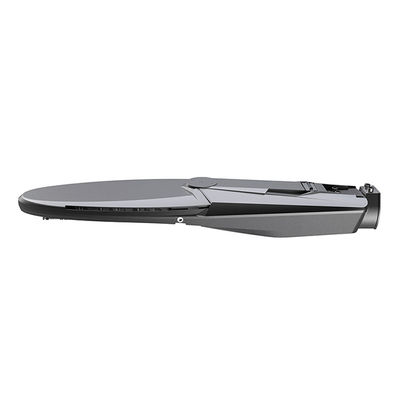

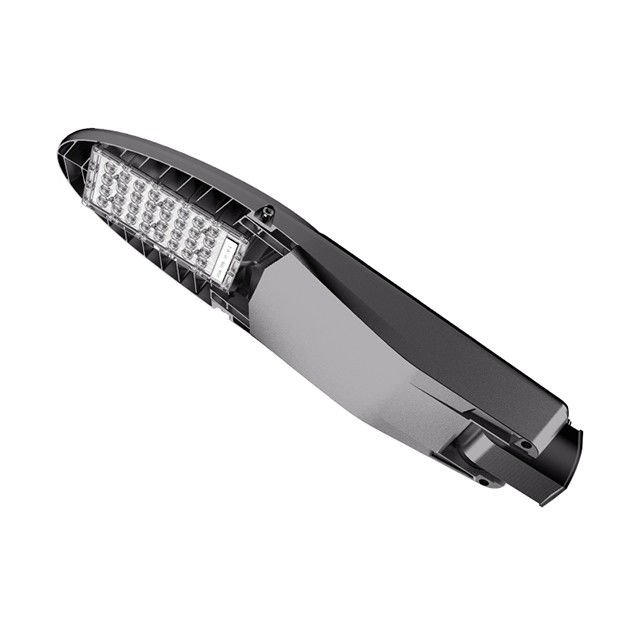

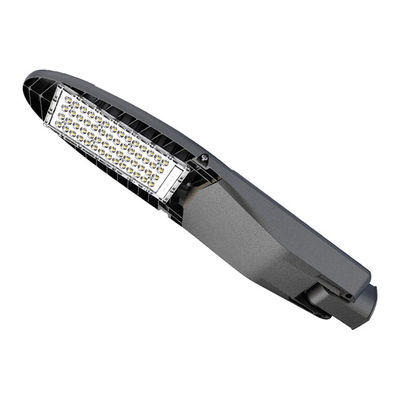

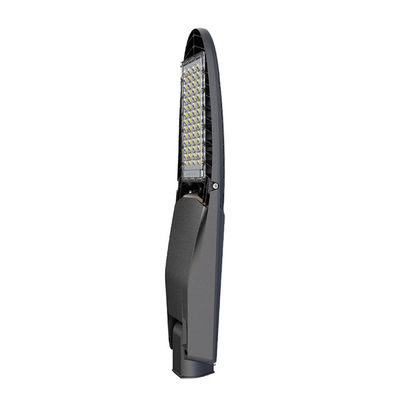

Outlook:
Package:
Name | Size | Quantity | N.G | G.W |
Inner box |
L847*W242*H154mm (L33.35*W9.53*H6.06inch) |
1pcs | 4.8kg | 5.6kg |
Outer box |
L865*W254*H332mm L34.06*W10.0*H13.07inch |
2pcs | 9.6kg | 11.9kg |
Application cases:
Installation instructions:
1. Switch off the power supply
2. Through the AC electrucal cable in the lamp pole
3. Clear the Brown / Blue / Green Yellow pole
4. Electrical wiring connection
5. Tight the screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional electrician)
