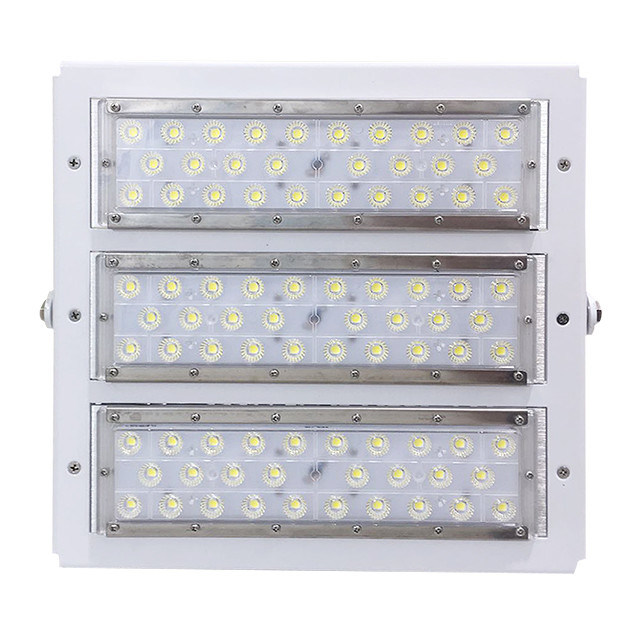

120W IP66 Waterproof Outdoor High Power LED Flood Light With Meanwell Driver
120W,140W,160W LED Flood Light Technical Data:
|
Input Voltage
|
100-240V AC 50/60Hz
|
|
Power factor
|
≥0.95
|
|
Power Efficiency
|
≥85%
|
|
LED Power
|
100W:2X50W
120W:2X60W
140W:2X70W
|
|
LED Luminous efficiency
|
≥90lm/W
|
|
CRI
|
Ra>70
|
|
Beam Angle
|
100º
|
|
Color Temperature
|
Warm white WW 2800-3500K
Neutral white NW 4000-5000K
Pure white PW 5500-7000K
R/G/B/Other optional
|
|
Operatinal condition
|
Temperature:-30℃~50℃
Humidity:10%-90%RH
|
|
Model
|
Product Dimension(mm)
|
Power
(W)
|
LED
luminous flux
|
Average Iilluminance
|
Facula Area
|
N.W
|
|
LY-FL20120PW
|
L600xW285xH215
|
117W
|
8500-9500lm
|
6m=42lux
8M=25lux
10M=19lux
|
6M=10x10M
8M=14x14M
10M=17x17M
|
12KG
|
|
LY-FL20140PW
|
L600xW285xH215
|
138W
|
10200-11400lm
|
6m=46lux
8M=28lux
10M=21lux
|
6M=10x10M
8M=14x14M
10M=17x17M
|
12KG
|
|
LY-FL20160PW
|
L600xW285xH215
|
160W
|
11900-13300lm
|
6m=55lux
8M=32lux
10M=25lux
|
6M=10x10M
8M=14x14M
10M=17x17M
|
12KG
|
Optical Parameters:
Application:
1. Projector / Spotlight/ Tunnel Lighting
2. Pathway Lighting / Park Lighting
3. Garden Lighting/Backyard Lighting
Features:
1. Multi-Chip on Lead Frame, Single Module LED Package Design
2. System Design Integrating Power Supply, LED Light Engine, and Heat Sink
3. Over Current, Over Voltage, Over Heat, Thunder Protection
4. Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
5. Long lifespan for LED 50,000 hrs
6. 100% Recycle, No Pollution, and UV, IR
Operation and Storage Condition:
1.Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
2. Input Voltage 85-265V AC, 50/60Hz
3. Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
4. Mounting Height : Suitable for 8~10m height
Certificate:
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the wholly-owned subsidiary of LiYang Electronic(Hongkong)Limited. We are High-Tech enterprise who concentrate and specialize in developing and producing Eco-friendly high power LEDLightings.
Leyond company is located in Shenzhen, owns a 6000m2 factory with high qualified clear workshops and 300 employees. Together with
outstanding optical & technical personnels and quality engineers; equipped with advance automaticity Die Bonding & chip bondingequipments and molding machines; perfect quality-testing and safeguard measures; all of these promote Leyond to be the leader in the industry.
“Innovation is the base of development; qualified service is the foundation of existence”, Leyond keeps up with marketing trendbased on customers’ requirements, try to supply the best products with best price & quality and humanistic service.
LEYOND is the Top 3 LED street light exporter from China,Our major products include Led Street lights, Led flood
light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000,the quality management system from purchasing to designing to manufacturing.
Our products are exported to Europe, Americas, Africa and other Asian countries with UL,ROHS,CE and CB international standard.
Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers,
establishing long-term cooperative relationship with them.
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy Light,LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
6. How to deliver the goods?
A: Small order ship by DHL,FEDEX,UPS,TNT.etc International express,big order by sea.
Our led street light have CE,EMC,LVD,ROHS,CB,ENEC,ISO 9001 Certificates.
