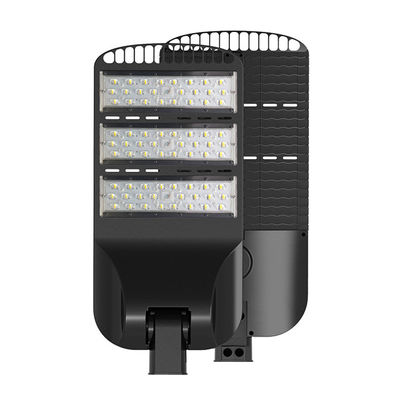

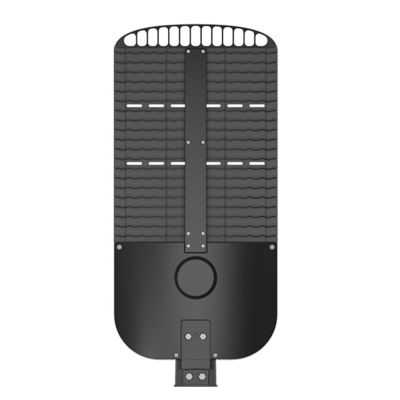

Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt

Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt
Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt

Large Image :  Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: ROHS,ISO9001:2008
Model Number: LY-ST10180XX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union or Paypal
Detailed Product Description
Power: 180W Driver: Mean Well Driver
Warranty: 5 Years IP Rating: IP66
Temperature: -40-+60 Degree LED Chip: Lumileds
High Light:

led billboard lighting

,

billboard lamp

Toolless Mean Well Driver Outdoor LED Street Lights / Lamp IP66 180Watt



Features:

  • Absolutely unique mold,make your lighting special and fantastic.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • Anti-glare and uniform light level to avoid any visual discomfort.
  • high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
  • Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.
  • Nice appearance and non-fouling properties, Protection class IP66.
  • Work without strobe, fast transient responseA wide range of working voltage.

Specification:

Par NO

Parameter



LY-ST10180PW



LY- ST10180WW



LY- ST10180NW

Inptut voltage AC100V~240V 50/60HZ / DC12-24V
Sysem consumption(W) 180 180 180
Luminous flux(lm) 29700 27000 28800
Chip Brand Lumileds 5050 Lumileds 5050 Lumileds 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI >75
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL HLG-80H
Luminous efficiency(lm/w) >165
Lifespan(hrs) >50000
IP Rating IP67
Dimmable YES&NO YES&NO YES&NO
Size(mm) 642x290x120 642x290x120 642x290x120
Net Weigh(kg) 6.9 6.9 6.9
Package Size(mm) 685*350*180 685*350*180 685*350*180
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 8.2 8.2 8.2

Distribution Curve:(80w)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 3

package:

Inner box Size: 685mm×350mm×180mm
Outer box Size: 700mm×360mm×380mm (2 PCS LED Street Lights)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 5

Assembly –Electricity:

80Watt  IP66 Waterproof High Brightness  LED Street Lights 2700k / 4000k / 5000k For Roadway 2

Optional function:

1)Daylight automatically controlling ON / OFF

Turn-On Light Level: 10 Lux or at customer’s request
Turn-Off Light Level: 50 Lux or at customer’s request
Turn-On Time Delay: 10-15s
Turn-Off Time Delay: 10-15s
2) Zigbee remote communication controlling
ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE
communication standard. It has the advantages of remote communication,
strong anti-interference capability and flexible networking, realizing
peer-to-peer and peer-to-multi peer transparent data transmission among
devices, and constructing star network or mesh network topology.
ZIGBEE controller consists of a current and voltage measurement
circuit, which collect real-time load performance and power consumption of
street lig
Warning
l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized

1. Are you factory direct?



As a professional led lighting manufacturer, established in 2013, specilize in led panel light, led corn light,led flood light . Our products are mainly exported to Europe, South America, and some other countries and areas.



2. Do you have a special price and service for wholesale?



Leyond Lighting is keeping search a long term business cooperation with our clients, as a professional led lighting manufacturer, we fully support and assist on service, to offer you the most competitive price with high quality product is our responsible.



3. What payment methods can I use? And how secure is my payment?



We accept your payment through Bank Transfer,Western Union, LC,etc



4. How long does it take for my order to be shipped? And how long can I receive it?



Generally, your order will be shipped within 7 working days after your payment received by us. We devotes to be a fastest delivery led lights supplier.



5. How about the warranty?



We offer 2/3/5 years warranty. All products are gone through strict test by our experienced QC before shipment. During in warranty time, if any quality problem, we will be fully responsible for it.
