200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL

China 200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL supplier
200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL supplier 200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL supplier 200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL supplier 200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL supplier 200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL supplier

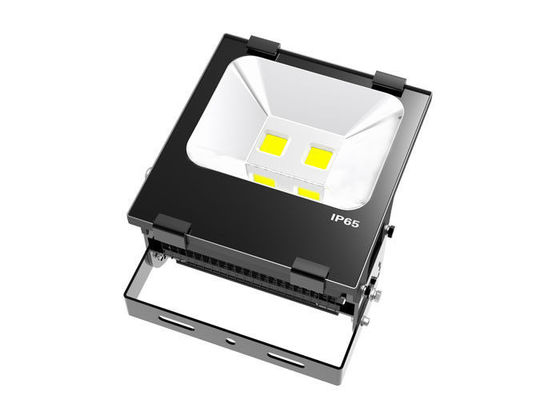

Large Image :  200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL

Product Details:

Place of Origin: Guangdong,China
Brand Name: Leyond
Certification: CE,RoHS,UL
Model Number: LY-FL18200-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD120-USD225/pcs
Packaging Details: strong foam inside and professional carton for exporting
Payment Terms: Western Union, T/T
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Dimensioin: 315*310*187mm LED Lumens: 120lm/w
Power: 200W 20000lm Warranty: 5 Years
Wattages: 100w/140w/200w Beam Angle: 120°



200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL











Product Description





Product  Factory Price 200W LED flood light, CE ROHS,UL
Item   LY-FL 10200XX-BB /WW-BB
Power  200W 20000lm
Voltage  AC100-240V / 50-60HZ
PF  >0.95 THD<10%
Light Source  Bridgelux 45mil/ Epistar 35mil
Lumens  >90LM/W
Color Temp

 Cool white 6000-6500k

 Netural white 4000-4500k

 Warm white 2800-3300k

Working Voltage  AC 100-240V, 50-60 HZ
Beam Angle   120°
CRI  >70 Ra
Cable  1m PVC cable/ 3*1sqm GB standard Cable and Customered Plug
Dimensioin  315*310*187mm
Material  High quality ASA Black/ White housing



Product Features

- Full waterproof design
- High transmittance empered glass,transimittan 93%
- The radiating area 620cm²
- Multi-Chip on lead frame,single module LED package design
- System design integrating power supply,LED light engine ,and heat sink
- Over Current,Over Voltage,Over Heat,Thunder Protection
- Choice of correlated color temperatures
- Long lifespan for LED 50,000 hrs
- Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No mercury

   vapour ,No radiation,No UV,No damage with frequency switching
- IP Rating: IP65
- Power supply direct touch the radiator,in light weight

200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL



Application area

Replacing traditional High Pressure Sodium lamp or metal halide lamp.

Widely used for advertise billboard,exterior wall of hotel and related landscape lighting.



Product Dimensions

200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL

Attentions
1 All dimension units are millimeters.
2 All dimension tolerance is ±1mm unless otherwise noted.



Product Specification

Input voltage: AC85V~265V
Freqency range: 50HZ~60HZ
Tatal harmouic distortion: ≤9%
Power facor: ≥0.9
Power efficiency: >85%
Sysem consumption: 10.5



Polar Diagram of Luminance

200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL





ISOLUX CURVE

200W LED Flood Lights Outdoor High Power With Bridgelux 45mil chip COB Meanwell driver HLG UL









Our Services



1. Factory price, large monthly output

2. 3 years warranty, high quality guarantee

3. professional Export service, easy to communicate and save your much time

4. Timely delivery, let you win biggest markets advantage

5. Satisfied After-sales service, to be your reliable supplier

6. any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order
