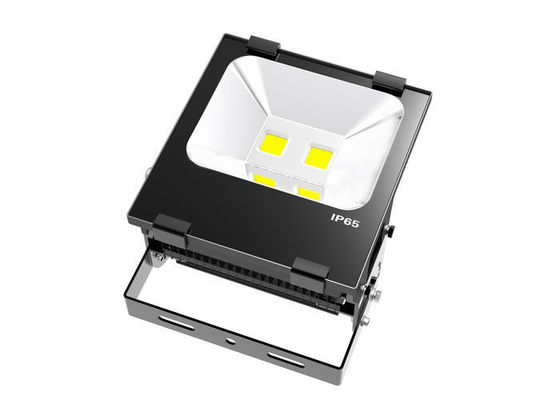

Large Image :  ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS

Product Details:

Place of Origin: Guangdong,China
Brand Name: Leyond
Certification: CE,RoHS,UL
Model Number: LY-FL18200-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD120-USD225/pcs
Packaging Details: strong foam inside and professional carton for exporting
Delivery Time: 2-5 working days for samples, 7-20 days for bulk orders
Payment Terms: Western Union, T/T
Supply Ability: 100000pcs per month
Detailed Product Description
LED Chip: Bridgelux LED Lumens: 120lm/w
LED Driver: Meanwell CLG/HLG Certificate: CE,RoHS,UL
Warranty: 5 Years Wattages: 100w/140w/200w
IP Rating: IP65
High Light:

led outdoor flood lights

,

outside led flood lights

ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS



CE RoHS LED Flood Light 10w/20w/30w/50w/70w/100w/150w/200w

Bridgelux 45mil Chip COB and Leyond/Meanwell driver, 3 years warranty



ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS 0







Product Description





Product  Factory Price 200W LED flood light, CE ROHS,UL
Item   LY-FL 10200XX-BB /WW-BB
Power  200W 20000lm
Voltage  AC100-240V / 50-60HZ
PF  >0.95 THD<10%
Light Source  Bridgelux 45mil/ Epistar 35mil
Lumens  >90LM/W
Color Temp

 Cool white 6000-6500k

 Netural white 4000-4500k

 Warm white 2800-3300k

Working Voltage  AC 100-240V, 50-60 HZ
Beam Angle   120°
CRI  >70 Ra
Cable  1m PVC cable/ 3*1sqm GB standard Cable and Customered Plug
Dimensioin  315*310*187mm
Material  High quality ASA Black/ White housing



Product Features

- Full waterproof design
- High transmittance empered glass,transimittan 93%
- The radiating area 620cm²
- Multi-Chip on lead frame,single module LED package design
- System design integrating power supply,LED light engine ,and heat sink
- Over Current,Over Voltage,Over Heat,Thunder Protection
- Choice of correlated color temperatures
- Long lifespan for LED 50,000 hrs
- Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No mercury

   vapour ,No radiation,No UV,No damage with frequency switching
- IP Rating: IP65
- Power supply direct touch the radiator,in light weight

ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS 1



Application area

Replacing traditional High Pressure Sodium lamp or metal halide lamp.

Widely used for advertise billboard,exterior wall of hotel and related landscape lighting.



Product Dimensions

ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS 2

Attentions
1 All dimension units are millimeters.
2 All dimension tolerance is ±1mm unless otherwise noted.



Product Specification

Input voltage: AC85V~265V
Freqency range: 50HZ~60HZ
Tatal harmouic distortion: ≤9%
Power facor: ≥0.9
Power efficiency: >85%
Sysem consumption: 10.5



Polar Diagram of Luminance

ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS 3





ISOLUX CURVE

ASA housing Waterproof LED Flood Lights10watt - 200watt CE RoHS 4
