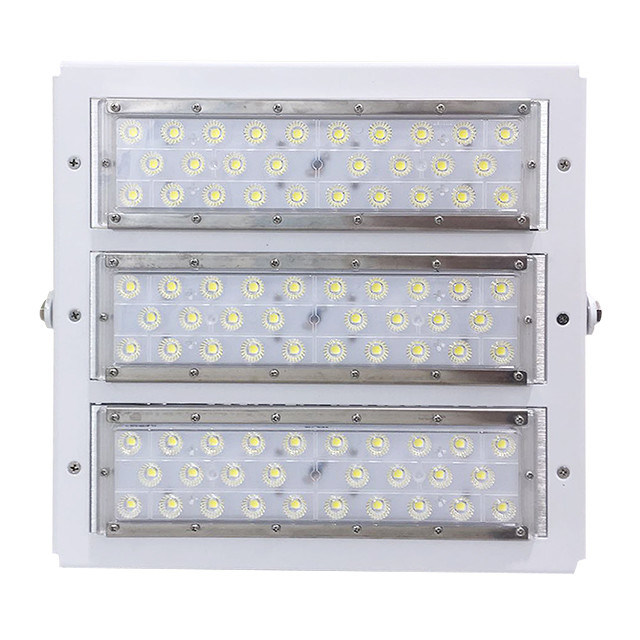

Waterproof LED Modular Flood Lights high performance for outdoor application

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Waterproof LED Modular Flood Lights high performance for outdoor application

Waterproof LED Modular Flood Lights high performance for outdoor application
Waterproof LED Modular Flood Lights high performance for outdoor application Waterproof LED Modular Flood Lights high performance for outdoor application Waterproof LED Modular Flood Lights high performance for outdoor application Waterproof LED Modular Flood Lights high performance for outdoor application

Large Image :  Waterproof LED Modular Flood Lights high performance for outdoor application

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE, RoHS
Model Number: LY-ST24150XX

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: 1pcs/box
Delivery Time: 3-15 Working Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000pcs/Week
Detailed Product Description
Application: Sports Stadiums,etc,Square,WAREHOUSE,Theme Park Material: Aluminum Alloy
Driver: Meanwell Brand LED Chip: Lumileds 5050
Beam Angle: 25/60/90, 150*65, 155*110 Warranty: 5 Years
Input Voltage: AC100-240V Color Temperature(cct): 3000k/4500k/6500k
High Light:

80W LED Modular Flood Light

,

160lm/w Aluminum LED Flood Light

,

LUXEON 5050 LED Flood Light

Waterproof LED Modular Flood Lights high performance for outdoor application

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 0

1)High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.



2)High luminous efficiency, Whole lamp output light effiency >160LM/W.



3)Adoption LEYOND exclusive Lens with light transmittance up to 98%.



4)Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.



5)There are 25°,60°, 90° beam angle options for the Lens.



6)Scientifically-designed heat dissipater with much better cooling effect.



7)For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.



8)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



9)The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.





Our Advantage

1.Your inquiry for our products will be replied in 24 hours

2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM and ODM are welcomed
4.Make the products as your requirement.
5.Protection of your sales area, ideas of design and all your private information.

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 1

Par NO

Parameter

LY-ST24150PW LY-ST24150NW LY-ST24150WW
Input voltage AC100V~240V 50/60HZ

System

consumption(W)

150 150 150
Luminous flux(lm) 24000 22200 19800
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90° 25°,60°, 90° 25°,60°, 90°
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
LED Driver MEAN WELL ELG-150 / HLG-150H

Luminous

efficiency(lm/w)

>160
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 320*316*76 320*316*76 320*316*76
Net Weigh(kg) 4.5 4.5 4.5
Package Size(mm) 420*390*135 420*390*135 420*390*135
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 5.2 5.2 5.2

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 2



High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 3

Details



Lamp Body

Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp, harmless to the human body.

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 4

Absolutely unique DESIGN, nothing on the market like it. Make your lighting special and fantastic.Scientifically-Designed heat dissipater with much better cooling effect

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 5

Perfect Light Distribution Solution:Using philips led chip to ensure high lumen and long life. Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

There are 24°,36°,60°, 90°, 160° beam angle options for the Lens.

High Luminous efficiency LED Modular Flood Light 200Watts applicable to Stadium Lighting 6

Very high quality MW power supply, input voltage AC 85-277V. The power efficiency is more than 90%, power factor greater than 0.98.



High Luminous efficiency LED Modular Flood Light 200Watts applicable to Stadium Lighting 7



High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 6

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 7

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 8

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 10

High Power AC100-240V Modular LED Flood Light Aluminum Housing Dimmable 11

High Luminous efficiency LED Modular Flood Light 200Watts applicable to Stadium Lighting 13



High Luminous efficiency LED Modular Flood Light 200Watts applicable to Stadium Lighting 14



For More Information, Pls Feel Free To Contact Us



Ultra Slim Design Mono Silicon LED Solar Street Light with Motion Sensor 15

FAQ:



1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when
choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.

2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.

3. How to place an order with your company?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
