Product Details:
Payment & Shipping Terms:
|
| LED Type: | Bridgelux Chip 3030EMC LED | LED Driver: | Meanwell HLG Series |
|---|---|---|---|
| Warranty: | 5 Years Without Worries | CRI: | Ra80 |
| Input Voltage: | AC100-240V, PF>0.95 | Color: | Warm Whtie, Natural White, Pure White |
| Beam Angle: | 25/45degree | Powers: | 150w |
| High Light: | led high bay lamps,high bay led lighting |
||

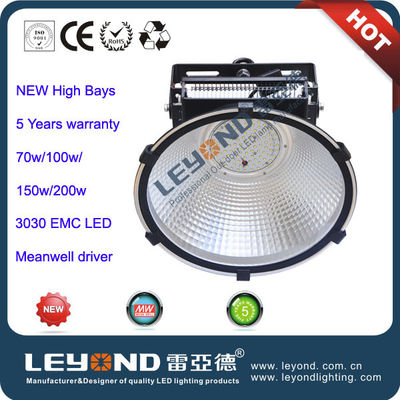

Factory Price IP65 Waterproof 3030SMD Natural White LED High Bay Lights150W Meanwell Driver
150W LED High Bay Light Specification:
| Parameter Par NO | LY-HB65150PW | LY-HB65150WW | LY-HB65150NW |
| Inptut voltage | AC100V～240V 50/60HZ | ||
| Sysem consumption(W) | ＜152 | ＜152 | ＜152 |
| Luminous efficiency(lm/w) | 88 LM/W | 80 LM/W | 83 LM/W |
| Luminous(lm) | 13600 | 12000 | 12600 |
| LED quantity(pcs) | 3030 / 150PCS | 3030 / 150PCS | 3030 / 150PCS |
| Beam Angle | 25°/45° | 25°/45° | 25°/45° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 5000-5500k | 2700-3200k | 4000-4500k |
| Meterial | Aluminum+Glass | ||
| Driver | HLG-158H | ||
| Lifespan(hrs) | ＞50000 | ||
| Size of pack(mm) | 405*405*390 | 405*405*390 | 405*405*390 |
| HighBay Size(mm) | Φ357x398 | Φ357x398 | Φ357x398 |
| Net weight(KG) | 5.7 | 5.7 | 5.7 |
| Gross weight(KG) | 6.9 | 6.9 | 6.9 |
Features:
• 11 flexible positions makes project angle can be adjusted within 180 °.
• Professional heat dissipation structure design. Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.
• Rivet the heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it is much lighter compared with similar products.
• Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span.
• Flake designed high-purity aluminum reflector angle scales , to adapt to different situations.There are 25°,45°,beam angle options for the flake designed reflector.Reflective rate could reach up to 95%.
• Over Current, Over Voltage, Over Heat, Thunder Protection
• Choice of Correlated Color Temperatures
• Long lifespan for LED 50,000 hrs
• 100% Recycle, No Pollution, and UV, IR

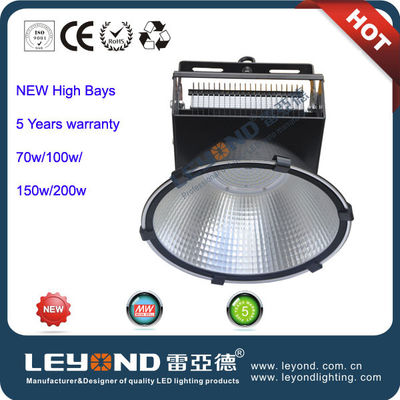

Outlook:
Photometry:
Operation and Storage Condition:
• Operation Ambient Temperature -25 to +55°C, Relative Humidity 20~90%
• Input Voltage 100-240V AC, 50/60Hz
• Storage Ambient Temperature -25to +60°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~12m height
Package:
Warning:
• Do Not Use Other Devices for LED high bay light Installation Such as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the high bay light into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Apllications:
Factory/ Gym/Square/Airport/warehouse…
Terms&Conditions:
1) T/T(30% T/T in advance, the balance paid before shipment.), PayPal, Western Union.
2) Minimum Order:.1pcs.
3) Samples can be available within 5 working days.
4) Lead time:7-10 working days for 100 to 500pcs, about 15 working days for 500 to 2000pcs.
5) Shipping freight is quoted under your requests.
6) Price term: EXW shenzhen
7) Discounts are offered based on order quantities.
8) Packaging: Neutral package, otherwise, can be customized according to customer requirements of Logo, Brand and etc.
9) OEM design and R & D production is available.
