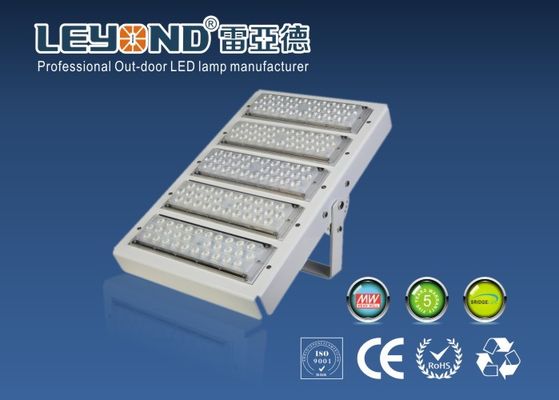

IP65 rated Led Flood Light 400w modular design,high lumens output

IP65 rated Led Flood Light 400w modular design,high lumens output
IP65 rated Led Flood Light 400w modular design,high lumens output IP65 rated Led Flood Light 400w modular design,high lumens output

Large Image :  IP65 rated Led Flood Light 400w modular design,high lumens output

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE, RoHS
Model Number: LY-ST23400PW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard Package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs/month
Detailed Product Description
Material: Aluminum+PC Cover Color: White And Black
IP Grade: IP65 Warranty: 5 Years
Luminous Efficiency: 120lm/W CRI: 50/60/70
Modules: 8 Pcs Beam Angle: 24/36/60/90D
High Light:

led lighting module

,

led modular

IP65 rated Led Flood Light 400w modular design,high lumens output

1. Features:

  • Patent Anti-glare PC cover, transimittance 90%.
  • Modular design, can work and replaced seperately. Lower the maintaining cost.
  • Teflon wire inside,3*1m2 cable
  • Thermal grease conductivity>3.8. good thermal function.
  • CRI 50/60/70/80 to meet different project requet
  • Power 50w-500w can be chosen.
  • Fast delivery time 5-10 days.

2.  Technical parameter:


Model modules number Power Input Voltage Input Current Power factor Power efficiency
LY-ST23400PW 8 400W AC90~305V
50/60Hz
1.86A/220VAC >0.99/115VAC
>0.98/230VAC
>90%
  1. Photometric Specifications:
Model modules number Power Luminous flux Luminous  efficiency CRI CCT BeamAngle
LY-ST23400PW 8 400W 48000lm 120lm/W >50

3000-3500K
4000-4500K
5000-5500K

6000-6500K

24°
36°
60°

90°
  1. Mechanical Specifications:
Model modules number Power Carton Size gross weight Net Weight IP Rating Meterial
LY-ST23400PW 8 400W 725X480X170MM 18.5kg 20.8kg IP66 Aluminum +PC



   IP65 rated Led Flood Light 400w modular design,high lumens output 0



3. Advantages:

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 24°, 36°,60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >130LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

4. FAQ:

1. How many watt you have for high power led high bay light?
      ----  50w/60/90w/100w/120w/150w/180w/200w/250w/300w/400w/500w.

2. How is the warranty?
       ----We could offer 5 years warranty, and during our warranty:

   1).  Products returned within the warranty period must be Leyond product number & date code.
   2). Products of unknown sources or without valid marking will not be accepted.
   3). Replacement items will be sent together with customer's next order shipment.

3. How is the payment term?
         ----30% T/T in advance, 70% balance before shipment. P.S: T/T, Paypal, Wester Union are OK!
4. How is the lead/production time?
            ----7~15 days (It depends on the qty of the order)
5.   Could you accept OEM?
         ------We accept OEM. OEM box, OEM sticker
Welcome to contact us for more details.
