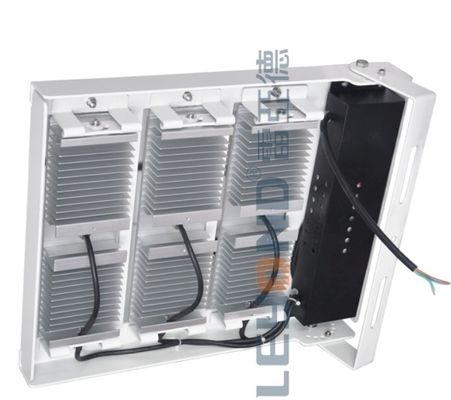

Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W

Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W
Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W

Large Image :  Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Leyond
Certification: CE RoHS
Model Number: led billboard light

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD130-USD160/pc
Packaging Details: standard export carton packing
Delivery Time: 2-5 days for samples, 7-20 days for bulk orders
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs per month
Detailed Product Description
LED Chip: Bridgelux Chip LED LED Driver: Meanwell
Warranty: 5 Years Powers: 150W/200W
Application: Billboard Lighting Light Efficiency: 110-120LM/W
High Light:

led billboard lighting

,

billboard lamp

Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W

Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W 0

Specification:


Specification
Power 150W
Material Aluminum
Type Of Chip Bridgelux
Brand Meanwell & Bridgelux
Luminous >18000LM
ColorTemperature 2700 ~  6500K
CRI Ra ≥ 65
BeamAngle 24°  36° 60° 90° 160°
Total Harmonic Distortion(THD) <15%
PF >0.95
Working Life ≥50000hrs
Warranty 3years
Dimensions
Finishing Color White
Wire connection L(Brown);N(Blue);G(Green/Yellow)
Watts option 150w
NET Weight 5.9 Kgs
Lamp Size 509x350x60mm
Install type Recessed,Hanging rod,Mounted
Package Size

box size: 570X410X100MM
 G.W:6.4kg 1pcs/ctn,




Meanwell Driver for Rotating modular led flood light



Driver brand: Meanwell CLG-150 Series
Ac input voltage range 90-305VAC/350VAC/480VAC,127-417VDC/431VDC
Power factor >0.95
Driver Safety standards Passted UL 8750/1012/60950,TUV EN61347/60950-1
Protection function Short circuit, overload, over voltage, over temperature
Emc standard EN55015,EN55022 Class-B,EN61000-3-2  Class-C
Drive IP IP65
Housing Material Aluminum



Features:

1) Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2) Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
3) There are 24°, 36°,60°, 90° beam angle options for the Lens.
4) Scientifically-designed heat dissipater with much better cooling effect.
5) High luminous efficiency, Whole lamp output light effiency >120LM/W.
6) High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
7) For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
8) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
9) The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
10) The most outstanding characteristic is not only the handle can rotate to adjust the Angle of received light of lamps and lanterns and a single module also can adjust Angle rotation,greatly increasing the effective utilization rate of light

Size of Billboard Light:

Adjustable Module Led Billboard Lights Bridgelux Chip High Lumens 120lm / W 1



Application:


1) It is applicable to large outdoor advertising lighting
2) New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Advertising Lamps. Etc
