Product Details:
Payment & Shipping Terms:
|
| Product: | UFO LED High Bay Light | Power: | 100W/150w/200w/240w |
|---|---|---|---|
| Input Voltage: | AC100-240V | LED Source: | Lumileds 3030SMD |
| Driver: | Meanwell | IP Rate: | IP65 Protection |
| Beam Angle: | 120Deg | Warranty: | 5 Years |
| PF: | >0.95 | CCT: | 2800K-6500K |
| High Light: | led high bay lamp,high bay led lighting |
||

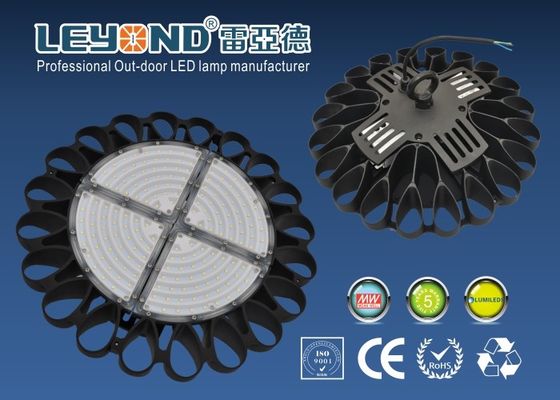

3030SMD Led High Bay 200w 240w High Bay Lighting Fixtures CRI >80 Beam 120 Degree
Specification:
| Par NO Parameter | LY-HB35100XX | LY-HB35150XX | LY-HB35200XX | LY-HB35240XX |
| Inptut voltage | AC85V~265V 50/60HZ | |||
| Sysem consumption(W) | 105 | 155 | 205 | 245 |
| Luminous flux(lm) | >10000lm | >15000 | >20000 | >24000 |
| LED quantity(pcs) | 3030SMD | 3030SMD | 3030SMD | 3030SMD |
| Beam Angle | 120° | 120° | 120° | 120° |
| CRI | >80 | |||
| Color Temperature(CREE) | 3000k,4000k,5000k,5700K, 6500K | |||
| Driver | External power supply | |||
| Luminous efficiency(lm/w) | >100 | |||
| Lifespan(hrs) | >50000 | |||
| IP Rating | IP65 | |||
| Dimmable | YES&NO | YES&NO | YES&NO | YES&NO |
| Size(mm) | Φ340x162 | Φ380x165 | Φ420x182 | Φ420x182 |
| Gross Weigh(kg) | 3.6 | 4.0 | 4.7 | 4.7 |
| Package Size(mm) | 370x370x180 | 410x410x180 | 450x450x180 | 450x450x180 |
| Package Quantity(Pcs) | 1 | 1 | 1 | 1 |
| Volume weight(kg) | 4.95kg | 6.1kg | 7.3kg | 7.3kg |
Features:
1) Up to 80% Energy-saving compared to metal halide lamp, mercury-free and 100%
recyclable, energy saving and environmental protection
2) Isolated internal led driver, easy installation, safety guaranteed
3) High PF value 0.95 above and THD less 15% for decrease of electricity loss
4) Use magnalium alloy shell for good heat dissipation, the temperature of the
heat sink is less than 50℃, ensure the lifespan of the lamp
5) Up to130LM/W high light efficacy, 50000h above lifespan, 5 Years warranty, cost effective
6) No flicker, no delay, Instant on/off
7) Designed for hook type, can be directly replaced is used to quick and easy
installation to minimize retrofit and maintenance costs
8) Small size, less weight and durable is the best choice for warehouses, stadiums, exhibition
spaces, high ceiling lights.
Installation:
Application:
The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
