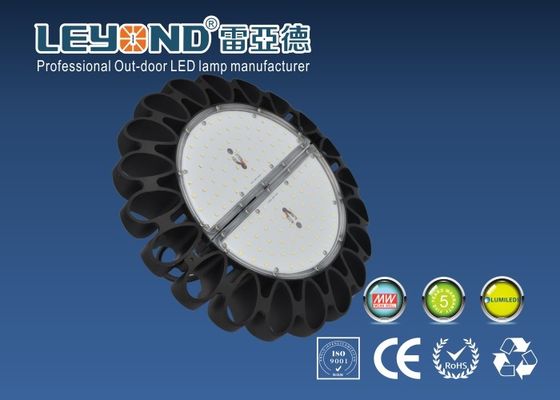

Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse

China Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier
Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse supplier

Large Image :  Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY - HB35100

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Packaging Details: 3pcs/ctn
Delivery Time: 7-10 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Item: LED UFO High Bay Lamp Power: 100W
Inptut Voltage: AC100V ~ 240V 50 / 60HZ LED Driver: Meanwell HLG
Bean Angle: 120° CRI: >80
Warranty: 5 Years Warranty Lamp Driver: Or Meanwell

Industrial Meanwell LED UFO High Bay 100W 150W 200W For WarehouseIndustrial Meanwell LED UFO High Bay 100W 150W 200W For WarehouseIndustrial Meanwell LED UFO High Bay 100W 150W 200W For WarehouseIndustrial Meanwell LED UFO High Bay 100W 150W 200W For WarehouseLighter Industrial LED UFO High Bay 100W 150W 200W Warehouse AC100V ~ 240V



Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse





Why choose UFO High Bay?



1. ) High brightness , 130lm/w



2. ) A new and comprtitive price with a cost saving of 20 % than others HighBay



3. ) SMD3030 , has excellent scattered heat emission and a low light decay



4. ) No seperately difusser compared with traditional high bay , save more space and shipping cost



Technical parameter



Par NO

LY-HB35100WW LY-HB35100NW LY-HB35100PW
Inptut voltage AC100V~240V 50/60HZ
Sysem consumption(W) ≤102 ≤102 ≤102
Light Fixture Luminance(lm) 10900 11600 12100
LED type SMD3030 SMD3030 SMD3030
LED QTY 120 120 120
System Efficiency >90% >90% >90%
Driver / MEAN WELL
Beam Angle 120° 120° 120°
CRI >80 >80 >80
Color Temperature(CREE) 2700-3200k 4000-4500k 5000-6500k
Meterial Magnesium Aluminum + PC cover
Lifespan(hrs) >50000
IP Rating IP65
Product Size(mm) Φ340X162 Φ340X162 Φ340X162
NET Weight(KG) 3.6 3.6 3.6





Dimension



Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse



Distribution Curve

Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse









Picures



Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse

Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse



Facture



Up to 80% Energy-saving compared to metal halide lamp , mercury-free and 100% recyclable,

energy saving and environmental protection



Isolated internal led driver , easy installation , safety guaranteed



High PF value 0.9 above and THD less 15% for decrease of electricity loss



Up to120LM/W high light efficacy , 50000h above lifespan , 5 Years warranty , cost effective



Power supply key components adopt world brand , No flicker , no delay , Instant on / off



Designed for hook type , can be directly replaced is used to quick and easy



Installation to minimize retrofit and maintenance costs



Small size , less weight and durable is the best choice for warehouses , stadiums , exhibition spaces , high ceiling lights.



Using imported chip , LED encapsulation structure optimization , to achieve low light failure , high photosynthetic efficiency , energy conservation and environmental protection advantages.









Application



There is widely used in Warehouse , Industrial workshops , Logistics centers , Exhibition halls , Stadiums , Docks , Golf courses , Airport , Highway toll stations , supermarkets Light engineering.







Package

  • Carton Size: 370mm×370mm×180mm
  • Net weight:3.6KG Gross weight:4.5KG



Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse







Assembly and Installation





  1. Blue : Neutral
  2. Brown : Line
  3. Yellow-Green : Ground





Installation



Step1. Ensure all power disconnected and turn off the power switch.



Step2. Knowing the inside diameter of the circular ring,then choose suitable hook for the lamp.



Step3. Fix the hook before installation and enable it to support over 3 times weight of the lamp. Connect the lamp with hook and make it safe.



Step4. Connect the input cables of lamp to power supply mains and wrap up the cables with insulated sleeve.



Step5. Switch on the power, the lamp will light on. Refer to the left figure.



In case of any abnormal phenomenon or problem, please switch off the power supply then contact with Genice customer service center.



Industrial Meanwell LED UFO High Bay 100W 150W 200W For Warehouse
