Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra

Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra
Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra

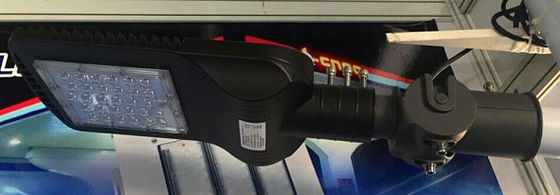

Large Image :  Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEDYOND
Certification: CE RoHS
Model Number: LY-ST20040-XX

Payment & Shipping Terms:

Minimum Order Quantity: 4
Price: Negotiable
Packaging Details: Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Detailed Product Description
Item: 30W/40W/50W /60W Streetlight 80Ra >120lm/w LED Source: 3030
Luminous: 3900lm Driver: Sosen Driver
Beam Angle: 150*70 Degree Control: Daylight Control, Motion Sensor
IP Rated: IP66
High Light:

outdoor led street light

,

led roadway lighting

Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra





LED Brand LUXEON® 3030
Driver Brand Meanwell HLG series
Norminal Wattage 40W
LED Module Quantity 1 modules
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Lamp Rated Luminous Efficiency >120lm/w
Lamp Rated Lumen output 4800 lm (Lumen tolerance +/- 5%)
Color Rendering Index Ra>75
Color Temperature 3000K,4000K,5000K,5700K
Photometric Type Type I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature 25°
Storage Temperatures -40°C~50°C
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 62,000 hours -L70, @25 ºC (77 ºF)
Wind Index Force 12
Body and Shell Materials Anodized Aluminum
IP Rating IP66 with test report
IK Rating IK10 with test report
Certification CE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM-80
Optional Function 1-10V DC or PWM Signal or Resistance Dimming

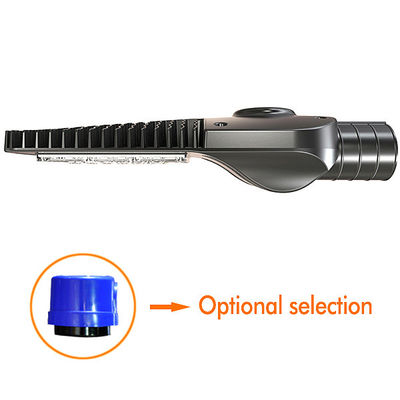

  Timer/Photocell Control
Warranty 5 years


Why choose us: Send Inquiry>>>
  • We are the Manufacturer of Led outdoor lamps.If you interested in our product,I can take you to visit our factory.
  • Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you and if you accept the sample quality,we can promise: the follow-up orders’ quality will be the same as samples.
  • About ordinary standard type of our Led lamps ,We don't set the MOQ,if your need a product is Non-standard size,need customize,we will according the product to determine the MOQ.
  • Our company also accept OEM,you can tell us your requirement,we will produce it for you
  • If the amount of money is less,you can pay it by Paypal or Alipay.Of course you can payment by TT or Western Union etc.
30W Sword LED Street Light Product Description



1) Aluminum + PC. Anti-glare lens.
2) Bridgelux chip, 3030. High luminous efficiency, > 120 LM/W;
3) Whole lamp output light efficiency>120 LM/W.
4) All leds connected in series,even one led dies out,other leds will not be affected;
5) Light facula is very uniform, no light pollution and no glare;
6) Comes with ambient light on the secondary road,the lux of secondary road is half of the main road.
7) IP66 waterproof design.
8) Modular structure, easy to do replacement and maintaining.
9) Module and whole lamp can be chosen.

Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra 0



Leyond NEW patent design 130lm/w 30W/40W/50W /60W die-casting led street light CRI 80Ra 1





Our Services:
1.Factory price, large monthly output
2. 5 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order



Factory Environment:



Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.



FAQ:



Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10 days for bulk order.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
