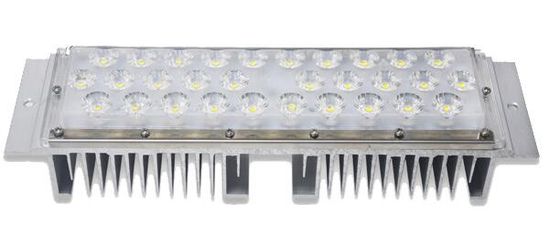

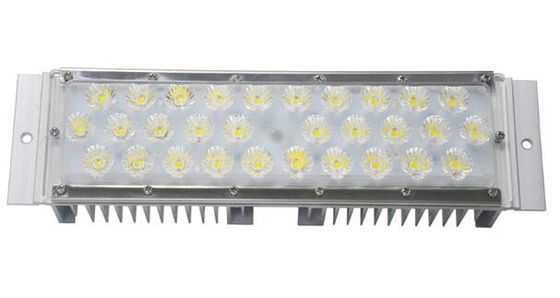

High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K

High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K
High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K

Large Image :  High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE ROHS
Model Number: LY-ST11050XX

Payment & Shipping Terms:

Minimum Order Quantity: 10Pcs
Price: 20-30USD/PC
Packaging Details: 1 Inner Carton = 1 Set Weight:0.92KG 1 Outer Carton= 20 Set Weight:21.0KG Inner Carton Size : 320mm X 85mm X 70mm Outer Carton Size : 465mm X 340mm X 325mm
Delivery Time: 7-10 Working days
Payment Terms: T/T, Western Union
Supply Ability: 100000
Detailed Product Description
Meterial: Aluminum And PC Chip: Bridgelux Chip
Luminous Efficiency: 150 Lm / W CCT: 2800-6500K
Chip Quantity: 30Pcs IP Rate: IP66
Watt: 30W/40W/50W Curve: Bat Wing Light Distribution Curve
Voltage: DC30-36V Name: IP68 Led Street Light Module
High Light:

led driver module

,

led lighting module

Bridgelux Chip Led Module External Street Light Lamp IP66 Pure Aluminum Heat Sink



High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K 0High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K 1High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K 2High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K 3

Feature:



High luminous efficiency,30W Luminous flux4285lm;Whole lamp output light effiency >150LM/W.
Unique second-time light distribution, no light pollution,no glare, noflickering.
Modular structure making the lamp more easier and faster to be designed,easy to do replacement and maintaining.A variety of combinations can multiplyincrease the brightness and illumination.
Modular concept, piece combinations as your require. Can satisfy anynumber of lanes and width combinations. With IP66 Protection, adapt to anyweather conditions.
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared(IR) Radiation: No filament and glass frames, avoid break of the traditionallamp,without harm to the human body.
The CCT of Warm white
,Neutral white,Purewhite to meet the needs of different occasions, eliminated the low colortemperature of the sodium lamp which cause the depressed mood.
CHEM module design adopts the professional optical design of free-curve-surface, fully uses the features that LED light in directionally to improve theutilization of LED maximumly under offered a space-saving of lightefficiency,and makes shines more than 80% on the road,and avoids lightpollution maximumly caused by street lights.

Item No. LY-ST11030
Dimension L300*W80*H60mm
Power 30w 40w 50w
Luminous flux 4000-6500lm
Lamp efficiency 120-150lm/w
Light source Bridgelux 45mil
Light degradation rate 25000h ≤ 30%
Color rendering index Ra>70
PF PF≥0.95
Beam angle 60° 120° 150*70
Rated life 50000h
Color temperature 3000-6000K
Working temperature -20~+50°C
Input Voltage AC85-260V
IP code IP65
Brand Leyond
Warranty 5 Years
Certificate CE, ROHS, SAA, EMC, LVD
Application garden, Outdoor,commercial etc.
Available color Black/customized
Payment terms By T.T, Western Union, L/C, etc
Pieces per carton 20pcs/ctn



Application:



Applicable to all types of road lighting: expressway, trunk road, main road, large public buildings or commercial center road, secondary road, branch, residential roads and sidewalks, and can also be used for general building, square, freight yard, landscape and other places of lighting.



New installation or replace the traditional high pressure sodium lamp, high pressure mercury lamp, and metal halide street lamps. etc.



Features:

High luminous efficiency,30W Luminous flux 4285 lm; Whole lamp output light efficiency>150LM/W.


Unique second-time light distribution, no light pollution, no glare, no flickering.


Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining. A variety of combinations can multiply increase the brightness and illumination.


Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.


Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation:


No filament and glass frames, avoid break of the traditional lamp, without harm to the human body.


The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.


The module design adopts the professional optical design of free-curve- surface, fully uses the features that LED light in directionally to improve the utilization of LED


Maximumly under offered a space-saving of light efficiency, and makes shines more than 80% on the road, and avoids light pollution maximumly caused by street lights.



Lighting Distribution:
Bat Wing light distribution curve,rectangular Facula,C90/270 direction 70°, C0/180 direction 150°

High Efficiency SMD Led Light Module Waterproof / IP68 Led Street Light Module With 2800-6500K 4

Aging test:



100% of all lamps will be tested and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures  before shipping to customer.



Factory Environment:



Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrateds and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, COB Led Spot Light&Ceiling Light,LED Hight Bay light and LED Billboard Light etc.Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.
