Product Details:
Payment & Shipping Terms:
|
| LED Chip: | 3030 Chip | Driver Brand: | Meanwell |
|---|---|---|---|
| CCT: | 2700K,3000K,4000K,4500K,5700K | CRI: | ＞70 |
| Beam Angle: | 120 Degree | Material: | Aluminum+PC Optical Lens |
| Lumens: | 18300lm | ||
| High Light: | low bay lighting,led low bay lights |
||
Specification:
| Product Model | Power | LED Quantity | Luminous Flux | Light Efficiency | CRI | CCT | Beam Angle |
| LY-HB55150-XX | 150W | 210pcs | 18300 LM | 122 LM/W | ＞70 | 2700-6500K | 120° |
| Product Model | Input Voltage | Product Size | IP Grade | Life Span | Material | Power Range |
| LY-HB55150-XX | AC100-240V | 362X291X130mm | IP50 | 50,000 hrs | Alumium+PC | 150/200/240w |
Advantages:
1) Perfect mounted in high location on warehouse/parking place/workshop,etc.

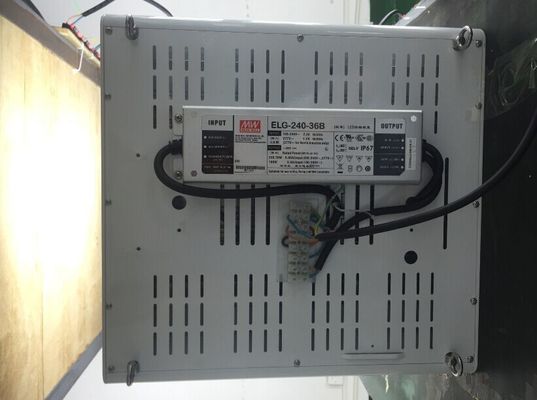

2) Lumileds chips plus Meanwell driver, UGR:18, 5 years warranty.
3) Lock catch and chain as standard equipped for installation
4) 1-10V Dimmable and microwave motion sensor both available.
Package:
• Carton Size: 450mm×400mm×210mm
• Net weight:6.6KG Gross weight:7.5KG
Installation
Quality Control:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operation and Storage Condition
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz
3) Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 5~12m height
FAQ:
