SMD 5050 High Power LED Flood Light 240W 480W for tennis court field stadium lighting

China SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting supplier
SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting supplier SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting supplier SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting supplier SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting supplier

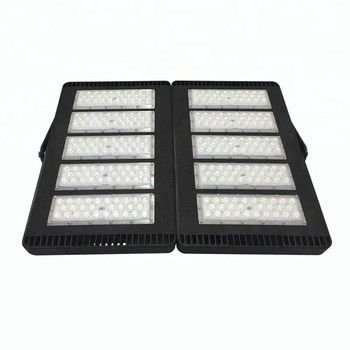

Large Image :  SMD 5050 High Power LED Flood Light 240W 480W for tennis court field stadium lighting

Product Details:

Place of Origin: GuangDong,China
Brand Name: Leyond-240W Stadium LED Flood Light
Certification: CE,ROHS
Model Number: LY-ST30240PW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 67x47x32cm, 21kg, 2pc/CTN
Delivery Time: sample:3-5working days, bulk order:10-15working days after received the payment
Payment Terms: T/T, Western Union、PayPal
Supply Ability: 20000pc/month
Contact Now
Detailed Product Description
Power: 240W LED Chip: Bridgelux 5050
Light Efficiency: 160lm/w Beam Angle: 25/60/90degree
LED Driver: Meanwell Warranty: 5 Years
IP Rating: IP65 Material: Die-cast Aluminum

SMD 5050 High Power LED Flood Light 240W 480W for tennis court field stadium lighting





Features:

1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2. There are 25°,60°, 90° beam angle options for the Lens.
3. High luminous efficiency,Whole lamp output light effiency >160LM/W.
4. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
5. World top class Meanwell Driver, 5 years warranty
6. IP65 waterproof design for outdoor application.
Model
LY-ST30240XX
Power
240W
Input Voltage
AC100-240V 50/60HZ
Luminous Flux
38400lm
CCT
WW:2700-3000K/NW:4000-4500K/PW:5000-6500K
Chip Brand
Bridgelux 5050
LED Driver
MEANWELL   HLG-240H/ELG-240
Beam Angle
25°/60°/90°
IP Rating
IP65
Warranty
5 years
SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting
SMD 5050 High Power LED Flood Light  240W 480W for tennis court field stadium lighting





Operation and Storage Condition

· Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%

· Input Voltage 100~240V AC, 50/60Hz

· Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%



Package

Inner box Size: 650mm×455mm×150mm

Outer box Size: 670mm×470mm×315mm (2 PCS)



Assembly and Installation

· Assembly-Electricity

1) AC100-240V

·  Blue : Neutral

· Brown : Line

· Yellow-Green : Ground
