New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty

Good quality High Power LED Flood Light for sales
Good quality High Power LED Flood Light for sales
The other two pictures are from yesterday evening, both courts are fitted with your lights now and everybody is happy with them, expect the electricit

—— Mr.Simon Haussmann

I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty

China New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty supplier
New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty supplier New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty supplier New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty supplier New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty supplier

Large Image :  New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY-ST12050P/WW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: 3pcs/ctn
Delivery Time: 7-10 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Item Type: LED Street Light Module Lamp Power(W): 30W/40W/45W
Lamp Luminous Flux(lm): 25500lm Lamp Body Material: Aluminum
IP: IP65 Warranty: 5 Years

New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty





Street Light Modular 5050 Series 150X70°



CCT(K)
Wattage
CRI
Voltage DC
Current DC
Luminous Efficiency
Luminous  flux
2800-3000
30W
Ra≥70
42-45V
700mA
130lm/W
3900lm
40W
900mA
155lm/W
4800lm
45W
1000mA
151lm/W
5265lm
4000-4500
30W
Ra≥70
42-45V
700mA
168lm/W
4050lm
40W
900mA
160lm/W
5040lm
45W
1000mA
156lm/W
5490lm
5000-5500
30W
Ra≥70
42-45V
700mA
172lm/W
4200lm
40W
900mA
163lm/W
6520lm
45W
1000mA
160lm/W
7200lm
6000-6500
30W
Ra≥70
42-45V
700mA
176lm/W
5280lm
40W
900mA
167lm/W
6680lm
45W
1000mA
162lm/W
7290lm



Product Dimension
300*78*42MM
IP Rating
IP66
Working Life
50000H
Working Temperature
-30℃ ~ +50℃
Storage Temperature
-10℃ ~ +85℃
Working Humidity
10%~90%
Beam Angle
150X70°

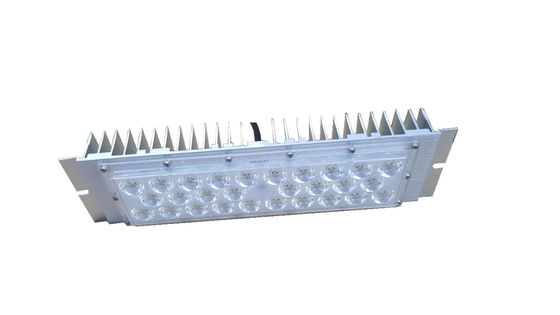

Outlook:

New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty



Photometry (Polar Diagram of Luminance) 150X70 DEG





New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty





Photometry(AAI Figure)

New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty

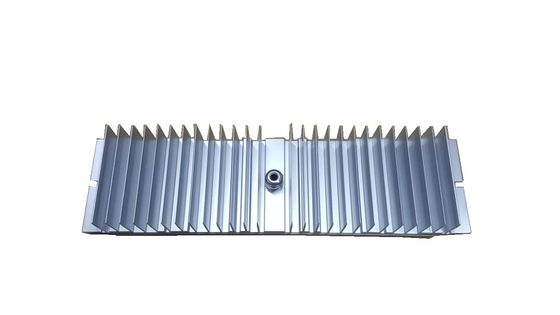

Heatsink



6063 aluminum heatsink.



Fin heat sink to ensure maximum heat transfer

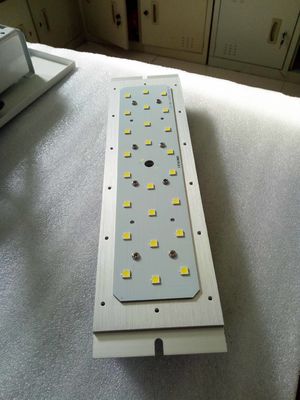

LED & Optical Assembly



Precision refractive optical lens special designed for road lighting.



Utilizes high brightness leds , 70 CRI at  5000-6000K



Modular LED Light Advantages:



  • Convection heat radiation design, deduce light decay and prelong life span, CHEM module, easy replacing.High luminous efficiency
  • 24PCS SMD 5050 LED inside,High efficiency.
  • Adoption patent optical lens with high light transmittance up to 98%,No glare,No RF interference.
  • Excellent heat dissipation design.
  • Easy to assemble and costs less for replacing.
  • Total Lumen 8400-8500LM,lumens efficiency is up to 150/W..
  • Convection heat dissipation system ensure LED long life span.
  • Several led chips available, easy selection with your goal.
  • Unique aluminium heatsink greatly reduce product weight and guarantee the safety usage,
  • This new heatsink significantly increase the efficiency of  thermal conduction with less material usage and more saving on energy. It is the best solution of LED street light.

New Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warrantyNew Aluminum heatsink 170lm/w LED Street Light Module light 50w with 5 years warranty



Trade terms



Payment: T/T, western Union or Paypal
Shipping: By Express(EMS, DHL, UPS etc), By Air or By Sea
Delivery time: 7-15 working days for normal orders.
Port: Shenzhen, China



Our service
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area, ideas of design and all your private information.





If any interest, welcome to contact us for details talking.


Contact :Ella Zhang
Mob&Whatsapp:+86 136 3289 5220
TEL: 0086- (0)755-29816150
FAX: 0086-(0)755-29816585
Skype:lysales-25
Mail: sales08(at)leyond.com.cn
Site: www.leyond.com.cn
