high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light

China high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier
high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light supplier

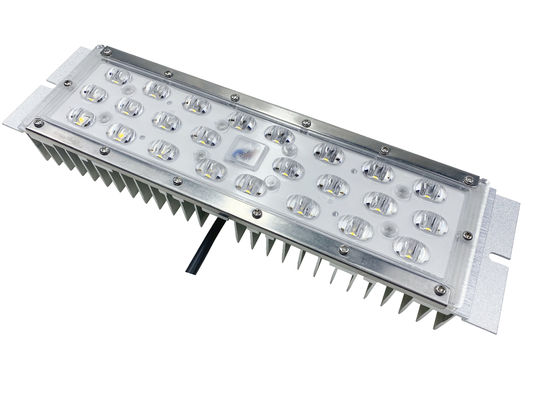

Large Image :  high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY-ST12050P/WW

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: 3pcs/ctn
Delivery Time: 7-10 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Item Type: LED Street Light Module Lamp Power(W): 30W/40W/45W
Lamp Luminous Flux(lm): 25500lm Lamp Body Material: Aluminum
IP: IP65 Warranty: 5 Years

High quality new module patent style ip65 waterproof 30W 40W 45W led module for street light

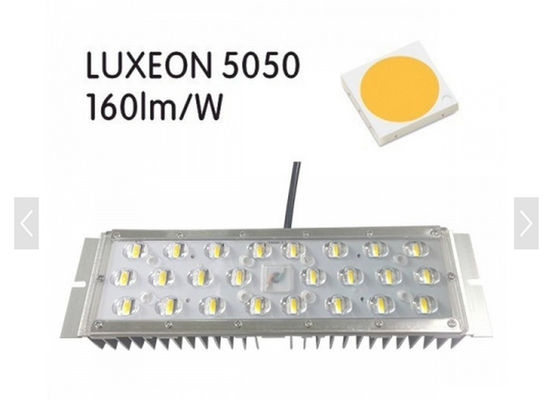

Street Light Modular 5050 Series 150X70°



1. High luminous efficiency,30W Luminous flux5100lm; Whole lamp output light efficiency >170LM/W.


2. Unique second-time light distribution, no light pollution,no glare, no flickering.


3. Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.


4. Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.


5. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.


6. The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.



CCT(K)
Wattage
CRI
Voltage DC
Current DC
Luminous Efficiency
Luminous  flux
2800-3000
30W
Ra≥70
42-45V
700mA
130lm/W
3900lm
40W
900mA
155lm/W
4800lm
45W
1000mA
151lm/W
5265lm
4000-4500
30W
Ra≥70
42-45V
700mA
168lm/W
4050lm
40W
900mA
160lm/W
5040lm
45W
1000mA
156lm/W
5490lm
5000-5500
30W
Ra≥70
42-45V
700mA
172lm/W
4200lm
40W
900mA
163lm/W
6520lm
45W
1000mA
160lm/W
7200lm
6000-6500
30W
Ra≥70
42-45V
700mA
176lm/W
5280lm
40W
900mA
167lm/W
6680lm
45W
1000mA
162lm/W
7290lm



Product Dimension
300*78*42MM
IP Rating
IP66
Working Life
50000H
Working Temperature
-30℃ ~ +50℃
Storage Temperature
-10℃ ~ +85℃
Working Humidity
10%~90%
Beam Angle
150X70°

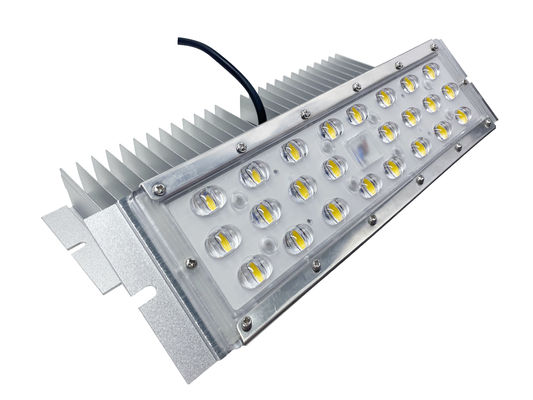

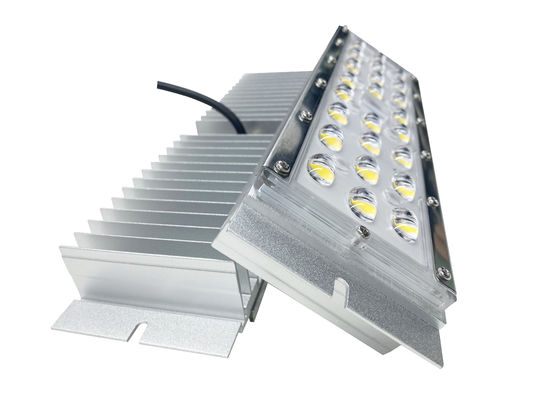

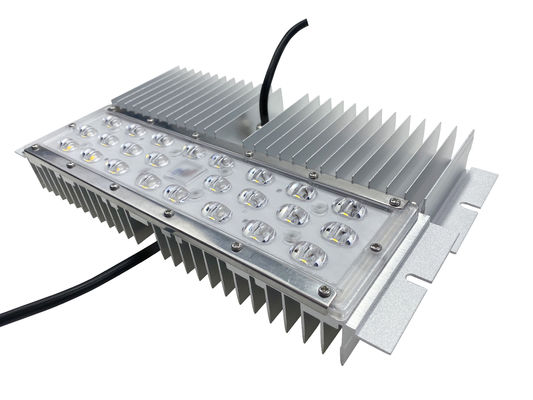

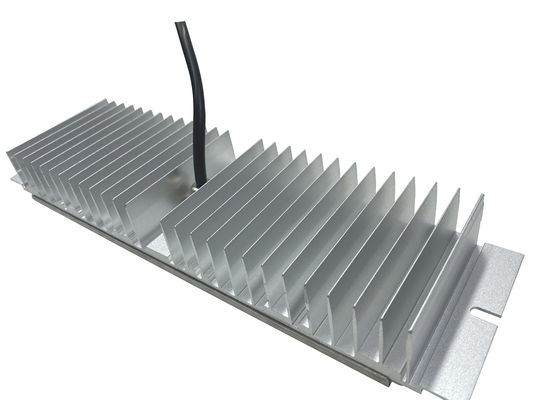

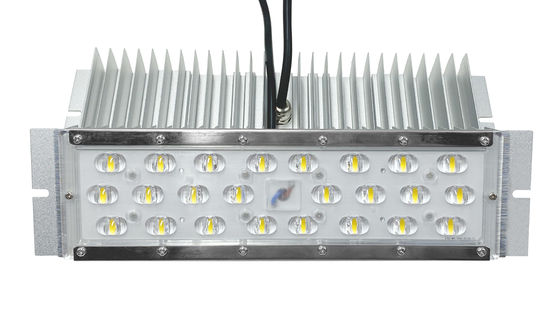

Outlook:

high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light





high quality new module patent style ip65 waterproof 30W 40W 45W led module for street lighthigh quality new module patent style ip65 waterproof 30W 40W 45W led module for street light

high quality new module patent style ip65 waterproof 30W 40W 45W led module for street light

Package

·1 Inner Carton = 2 Set Weight:1.2KG

·1 Outer Carton= 40 Set Weight:25.0KG

·Inner Carton Size : 306mm X 83mm X 67mm

·Outer Carton Size : 365mm X 322mm X 354mm
